Digital Rockwell Hardness Tester (Heightening Type) HRS-150L, Large Sample Hardness Test Machine

China Digital Rockwell Hardness Tester (Heightening Type) HRS-150L, Large Sample Hardness Test Machine supplier
Digital Rockwell Hardness Tester (Heightening Type) HRS-150L, Large Sample Hardness Test Machine supplier Digital Rockwell Hardness Tester (Heightening Type) HRS-150L, Large Sample Hardness Test Machine supplier

Large Image :  Digital Rockwell Hardness Tester (Heightening Type) HRS-150L, Large Sample Hardness Test Machine

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: HRS-150L

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Digital Rockwell Hardness Tester (Heightening Type) HRS-150L, Large Sample Hardness Test Machine Loading Method: Automatic (Loading/Dwell/Unloading)
Hardness Reading: LCD Screen Display Data Output: Built-in Printer,RS232 Interface
Resolution: 0.1HR Max. Height Of Specimen: 400mm



Digital Rockwell Hardness Tester (Heightening Type)

HRS-150L, Large Sample Hardness Test Machine

Digital Rockwell Hardness Tester (Heightening Type) HRS-150L, Large Sample Hardness Test Machine




Digital Rockwell Hardness Tester (Heightening Type) HRS-150L, Large Sample Hardness Test Machine

Digital Rockwell Hardness Tester (Heightening Type) HRS-150L, Large Sample Hardness Test Machine

Digital Rockwell Hardness Tester (Heightening Type) HRS-150L, Large Sample Hardness Test Machine





Main Function:



HRS-150L Digital Rockwell hardness tester is equipped with a newly-designed large displaying



screen with good reliability, excellent operation and easy watching, thus it is a high-tech product



combining the mechanic and electric features. It can show and set the present scale, test force,



test indenter, dwell time and hardness conversion; the main function is as follows: Selection of all



the Rockwell scales; Conversion scales of different kinds of hardness; Test results can be saved



and printed out, automatic calculation of maximum, minimum and average value; With RS232



interface for connecting to the computer. This is the heightening type which is more convenient for



measuring the large samples.



Application range:

Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable



cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.



Technical Specification:

Model



HRS-150L



Initial Test Force



10kgf (98.07N)



Total Test Force



60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)



Indenter



Diamond Rockwell Indenter, ф1.588mmBall Indenter



Loading Method



Automatic (Loading/Dwell/Unloading)



Hardness Reading



LCD Screen Display



Test Scale



HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV



Conversion Scale



HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW



Data Output



Built-in Printer,RS232 Interface



Resolution



0.1HR



Dwell Time



0~60s



Max. Height of Specimen



400mm



Throat



165mm



Power Supply



AC220V,50Hz



Execute Standard



ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2



Dimension



500×200×880mm,Packing Dimension: 650×370×1140mm



Weight



Net Weight: 98kg,Gross Weight: 120kg







Packing List:



Name



Qty Name Qty



Instrument Main Body



1 set Diamond Rockwell Indenter 1 pc



ф1.588mmBall Indenter



1 pc Middle Plane Test Table 1 pc



Large Plane Test Table



1 pc V-shaped Test Table 1 pc

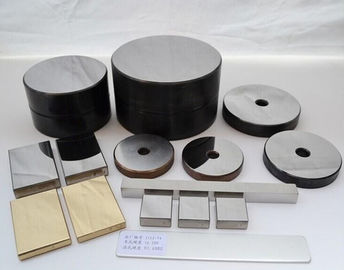

Hardness Block 60~70 HRC



1 pc Hardness Block 20~30 HRC 1 pc



Hardness Block 80~100 HRB



1 pc Weight A, B, C 3 pcs



Power Cable



1 pc Fuse 2A 2 pcs



Level



1 pc Horizontal Regulating Screw 4 pcs



Screw Driver



1 pc Spanner 1 pc



Anti-dust Cover



1 pc Usage Instruction Manual 1 copy
