SRT110 Digital Surface roughness tester, Portable surface roughness gage, Surface testing machine

China SRT110 Digital Surface roughness tester, Portable surface roughness gage, Surface testing machine supplier
SRT110 Digital Surface roughness tester, Portable surface roughness gage, Surface testing machine supplier SRT110 Digital Surface roughness tester, Portable surface roughness gage, Surface testing machine supplier

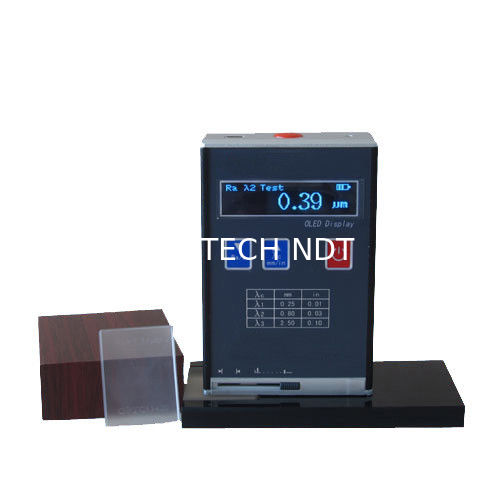

Large Image :  SRT110 Digital Surface roughness tester, Portable surface roughness gage, Surface testing machine

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: SRT110

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Digital Surface Roughness Tester, Portable Surface Roughness Gage, Surface Testing Machine Testing Parameters: Ra,Rz,Rq,Rt
Stroke Length(mm): 6 Sample Length(mm): 0.25 ,0.80 ,2.50
Evaluation Length(mm): 1.25 ,4.0, 5.0 Weight: 200g

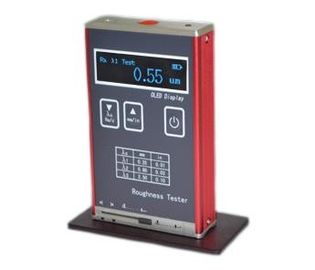

SRT110 Digital Surface roughness tester, Portable surface



roughness gage, Surface testing machine



SRT110 Digital Surface roughness tester, Portable surface roughness gage, Surface testing machine



Introduction



SRT110 has the features of high accuracy, wide measuring range, easy to operate, portable,



working stably features. It is widely used at inspecting the processing surface of many kinds of



metals and non-metal.





Features



Optimized electric circuit design with transducer structure design, high integrate power, driver



and display. Select freely with Ra,Rz,Rq,Rt parameters. It could test excircle, flat surface, conical



surface and also test groove with length and width larger than 80*30mm.





Functions



1.     Metal case, stronger and anti-electromagnetic interference



2.     Adapts high speed DSP processor to get fast reaction



3.     OLED color display, high light, no visual angle and wide temperature, could be used at each



workplace



4.     Li rechargeable battery, which could continuously work for long time and long life



5.     USB port for connecting with PC or charging



6.     LCD display to provide more information



7.     Battery power shown



8.     Auto power off and low power consumption design



9.     Transducer has production gate to guarantee the accuracy of testing





Specifications



Testing parameters(µm ): Ra,Rz,Rq,Rt



Stroke length(mm): 6



Sample length(mm): 0.25 ,0.80 ,2.50



Evaluation length(mm): 1.25 ,4.0, 5.0



Measuring range(µm ):



Ra, Rq: 0.05 ~ 15.0



Rz, Rt: 0.1 ~ 50.0



Error: ±(7-10)%



Variablity: <12%



Transducer contacting pin round diameter and angle:



Contacting pin round diameter: 10 µm±1 µm



Degree: 90°(+5°/ -10°)



Battery: 3.7V Li



Size: 106 mm×70 mm×24 mm



Weight: 200g



Working conditions:



Temperature: -20°C~40°C



Relative humidity: < 90%



No shake and corrosivity around





Standard package



NO.

Name

Qty

1

Main unit

1

2

Transducer

1

3

Batteries

1

4

Charger

1

5

Standard Test Block

1

6

Operation Manual

1

7

Certificate of approval

1

8

Instrument case

1
