Plastics Rockwell Hardness Tester XHR-150, Hard Rubbers Hardness Tester, Initial Test Force 10kgf

Certification
Good quality X Ray Flaw Detector for sales
Good quality X Ray Flaw Detector for sales
Easy to talk with, very professional and fast service, the quality is super good.

—— Ali Sharif

I'm Online Chat Now

Plastics Rockwell Hardness Tester XHR-150, Hard Rubbers Hardness Tester, Initial Test Force 10kgf

China Plastics Rockwell Hardness Tester XHR-150, Hard Rubbers Hardness Tester, Initial Test Force 10kgf supplier
Plastics Rockwell Hardness Tester XHR-150, Hard Rubbers Hardness Tester, Initial Test Force 10kgf supplier Plastics Rockwell Hardness Tester XHR-150, Hard Rubbers Hardness Tester, Initial Test Force 10kgf supplier

Large Image :  Plastics Rockwell Hardness Tester XHR-150, Hard Rubbers Hardness Tester, Initial Test Force 10kgf

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: XHR-150

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Plastics Rockwell Hardness Tester XHR-150, Hard Rubbers Hardness Tester, Initial Test Force 10kgf Loading Method: Automatic (Loading/Dwell/Unloading)
Hardness Reading: Dial Resolution: 0.5HR
Dwell Time: 2~60s Power Supply: AC220V,50Hz


Plastics Rockwell Hardness Tester XHR-150, Hard Rubbers

Hardness Tester, Initial Test Force 10kgf

Plastics Rockwell Hardness Tester XHR-150, Hard Rubbers Hardness Tester, Initial Test Force 10kgf


Plastics Rockwell Hardness Tester XHR-150, Hard Rubbers Hardness Tester, Initial Test Force 10kgf
Plastics Rockwell Hardness Tester XHR-150, Hard Rubbers Hardness Tester, Initial Test Force 10kgf
Plastics Rockwell Hardness Tester XHR-150, Hard Rubbers Hardness Tester, Initial Test Force 10kgf

Main Function:

XHR-150 Plastics Rockwell hardness tester adopts the mechanism of automatic loading and

unloading of the test force, the test force is regulated by the load-change hand wheel. It can select

the dwell time and is very easy to use. Besides setting zero to dial, there is no man-made error.

The instrument has high sensitivity and stability.


Application range:

Suitable for hard plastics, hard rubbers, aluminum, tin, copper, soft steel, synthetic resins and

fricative materials etc.

Technical Specification:



Model


XHR-150


Initial Test Force


10kgf (98.07N)


Total Test Force


60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)


Indenter


Ф3.175mmBall Indenter, Ф6.35mmBall Indenter, Ф12.7mmBall Indenter


Loading Method


Automatic (Loading/Dwell/Unloading)


Hardness Reading


Dial


Resolution


0.5HR


Dwell Time


2~60s


Max. Height of
Specimen


175mm


Throat


165mm


Power Supply


AC220V,50Hz


Execute Standard


ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2


Dimension


520×215×700mm,Packing Dimension: 650×370×950mm


Weight


Net Weight: 78kg,Gross Weight: 100kg



Packing List:



Name


QtyNameQty


Instrument Main Body


1 setФ3.175mmBall Indenter1 pc


Ф6.35mmBall Indenter


1 pcФ12.7mmBall Indenter1 pc


Middle Plane Test Table


1 pcLarge Plane Test Table1 pc


V-shaped Test Table

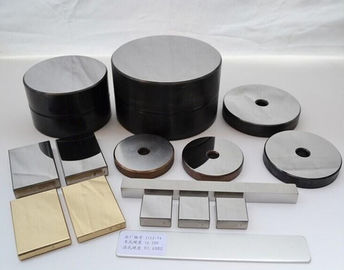

1 pcHardness Block 75~85 HRE1 pc


Hardness Block 110~120
HRL


1 pcHardness Block 100~110 HRM1 pc


Hardness Block 115~125 HRR


1 pcWeight A, B, C3 pcs


Power Cable


1 pcFuse 2A2 pcs


Level


1 pcHorizontal Regulating Screw4 pcs


Screw Driver


1 pcSpanner1 pc


Anti-dust Cover


1 pcUsage Instruction Manual1 copy
