Digital Touch Screen Rockwell Hardness Tester HRS-150C, Built-in Printer, RS232 Interface

Certification
Good quality X Ray Flaw Detector for sales
Good quality X Ray Flaw Detector for sales
Easy to talk with, very professional and fast service, the quality is super good.

—— Ali Sharif

I'm Online Chat Now

Digital Touch Screen Rockwell Hardness Tester HRS-150C, Built-in Printer, RS232 Interface

China Digital Touch Screen Rockwell Hardness Tester HRS-150C, Built-in Printer, RS232 Interface supplier
Digital Touch Screen Rockwell Hardness Tester HRS-150C, Built-in Printer, RS232 Interface supplier Digital Touch Screen Rockwell Hardness Tester HRS-150C, Built-in Printer, RS232 Interface supplier

Large Image :  Digital Touch Screen Rockwell Hardness Tester HRS-150C, Built-in Printer, RS232 Interface

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: HRS-150C

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Digital Touch Screen Rockwell Hardness Tester HRS-150C, Built-in Printer, RS232 Interface Initial Test Force: 10kgf (98.07N)
Total Test Force: 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) Indenter: Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method: Automatic (Loading/Dwell/Unloading) Hardness Reading: Touch Screen Display



Digital Touch Screen Rockwell Hardness Tester HRS-150C,

Built-in Printer, RS232 Interface

Digital Touch Screen Rockwell Hardness Tester HRS-150C, Built-in Printer, RS232 Interface


Digital Touch Screen Rockwell Hardness Tester HRS-150C, Built-in Printer, RS232 Interface
Digital Touch Screen Rockwell Hardness Tester HRS-150C, Built-in Printer, RS232 Interface
Digital Touch Screen Rockwell Hardness Tester HRS-150C, Built-in Printer, RS232 Interface



Main Function:

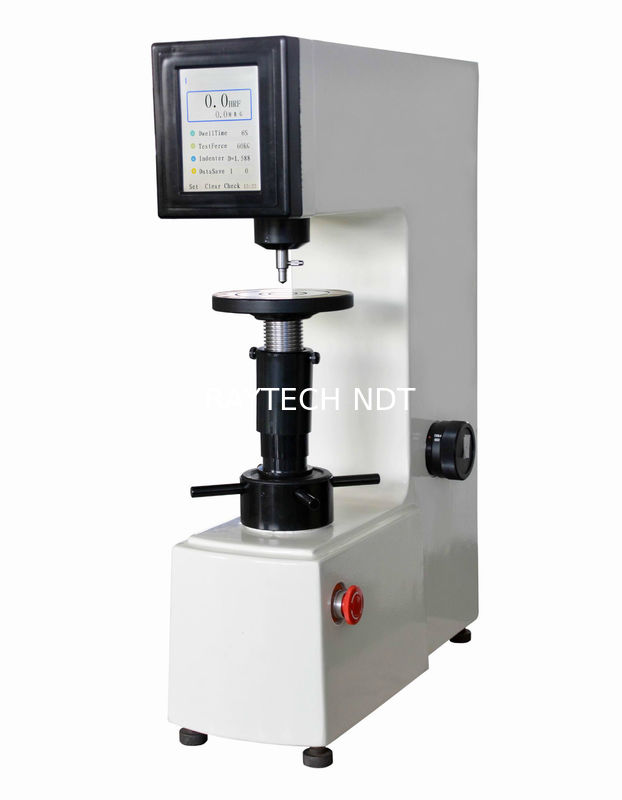

HRS-150C Digital Rockwell hardness tester adopts the high resolution color touch screen with



high brightness display. It has a good reliability, excellent operation and easy watching, so it is a



high-tech product combining the mechanic and electric features. It can show and set the present



scale, test force, test indenter, dwell time and hardness conversion; the main function is as



follows: Selection of all the Rockwell scales; Conversion scales of different kinds of hardness;



Display backlight adjustable with energy-saving mode; Real time data saving in the folder, totally



six folders, the data can be arbitrary copied, cut, deleted, pasted; the hardness scale, data range



and the remarks can be selective displayed, similar to Excel function; Test results can be saved



in real time and can be selective checked and printed out, automatic calculation of maximum,



minimum and average value; Increase the operation process interface, easy to use; With RS232



interface for connecting to the computer.



Application range:



Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable



cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.





Technical Specification:



Model



HRS-150C



Initial Test Force



10kgf (98.07N)



Total Test Force



60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)



Indenter



Diamond Rockwell Indenter, ф1.588mmBall Indenter



Loading Method



Automatic (Loading/Dwell/Unloading)



Hardness Reading



Touch Screen Display



Test Scale



HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV



Conversion Scale



HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW



Data Output



Built-in Printer,RS232 Interface



Resolution



0.1HR



Dwell Time



0~60s



Max. Height of Specimen



175mm



Throat



165mm



Power Supply



AC220V,50Hz



Execute Standard



ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2



Dimension



520×215×700mm,Packing Dimension: 650×370×950mm



Weight



Net Weight: 78kg,Gross Weight: 100kg







Packing List:





Name



Qty Name Qty



Instrument Main Body



1 set Diamond Rockwell Indenter 1 pc



ф1.588mmBall Indenter



1 pc Middle Plane Test Table 1 pc



Large Plane Test Table



1 pc V-shaped Test Table 1 pc

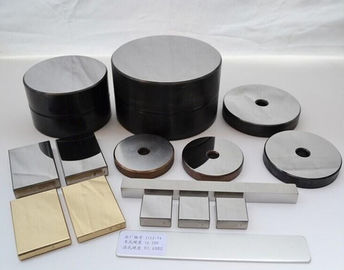

Hardness Block 60~70 HRC



1 pc Hardness Block 20~30 HRC 1 pc



Hardness Block 80~100 HRB



1 pc Weight A, B, C 3 pcs



Power Cable



1 pc Fuse 2A 2 pcs



Level



1 pc Horizontal Regulating Screw 4 pcs



Screw Driver



1 pc Spanner 1 pc



Anti-dust Cover



1 pc Usage Instruction Manual 1 copy
