Digital Plastics Rockwell Hardness Tester, Desktop Hardness Testing Equipment XHRS-150

Certification
Good quality X Ray Flaw Detector for sales
Good quality X Ray Flaw Detector for sales
Easy to talk with, very professional and fast service, the quality is super good.

—— Ali Sharif

I'm Online Chat Now

Digital Plastics Rockwell Hardness Tester, Desktop Hardness Testing Equipment XHRS-150

China Digital Plastics Rockwell Hardness Tester, Desktop Hardness Testing Equipment XHRS-150 supplier
Digital Plastics Rockwell Hardness Tester, Desktop Hardness Testing Equipment XHRS-150 supplier Digital Plastics Rockwell Hardness Tester, Desktop Hardness Testing Equipment XHRS-150 supplier

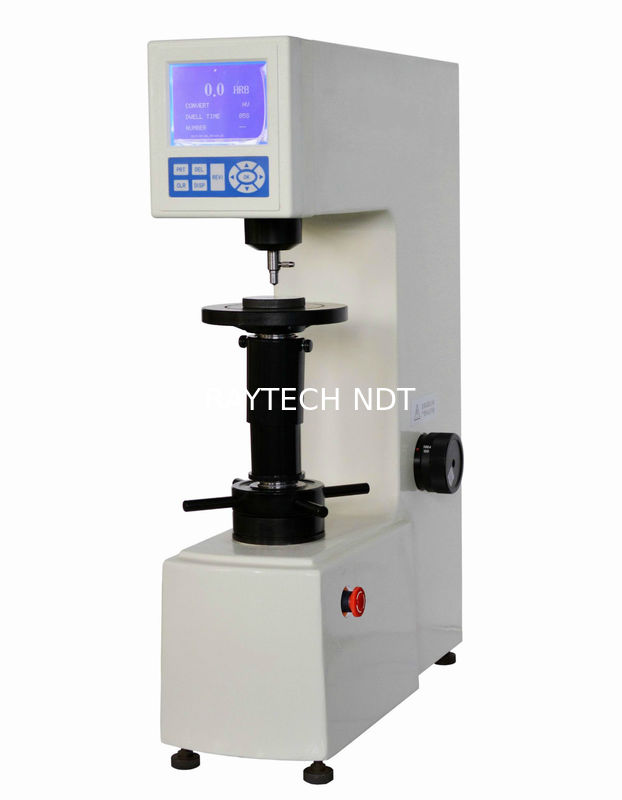

Large Image :  Digital Plastics Rockwell Hardness Tester, Desktop Hardness Testing Equipment XHRS-150

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: XHRS-150

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Digital Plastics Rockwell Hardness Tester, Desktop Hardness Testing Equipment XHRS-150 Initial Test Force: 10kgf (98.07N)
Total Test Force: 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) Indenter: Ф3.175mmBall Indenter, Ф6.35mmBall Indenter, Ф12.7mmBall Indenter
Loading Method: Automatic (Loading/Dwell/Unloading) Resolution: 0.1HR




Digital Plastics Rockwell Hardness Tester, Desktop Hardness



Testing Equipment XHRS-150



Digital Plastics Rockwell Hardness Tester, Desktop Hardness Testing Equipment XHRS-150



Digital Plastics Rockwell Hardness Tester, Desktop Hardness Testing Equipment XHRS-150

Digital Plastics Rockwell Hardness Tester, Desktop Hardness Testing Equipment XHRS-150

Digital Plastics Rockwell Hardness Tester, Desktop Hardness Testing Equipment XHRS-150





Main Function:



XHRS-150 Digital plastics Rockwell hardness tester is equipped with a newly-designed large



displaying screen with good reliability, excellent operation and easy watching, thus it is a high-



tech product combining the mechanic and electric features. It can show and set the present scale,



test force, test indenter, dwell time and hardness conversion; the main function is as follows:



Selection of all the plastics Rockwell scales; Conversion scales of different kinds of hardness;



Test results can be saved and printed out, automatic calculation of maximum, minimum and



average value; With RS232 interface for connecting to the computer.







Application range:



Suitable for hard plastics, hard rubbers, aluminum, tin, copper, soft steel, synthetic resins and



fricative materials etc.



Technical Specification:



Model



XHRS-150



Initial Test Force



10kgf (98.07N)



Total Test Force



60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)



Indenter



Ф3.175mmBall Indenter, Ф6.35mmBall Indenter, Ф12.7mmBall Indenter



Loading Method



Automatic (Loading/Dwell/Unloading)



Hardness Reading



LCD Screen Display



Test Scale



HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV



Conversion Scale



HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW



Data Output



Built-in Printer,RS232 Interface



Resolution



0.1HR



Dwell Time



0~60s



Max. Height of Specimen



175mm



Throat



165mm



Power Supply



AC220V,50Hz



Execute Standard



ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2



Dimension



520×215×700mm,Packing Dimension: 650×370×950mm



Weight



Net Weight: 78kg,Gross Weight: 100kg









Packing List:







Name



Qty Name Qty

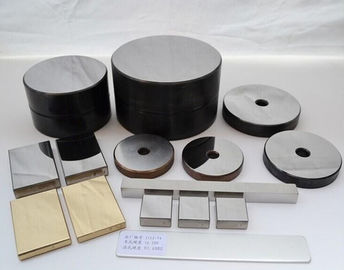

Instrument Main Body



1 set Ф3.175mmBall Indenter 1 pc



Ф6.35mmBall Indenter



1 pc Ф12.7mmBall Indenter 1 pc



Middle Plane Test Table



1 pc Large Plane Test Table 1 pc



V-shaped Test Table



1 pc Hardness Block 75~85 HRE 1 pc



Hardness Block 110~120 HRL



1 pc Hardness Block 100~110 HRM 1 pc



Hardness Block 115~125 HRR



1 pc Weight A, B, C 3 pcs



Power Cable



1 pc Fuse 2A 2 pcs



Level



1 pc Horizontal Regulating Screw 4 pcs



Screw Driver



1 pc Spanner 1 pc



Anti-dust Cover



1 pc Usage Instruction Manual 1 copy
