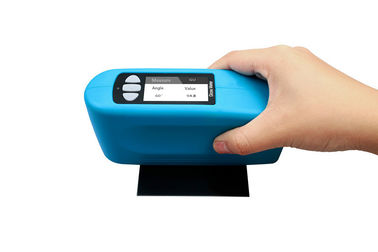

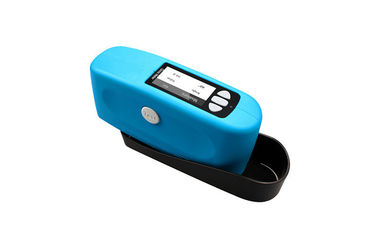

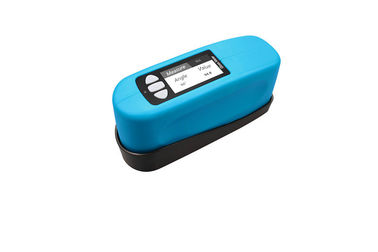

RG60A Digital precision Gloss Meter, measure range 0-1000Gu, single gloss meter

I'm Online Chat Now

RG60A Digital precision Gloss Meter, measure range 0-1000Gu, single gloss meter

China RG60A Digital precision Gloss Meter, measure range 0-1000Gu, single gloss meter supplier

Large Image :  RG60A Digital precision Gloss Meter, measure range 0-1000Gu, single gloss meter

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: RG60A

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Detailed Product Description
Product Name: Digital Precision Gloss Meter, Measure Range 0-1000Gu, Single Gloss Meter Measuring Angle: 60
Measuring Range: 0-1000 Measuring Spot: 9*15mm
Volume: 159x49x72 Weight: 500g



RG60A Digital precision Gloss Meter, measure range



0-1000Gu, single gloss meter



RG60A Digital precision Gloss Meter, measure range 0-1000Gu, single gloss meter







 RG60A gloss meter is produced according to the national verification regulation of JJG696 standard,



adopt long life light source, good repeatability, small volume, high precision and good stability. It is mainly

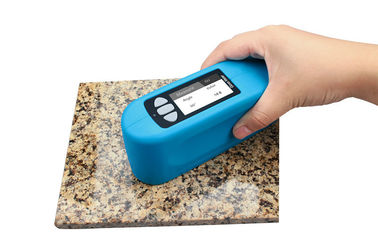

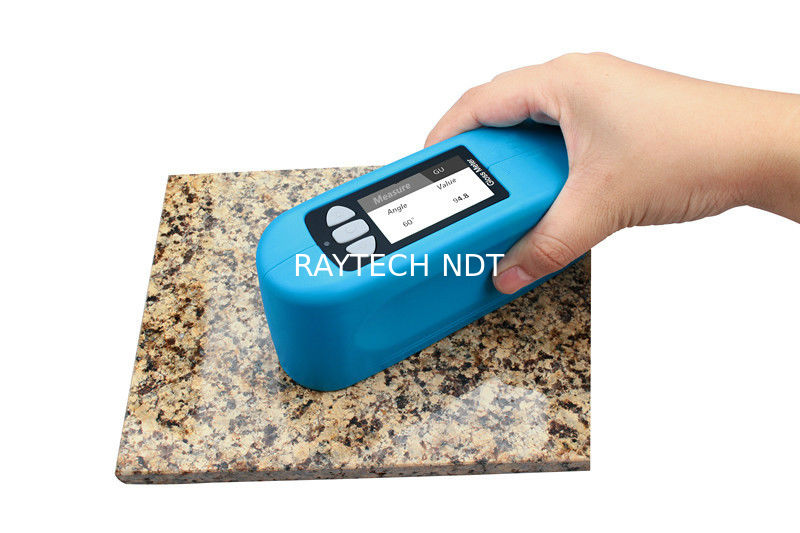

used on coatings, printing ink, paint, paint, wood, marble,granite, polishing brick, brick of pottery and



porcelain, plastic, paper, metal and non-metallic materials. RG60A for RG60G upgrade, more stable



performance, more durable, more comfortable;





Gloss Meter RG60A function Description



(1) One button to complete measurement: one operation can complete measurement; Measuring light



incident angle meet ISO 2813 three measuring light incident angle.



(2) Manually entering standard samples gloss data;



(3) Humanized design, good man-machine communication interface;



(4) Single angle can store 10000 testing records, storage structure is: 100 prototypes, each prototype



with 100 testing data;



(6) Data browsing and viewing function;



(7) The machine has automatic shutdown function, low power warning functions, full data storage hint



functions;



(8) USB communication interface to communicate with PC;



(9) PC software can be extended more functions.





Attachment Description



(1) Power adapter: standard + 5V, 2A external power supply;

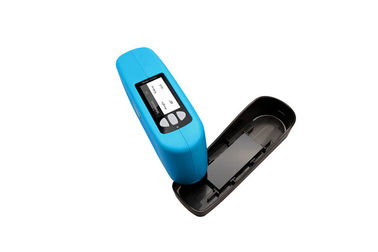

(2) Standard board: provide calibration criterion.



(3) USB cable: connect instrument to PC.







RG60A specification







Specification



Unit

Single Gloss Meter

Triangle Gloss Meter



Measuring Angle



degree

60°

20° 60° 85°

Measuring Range

GU



60°: 0-1000



20°: 0-2000

60°: 0-1000

85°: 0-160

Measuring Spot

mm



   60°: 9x15



20°: 10x10

    60°: 9x15

    85°: 5x18



Division Value



GU

0-1000: 0.1 1000-2000: 1

0-1000:0.1  1000-2000:1



Repeatability



GU

0-100:0.2 >100:0.2%

0-100:0.2 >100:0.2%



Indication Error



GU

±1.5

±1.5



Zero Error



GU

0.2

0.2



Working Temperature



10℃ - 40℃

10℃ - 40℃



Storage Temperature



-10℃ - 70℃

-10℃ - 70℃



Humidity Range





Relative humidity less than 85%, without condensation

Relative humidity less than 85%, without condensation



Power Adapter





Section 2 5 alkaline batteries/power adapter

Section 2 5 alkaline batteries/ power adapter



Volume



mm

159x49x72

159x49x72



Weight



g

500

500
