Digital Double Rockwell Hardness Tester, Steel and Surface Rockwell Hardness Tester 560RSS

China Digital Double Rockwell Hardness Tester, Steel and Surface Rockwell Hardness Tester 560RSS supplier
Digital Double Rockwell Hardness Tester, Steel and Surface Rockwell Hardness Tester 560RSS supplier Digital Double Rockwell Hardness Tester, Steel and Surface Rockwell Hardness Tester 560RSS supplier

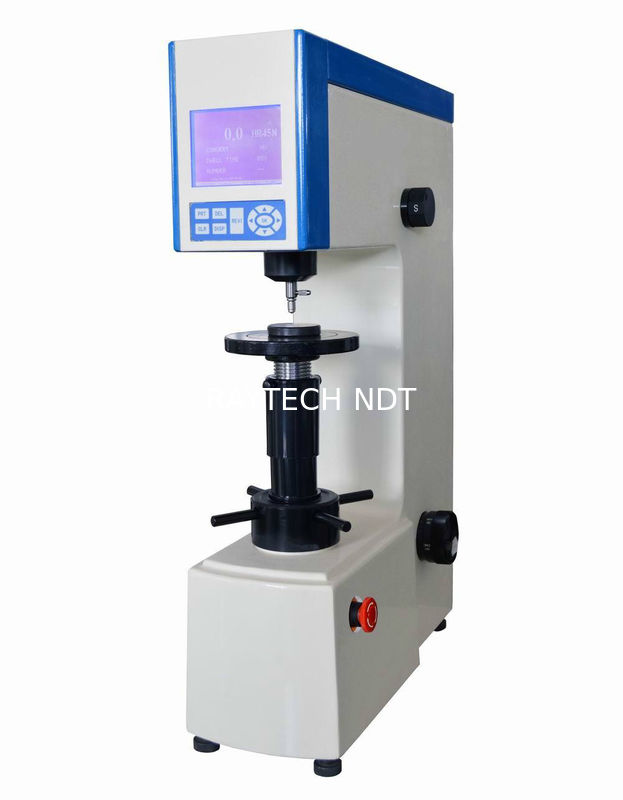

Large Image :  Digital Double Rockwell Hardness Tester, Steel and Surface Rockwell Hardness Tester 560RSS

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: 560RSS

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Digital Double Rockwell Hardness Tester, Steel And Surface Rockwell Hardness Tester 560RSS Initial Test Force: 3kgf (29.42N), 10kgf (98.07N)
Total Test Force: 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) Loading Method: Automatic (Loading/Dwell/Unloading)
Hardness Reading: LCD Screen Display Data Output: Built-in Printer RS232 Interface




Digital Double Rockwell Hardness Tester, Steel and Surface



Rockwell Hardness Tester 560RSS





Digital Double Rockwell Hardness Tester, Steel and Surface Rockwell Hardness Tester 560RSS



Digital Double Rockwell Hardness Tester, Steel and Surface Rockwell Hardness Tester 560RSS

Digital Double Rockwell Hardness Tester, Steel and Surface Rockwell Hardness Tester 560RSS

Digital Double Rockwell Hardness Tester, Steel and Surface Rockwell Hardness Tester 560RSS



Main Function:



560RSS Digital double Rockwell hardness tester is equipped with a newly-designed large



displaying screen with good reliability, excellent operation and easy watching, thus it is a high-



tech product combining the mechanic and electric features. It can show and set the present scale,



test force, test indenter, dwell time and hardness conversion; the main function is as follows:



Selection of all the Rockwell and superficial Rockwell scales; Conversion scales of different kinds



of hardness; Test results can be saved and printed out, automatic calculation of maximum,



minimum and average value; With RS232 interface for connecting to the computer.





Application range:



Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable



cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for



surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers,



chrome layers, tin layers etc.



Technical Specification:



Model



560RSS



Initial Test Force



3kgf (29.42N), 10kgf (98.07N)



Total Test Force



15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N),

60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)



Indenter



Diamond Rockwell Indenter, ф1.588mmBall Indenter



Loading Method



Automatic (Loading/Dwell/Unloading)



Hardness Reading



LCD Screen Display



Test Scale



HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV

HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y



Conversion Scale



HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW



Data Output



Built-in Printer,RS232 Interface



Resolution



0.1HR



Dwell Time



0~60s



Max. Height of Specimen



175mm



Throat



165mm



Power Supply



AC220V,50Hz



Execute Standard



ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2



Dimension



520×215×740mm,Packing Dimension: 650×370×980mm



Weight



Net Weight: 80kg,Gross Weight: 100kg









Packing List:







Name



Qty Name Qty



Instrument Main Body



1 set Diamond Rockwell Indenter 1 pc



ф1.588mmBall Indenter



1 pc Middle Plane Test Table 1 pc



Large Plane Test Table



1 pc V-shaped Test Table 1 pc



Hardness Block 60~70 HRC



1 pc Hardness Block 20~30 HRC 1 pc



Hardness Block 80~100 HRB



1 pc Hardness Block70~85 HR30T 1 pc



Hardness Block 65~80 HR30N



1 pc Weight 1, 2, 3, 4, 5 5 pcs



Power Cable



1 pc Fuse 2A 2 pcs



Level



1 pc Horizontal Regulating Screw 4 pcs



Screw Driver



1 pc Spanner 1 pc



Anti-dust Cover



1 pc Usage Instruction Manual 1 copy
