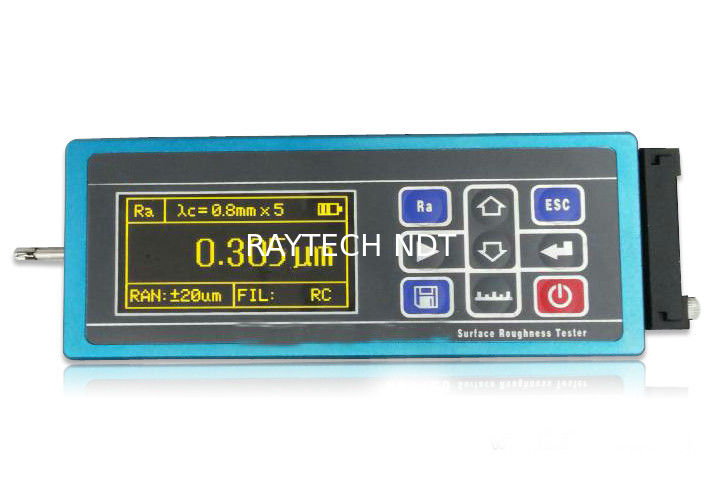

SRT210 Surface roughness gauge, Surface quality tester, Surface roughness tester

China SRT210 Surface roughness gauge, Surface quality tester, Surface roughness tester supplier

Large Image :  SRT210 Surface roughness gauge, Surface quality tester, Surface roughness tester

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: SRT210

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Detailed Product Description
Product Name: Surface Roughness Gauge, Surface Quality Tester, Surface Roughness Tester Parameter: RX, Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr;
The Sampling Length: 0.25mm,0.8mm,2.5mm,8mm Internal Storage Capacity: 100 Groups
External Input / Output Interface: USB Weight(host): 0.4kg



SRT210 Surface roughness gauge, Surface quality tester,



Surface roughness tester



SRT210 Surface roughness gauge, Surface quality tester, Surface roughness tester



Functions and features:



1.Electromechanical integration design, small volume, light weight, easy to use;



2.Using DSP chip to control and data processing, high speed, low power



consumption;



3.Large range, parameters RX, Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku,



Rsm, Rmr;



4.128 x 64 OLED dot matrix display, digital / graphic display; highlight no



perspective;



5.Display information rich, intuitive, can display all the parameters and graphics;



6.Compatible with ISO, DIN, ANSI, JIS national standards;



7.Built-in lithium ion rechargeable battery and a charging control circuit, high



capacity, no memory effect;



8.Residual quantity indicator icon, prompting the user to charge;



9.Display of the charging process instructions, the operator can understand the



degree of charge



10.Working time more than 20 hours of continuous work



11.Large capacity data memory, can store 100 groups of original data and



waveform.



12.Real-time clock settings and display, convenient data recording and storage



13.With automatic dormancy, automatic shutdown and power saving function



14.Reliable control motor to go dead circuit and software design



15.Measurement information display, menu prompt information, false information



and switch machine and other tips that information;



16.Full metal shell design, sturdy, compact, portable, high reliability.



17.Can be in English freely switch



18.Can be connected to a computer and printer;



19.Optional sensor surface, hole sensor, measuring platform, sensor, an extension



rod and other accessories.





Technical parameters:





Item



Description



The maximum driving trip



17.5mm/0.7inch



Indicating error



Not more than ± 10%



Variation of indication



Not more than 6%



The measured profile



Roughness, waviness, the original contour

Parameter



Ra(0.005μm  ~  16μm),
Rz(0.02μm  ~  160μm),
Rq, Rt, Rx,Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr.



Filter



RC,PCRC,Gauss,ISO13565





The sampling length L



0.25mm,0.8mm,2.5mm,8mm



Evaluation length L



(1-5)l



Internal storage capacity



100 groups of original data



External input / output interface



USB



Electric source



Built-in rechargeable lithium ion battery or external power adapter





The performance index of sensor:





The detection principle

Current induction

Measuring range

160 μm

Tip radius

5 μm

Tip material

Diamond

Stylus force

4mN(0.4gf)

Stylus angle

90°

The guide head vertical radius

45mm





Standard configuration:



Host

1

Standard sensor

1

Reticle temp-let

1

Template support

1

Movable support

1

Power adapter

1

USB charging cable

1

instrument container

1





Outline dimension:



143 x 55 x 42mm (host).

Weight: about 0.4KG (host).
