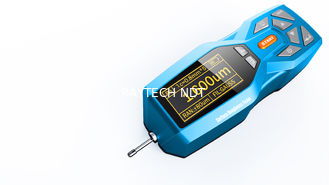

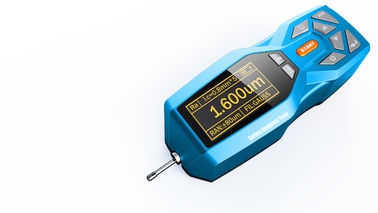

SRT220 Surface roughness tester, surface roughness gauge, NDT Testing

China SRT220 Surface roughness tester, surface roughness gauge, NDT Testing supplier
SRT220 Surface roughness tester, surface roughness gauge, NDT Testing supplier SRT220 Surface roughness tester, surface roughness gauge, NDT Testing supplier

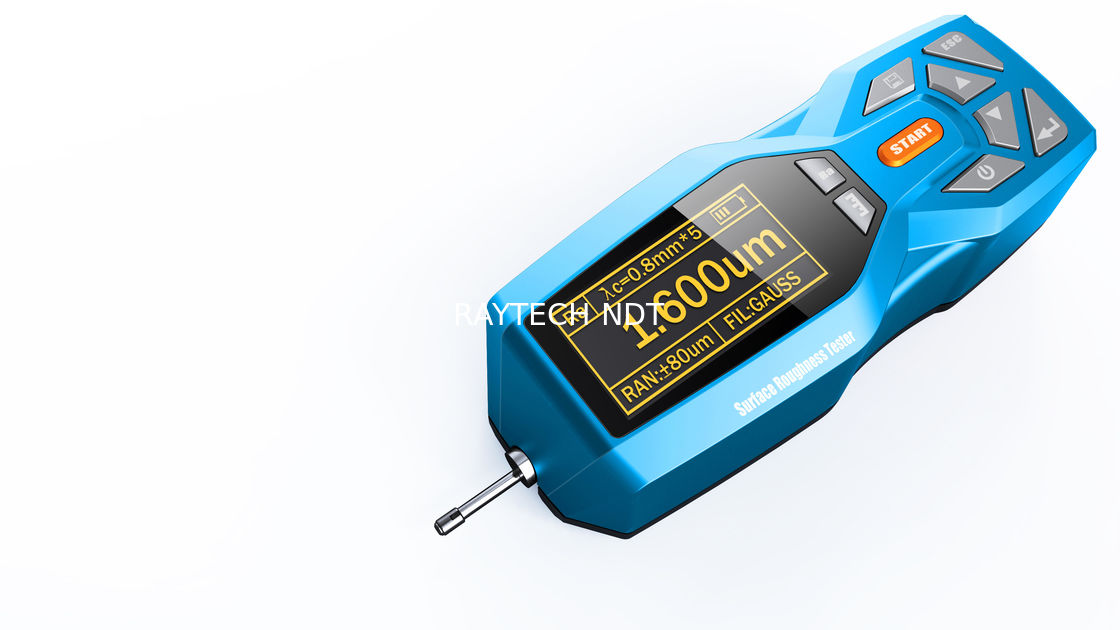

Large Image :  SRT220 Surface roughness tester, surface roughness gauge, NDT Testing

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: SRT220

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Surface Roughness Tester, Surface Roughness Gauge, NDT Testing Testing Parameters: Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx;
Measuring Range (um): Ra: 0.005-16.000 Rz: 0.02-160.00 Sample Length (mm): 0.25, 0.80, 2.50
Indication Accuracy: 0.001 Data Storage: 100groups



SRT220 Surface roughness tester, surface roughness

gauge, NDT Testing

SRT220 Surface roughness tester, surface roughness gauge, NDT Testing






SRT220

Testing parameters

Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx;

Measuring range (um)

Ra: 0.005-16.000
Rz: 0.02-160.00

Sample length (mm)

0.25, 0.80, 2.50

Evaluation length(mm)

(1-5)L

Maximum drive stroke

17.5mm/0.7inch

Indication accuracy

0.001

Indication error

±(7-10)%

Variability

<6%

Data Storage

100 groups

Power

Rechargeable li-battery

Working temperature

-20℃~40℃

Relative humidity

<90%

Size

158mmx63.5mmx46mm

Weight of Host

0.3kg



Main feature:

*Electromechanical integration design, small volume, light weight, easy to use;

*Using DSP chip to control and data processing,high speed,low power consumption

*128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective

*Intuitive and rich display information, can display all the parameters and graphics;

*Compatible with ISO, DIN, ANSI, JIS national standards;

*Residual quantity icon, prompting the user to charge;

*Continuous working time: more than 20 hours.

*Real-time clock settings and display, convenient data recording and storage.

*With automatic dormancy, automatic shutdown and power saving function

*Reliable control motor to go dead circuit and software design

*Measurement information display, menu prompt information, false information and s

witch machine and other tips that information;

*Can be connected to a computer and printer;

*Optional different sensor, measuring platform, mini printer, extension rod and other

accessories.

*Plastic shell, inspired by “TRANSFORMERS” stylish design, portable, high reliabilit

y.

*Optional bluetooth function.

*High price performance.


Standard configuration:





Name

QTY

1

Host

1

2

Standard Sensor

1

3

Calibration block and bracket

1

4

Bracket

1

5

Charger

1

6

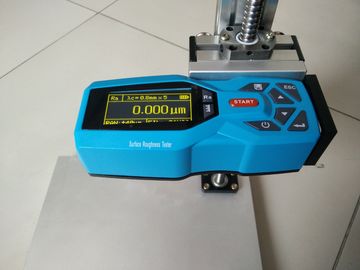

Adjustable support

1

7

Operating manual

1

8

Warranty card

1

9

Certificate of approval

1

10

Instrument case

1



TAG: Surface roughness gauge
