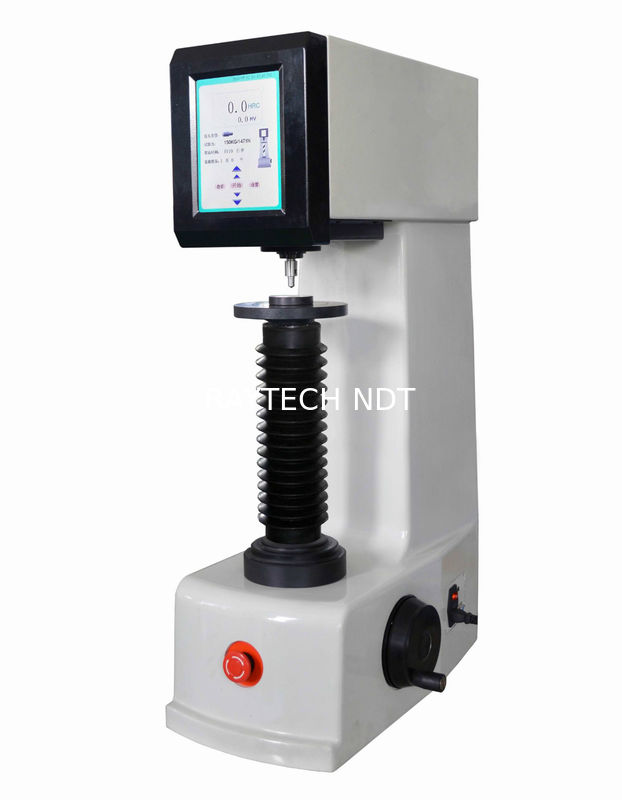

Digital Automatic Rockwell Hardness Tester, Touch Screen Rockwell Hardness Measure Equipment 560RSSZ

China Digital Automatic Rockwell Hardness Tester, Touch Screen Rockwell Hardness Measure Equipment 560RSSZ supplier
Digital Automatic Rockwell Hardness Tester, Touch Screen Rockwell Hardness Measure Equipment 560RSSZ supplier Digital Automatic Rockwell Hardness Tester, Touch Screen Rockwell Hardness Measure Equipment 560RSSZ supplier

Large Image :  Digital Automatic Rockwell Hardness Tester, Touch Screen Rockwell Hardness Measure Equipment 560RSSZ

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: 560RSSZ

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Digital Automatic Rockwell Hardness Tester, Touch Screen Rockwell Hardness Measure Equipment 560RSSZ Initial Test Force: 3kgf (29.42N), 10kgf (98.07N)
Hardness Reading: Touch Screen Data Output: RS232 Interface
Resolution: 0.1HR Max. Height Of Specimen: 320mm




Digital Automatic Rockwell Hardness Tester, Touch Screen



Rockwell Hardness Measure Equipment 560RSSZ





Digital Automatic Rockwell Hardness Tester, Touch Screen Rockwell Hardness Measure Equipment 560RSSZ





Digital Automatic Rockwell Hardness Tester, Touch Screen Rockwell Hardness Measure Equipment

Digital Automatic Rockwell Hardness Tester, Touch Screen Rockwell Hardness Measure Equipment

Digital Automatic Rockwell Hardness Tester, Touch Screen Rockwell Hardness Measure Equipment





Main Function:



560RSSZ Automatic double Rockwell hardness tester with a good aesthetic aspect, complete



functions, easy operation, intuitive display and good reliability, is a high-tech product combining



the mechanic and electric features, which is suitable for the Rockwell and superficial Rockwell



hardness test.



1. Support for all the Rockwell and superficial Rockwell scales;



2. Support for conversion scales of different kinds of hardness;



3. Touch screen display and operation, dynamically display the working state of the lifting screw and the indenter;



4. Press operation for the test table, fast rising or dropping;



5. One key to complete the rising of the specimen, loading dwell and unloading of the indenter,



displaying of the hardness value, homing of the test table;



6. With data storage function, automatic calculation of the maximum, minimum, average of the



hardness value, the test results can be printed for output, and with a RS232 interface users can



connect it to the computer for output.



Application range:



Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable



cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for



surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers,



chrome layers, tin layers etc.



Technical Specification:



Model



560RSSZ



Initial Test Force



3kgf (29.42N), 10kgf (98.07N)



Total Test Force



15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N),



60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)



Indenter



Diamond Rockwell Indenter, ф1.588mmBall Indenter



Loading Method



Automatic (Loading/Dwell/Unloading)



Automatic Test Table



Automatic Rising and Homing, One Key to Complete



Hardness Reading



Touch Screen



Test Scale



HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV

HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y



Conversion Scale



HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW



Data Output



RS232 Interface



Resolution



0.1HR



Dwell Time



0~99s



Max. Height of Specimen



320mm



Throat



150mm



Power Supply



AC220V,50Hz



Execute Standard



ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2



Dimension



535×330×890mm,Packing Dimension: 820×460×1170mm



Weight



Net Weight: 80kg,Gross Weight: 100kg







Packing List:



Name



Qty Name Qty



Instrument Main Body



1 set Diamond Rockwell Indenter 1 pc



ф1.588mmBall Indenter



1 pc Middle Plane Test Table 1 pc



Large Plane Test Table



1 pc V-shaped Test Table 1 pc

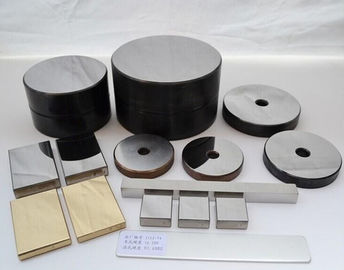

Hardness Block 60~70 HRC



1 pc Hardness Block 20~30 HRC 1 pc



Hardness Block 80~100 HRB



1 pc Hardness Block70~85 HR30T 1 pc



Hardness Block 65~80 HR30N



1 pc Fuse 2A 2 pcs



Power Cable



1 pc Anti-dust Cover 1 pc



Usage Instruction Manual



1 copy
