Digital Display Superficial Rockwell Hardness Tester, Hardness Testing Machine HRMS-45

Certification
Good quality X Ray Flaw Detector for sales
Good quality X Ray Flaw Detector for sales
Easy to talk with, very professional and fast service, the quality is super good.

—— Ali Sharif

I'm Online Chat Now

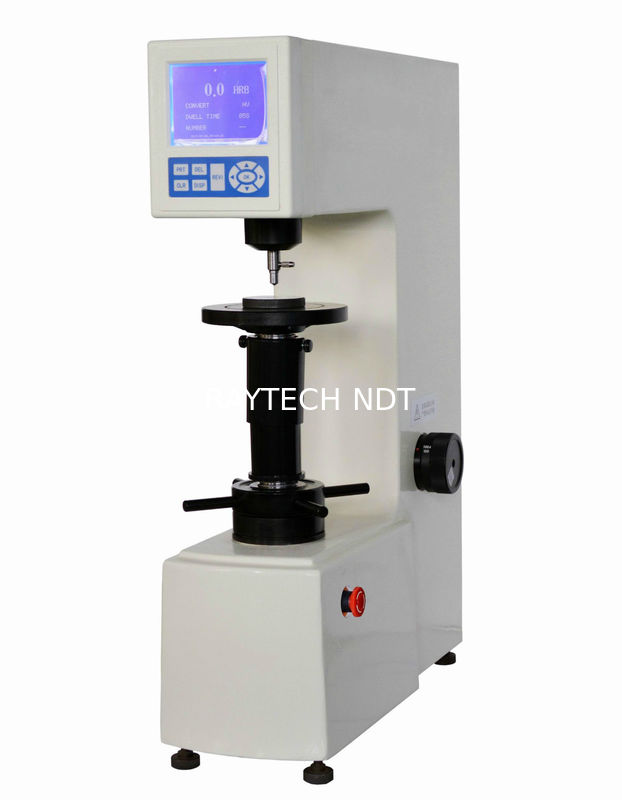

Digital Display Superficial Rockwell Hardness Tester, Hardness Testing Machine HRMS-45

China Digital Display Superficial Rockwell Hardness Tester,  Hardness Testing Machine HRMS-45 supplier
Digital Display Superficial Rockwell Hardness Tester,  Hardness Testing Machine HRMS-45 supplier Digital Display Superficial Rockwell Hardness Tester,  Hardness Testing Machine HRMS-45 supplier

Large Image :  Digital Display Superficial Rockwell Hardness Tester, Hardness Testing Machine HRMS-45

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: HRMS-45

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Digital Display Superficial Rockwell Hardness Tester, Hardness Testing Machine HRMS-45 Initial Test Force: 3kgf (29.42N)
Total Test Force: 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N) Indenter: Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method: Automatic (Loading/Dwell/Unloading) Hardness Reading: LCD Screen Display





Digital Display Superficial Rockwell Hardness Tester,



Hardness Testing Machine HRMS-45



Digital Display Superficial Rockwell Hardness Tester,  Hardness Testing Machine HRMS-45




Main Function:



HRMS-45 Digital superficial Rockwell hardness tester is equipped with a newly-designed large



displaying screen with good reliability, excellent operation and easy watching, thus it is a high-



tech product combining the mechanic and electric features. It can show and set the present scale,



test force, test indenter, dwell time and hardness conversion; the main function is as follows:



Selection of all the superficial Rockwell scales; Conversion scales of different kinds of hardness;



Test results can be saved and printed out, automatic calculation of maximum, minimum and



average value; With RS232 interface for connecting to the computer.



Application range:



Suitable for surface quenched steel, surface heat treating and chemical treating materials,



copper alloy, aluminum alloy, sheet, zinc layers, chrome layers, tin layers, bearing steel and cold



and hard casting etc



Technical Specification:



Model



HRMS-45



Initial Test Force



3kgf (29.42N)



Total Test Force



15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N)



Indenter



Diamond Rockwell Indenter, ф1.588mmBall Indenter



Loading Method



Automatic (Loading/Dwell/Unloading)



Hardness Reading



LCD Screen Display



Test Scale



HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y



Conversion Scale



HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW



Data Output



Built-in Printer,RS232 Interface



Resolution



0.1HR



Dwell Time



0~60s



Max. Height of Specimen



175mm



Throat



165mm



Power Supply



AC220V,50Hz



Execute Standard



ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2



Dimension



520×215×700mm,Packing Dimension: 650×370×950mm



Weight



Net Weight: 73kg,Gross Weight: 100kg









Packing List:





Name



Qty Name Qty



Instrument Main Body



1 set Diamond Rockwell Indenter 1 pc



ф1.588mmBall Indenter



1 pc Middle Plane Test Table 1 pc



Large Plane Test Table



1 pc V-shaped Test Table 1 pc



Hardness Block 70~85 HR30T



1 pc Hardness Block 80~90 HR15N 1 pc



Hardness Block 65~80 HR30N



1 pc Weight A, B, C 3 pcs



Power Cable



1 pc Fuse 2A 2 pcs



Level



1 pc Horizontal Regulating Screw 4 pcs



Screw Driver



1 pc Spanner 1 pc



Anti-dust Cover



1 pc Usage Instruction Manual 1 copy
