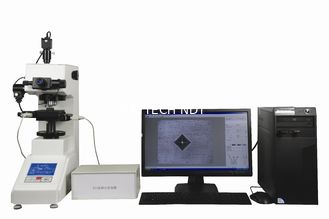

Full Automatic Micro Vickers Hardness Tester, Most Advanced Hardness Meter HAV-1000XYZ

China Full Automatic Micro Vickers Hardness Tester, Most Advanced Hardness Meter HAV-1000XYZ supplier
Full Automatic Micro Vickers Hardness Tester, Most Advanced Hardness Meter HAV-1000XYZ supplier Full Automatic Micro Vickers Hardness Tester, Most Advanced Hardness Meter HAV-1000XYZ supplier

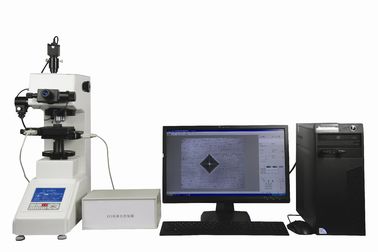

Large Image :  Full Automatic Micro Vickers Hardness Tester, Most Advanced Hardness Meter HAV-1000XYZ

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: HAV-1000XYZ

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Full Automatic Micro Vickers Hardness Tester, Most Advanced Hardness Meter HAV-1000XYZ Test Load: 10-1000kgf
Carriage Control: Automatic Load Holding Time: 5-60sec
Max.height Of Specimen: 65mm Max.width Of Specimen: 85mm

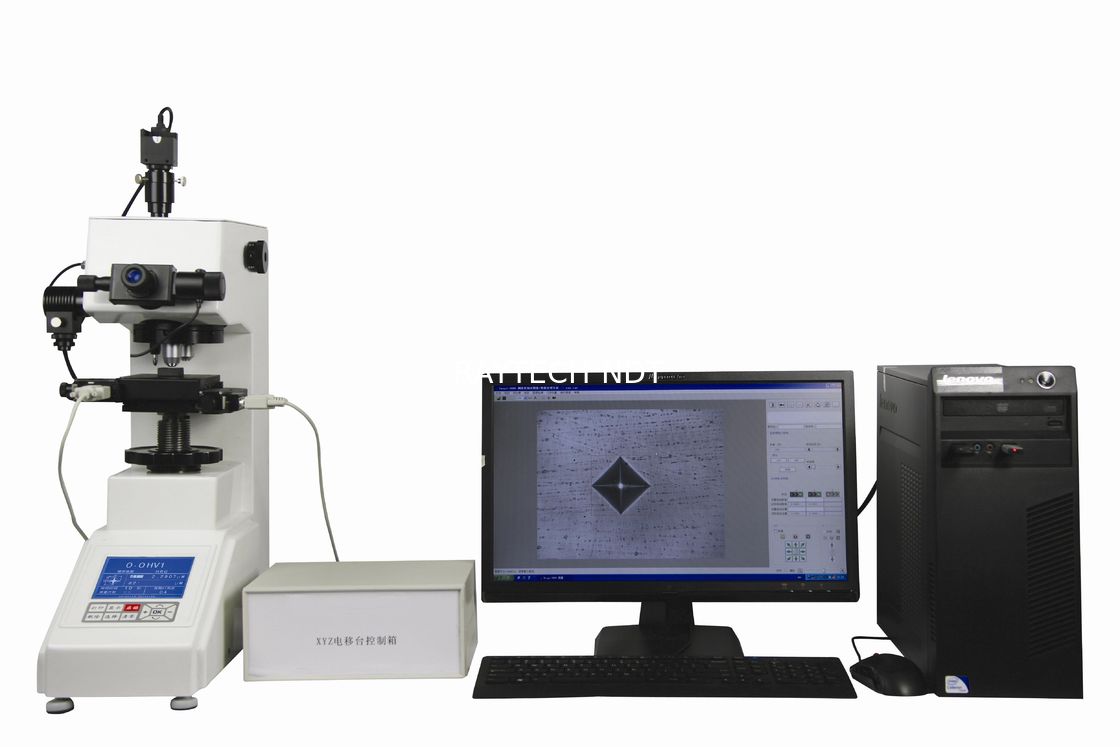

Full Automatic Micro Vickers Hardness Tester, Most Advanced

Hardness Meter HAV-1000XYZ


Vickers Hardness Tester NDT


Detailed Product Description

1.Most advanced
2.Automatic X Y Z axis
3.PC display
4.Full Automatic output hardness values
5.None error

Main Features:

Model HAV-1000XYZ Full Automatic Micro hardness measuring system is mainly used for

a variety of metal and some non-metallic materials, micro-Vickers hardness measurement, to the

various parts (machined parts, forgings, cast iron, cast steel, etc.), non-ferrous metals and

thermal after-treatment components such as the determination of the hardness, while for the

effective case depth, coating and welding pieces of heat-affected parts of the determination. Can

also be used for a variety of metal parts within the microstructure observation and image

acquisition, display and print output.

Particularly suitable for measuring the hardness gradient curve of the workpiece automatically

play indentation.
Automatic measurement of hardness values
Auto Focus
Automatic sample X / Y / Z axis
Automatic measurement of the effective hardening curve
Hardness tester with separate and independent use of automated systems
Single measurement, volume measurement, ASTM / national standard hardness conversion

tables, the value of alarm failure
Automatically generate customized inspection reports

3 System Components:
3.1 automatic Vickers hardness measurement system units Model: HAV-1000XYZ
3.2 includes the following sections
HVS-1000 digital Vickers hardness tester
HAV-1000XYZ automatic control, measurement and data image processing system

PC computer

Usage Range:

Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous

metal and small and thin shape parts, etc.

Technical Specifications:
Serial number of the content description
1set. HAV-1000XYZ automatic micro-hardness measurement system

An automatic turret digital micro hardness tester, Model: HVS-1000


Test load


0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80N (10-1000kgf)


Loading mechanism


Automatic loading and releasing method


Magnification of microscope


Measuring:400x (Object lens 40x, Eyepiece 10x) Observation:100x

(Object lens 10x, Eyepiece 10x)


Load holding time


5-60sec


Measuring microscope


Mechanical



Digital



Max.measuring length 150μm



Min.measuring unit 0.0625μm


Max.height of specimen


Approx 65mm


Max.depth of specimen


Approx 85mm


Micro test table


Dimension:100_100mm Max.movement:25mm in X&Y axis Min.micro

graduation:1/100mm


Digital data display


(5-2500)HV


Automatic recorder



Printer


Photographic device


Possible to install at any time


Dimensions of tester


W290 x D405 x M480mm


Weight of tester


25kg


Power supply


AC220V/110V±10% 50Hz/60Hz



Standard delivery

Main unit 1

10 x objective 1

Weight shaft 1

Cross testing table 1

Screwdriver 2

Level 1

Fuse 1A, 2A 2

Certificate 1

Manual 1

Micro Vickers indenter 1

40 x objective 1

Weight 6

Fine wire holder 1

Horizontal adjusting screw 4

Lamp (6V/2 W) 2

Manual for printer 1

10 x micrometer eyepiece 1

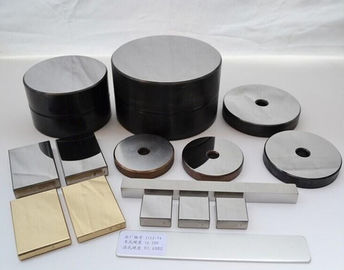

Micro Vickers hardness test block (medium) 1

Optional accessories

Depending on customer demand
