Digital Micro Vickers Hardness Tester, Test Load 10-1000kgf, Desk Type Hardness Meter HVS1000

China Digital Micro Vickers Hardness Tester, Test Load 10-1000kgf, Desk Type Hardness Meter HVS1000 supplier
Digital Micro Vickers Hardness Tester, Test Load 10-1000kgf, Desk Type Hardness Meter HVS1000 supplier Digital Micro Vickers Hardness Tester, Test Load 10-1000kgf, Desk Type Hardness Meter HVS1000 supplier Digital Micro Vickers Hardness Tester, Test Load 10-1000kgf, Desk Type Hardness Meter HVS1000 supplier

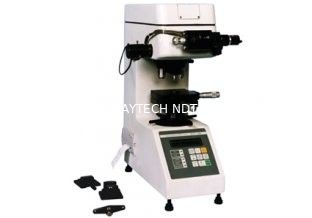

Large Image :  Digital Micro Vickers Hardness Tester, Test Load 10-1000kgf, Desk Type Hardness Meter HVS1000

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: HVS1000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Digital Micro Vickers Hardness Tester, Test Load 10-1000kgf, Desk Type Hardness Meter HVS1000 Test Load: 10-1000kgf,
Loading Mechanism: Automatic Loading And Releasing Method Load Holding Time: 5-60sec
Max.height Of Specimen: Approx 65mm Max.depth Of Specimen: Approx 85mm



Digital Micro Vickers Hardness Tester, Test Load 10-1000kgf,



Desk Type Hardness Meter HVS1000





Micro Hardness Tester





Detailed Product Description



· Model HVS-1000 digital micro hardness tester is an integrated optical, mechanical and



electrical popularized type micro hardness tester



· This tester adopts programming by computer software, high magnification optical



measuring system and photo electric sensor etc such technique



· By means of input by membrane switches, it may adjust the measurement of either



strong or weak light source, preset the holding time for test force or load, cut and change



either the Vicker's of Knoop's test method



· The hardness tester is also equipped with photographic device that may take photo of



all measured indentation and the metallographic formation of materials



· It is suitable to measure the micro hardness of small, thin specimen, and superficial



permeable coating (or plating) layer etc such specimen, as well as to measure the micro



hardness of glass, ceramics, agate, and gem etc such brittle materials



Specifications



Test load



0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80N (10-1000kgf)



Loading mechanism



Automatic loading and releasing method



Magnification of microscope



Measuring:400x  (Object lens 40x, Eyepiece 10x) Observation:100x (Object lens 10x, Eyepiece 10x)



Load holding time



5-60sec



Measuring microscope



Mechanical





Digital





Max.measuring length 150μm





Min.measuring unit 0.0625μm



Max.height of specimen



Approx 65mm



Max.depth of specimen



Approx 85mm



Micro test table



Dimension:100_100mm Max.movement:25mm in X&Y axis Min.micro graduation:1/100mm



Digital data display



(5-2500)HV



Automatic recorder



Printer



Photographic device





Possible to install at any time



Dimensions of tester



W290 x D405 x M480mm



Weight of tester



25kg



Power supply



AC220V/110V±10% 50Hz/60Hz





Standard delivery



Main unit 1



10 x objective 1



Weight shaft 1



Cross testing table 1



Screwdriver 2



Level 1



Fuse 1A, 2A 2



Certificate 1



Manual 1



Micro Vickers indenter 1



40 x objective 1



Weight 6



Fine wire holder 1



Horizontal adjusting screw 4



Lamp (6V/2 W) 2



Manual for printer 1



10 x micrometer eyepiece 1

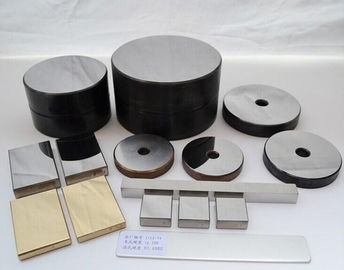

Micro Vickers hardness test block (medium) 1





Optional accessories



Depending on customer demand
