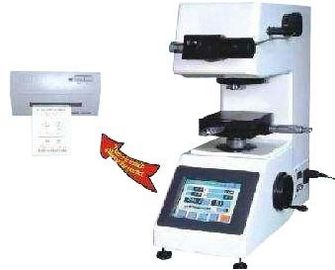

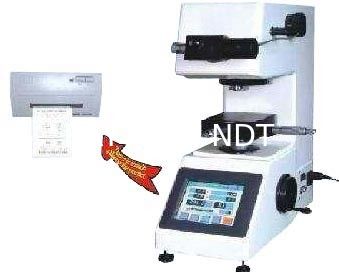

Touch LCD Screen Digital Micro Vickers Hardness Tester, Non Destructive Hardness Meter XHV1000

China Touch LCD Screen Digital Micro Vickers Hardness Tester, Non Destructive Hardness Meter XHV1000 supplier
Touch LCD Screen Digital Micro Vickers Hardness Tester, Non Destructive Hardness Meter XHV1000 supplier Touch LCD Screen Digital Micro Vickers Hardness Tester, Non Destructive Hardness Meter XHV1000 supplier

Large Image :  Touch LCD Screen Digital Micro Vickers Hardness Tester, Non Destructive Hardness Meter XHV1000

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: XHV1000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Touch LCD Screen Digital Micro Vickers Hardness Tester, Non Destructive Hardness Meter XHV1000 Test Load: 10-1000kgf
Carriage Control: Automatic Load Holding Time: 5-60sec
Max.height Of Specimen: 70mm Max.width Of Specimen: 95mm



Touch LCD Screen Digital Micro Vickers Hardness Tester,



Non Destructive Hardness Meter XHV1000









Micro Hardness Tester





Touch LCD Screen Digital Micro Vickers Hardness Tester, Non Destructive Hardness Meter XHV1000

Touch LCD Screen Digital Micro Vickers Hardness Tester, Non Destructive Hardness Meter XHV1000

Touch LCD Screen Digital Micro Vickers Hardness Tester, Non Destructive Hardness Meter XHV1000







Main Features



XHV-1000 Digital Micro Vickers Hardness Tester made with a unique and precise design in the



fields of mechanics, optics and light source is able to produce a clearer indentation and hence a



more precise measurement. By means of a 20 × lens and a 40 × lens the tester has a wider



measurement field and a broader usage range. With an automatically turning device ( the



automatically turning turret ), the operation has become easier; and with a thread interface, it can



be linked to a digital camera and a CCD Video—camera . It is the first tester that has adopted



the touch and work LCD screen, thus making the operation more humanized. The tester has such



features as the direct reading of the measurements, the easy change of the hardness scales, the



reservation of the data, the printing and the linkage with RS232 interface. It is the representative



of the products of the same kind in the country.

Usage Range


Ferrous metals, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate,



precious stones;


Hardness testing such as that on the depth and the trapezium of the carbonized layers and



quench hardened layers.


Technical Features


Test Forces:(0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80) N (10, 25, 50, 100, 200, 300,



500, 1000) gf


Carriage Control: automatic ( loading / holding-up of the load / unloading )


Amplification of the Microscope: 200 ×, 400 ×


Dwell Time of the Test Force: (5-60)s


Min. Graduation Value of the Testing Drum Wheel: 0.0625um


Testing Field: 1HV—2967HV


Dimension of the XY Table: 100 × 100 mm


Movement Field of the XY Table: 25 × 25mm


Max. height of the specimen : 70 mm


Max. width of the specimen : 95mm


Output : installed with a printer and a RS232 serial interface


Light source : cold light source


Power Supply : 110V/220V,60/50Hz


Dimension: (425 × 245 × 490)mm


Weight: 30Kg





Main accessories





XY-stage test table



1



Thin specimen test table



1



Fork-shaped test table



1



Fine wire test table



1



Adjustable screw



1



10×Digital Micro Lens



1

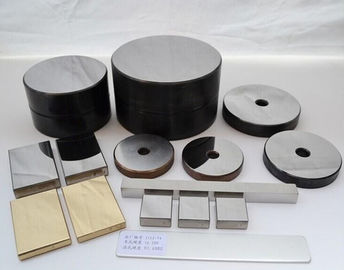

Micro Vickers hardness blocks (high medium)



2



Gradienter



1
