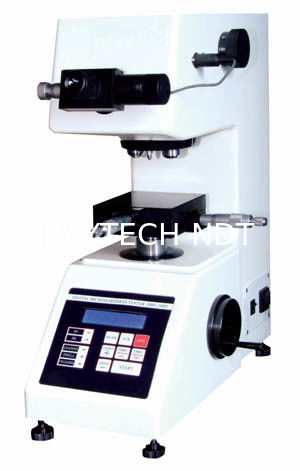

LCD Display Digital Micro Vickers Hardness Tester, Hardness testing machine DHV1000

China LCD Display Digital Micro Vickers Hardness Tester, Hardness testing machine DHV1000 supplier
LCD Display Digital Micro Vickers Hardness Tester, Hardness testing machine DHV1000 supplier LCD Display Digital Micro Vickers Hardness Tester, Hardness testing machine DHV1000 supplier

Large Image :  LCD Display Digital Micro Vickers Hardness Tester, Hardness testing machine DHV1000

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: DHV1000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: LCD Display Digital Micro Vickers Hardness Tester, Hardness Testing Machine DHV1000 Test Load: 10-1000kgf
Carriage Control: Automatic Load Holding Time: 5-60sec
Max.height Of Specimen: 70mm Max.width Of Specimen: 95mm



LCD Display Digital Micro Vickers Hardness Tester, Hardness



testing machine DHV1000



Micro Vickers Hardness Tester



Main Features


DHV-1000 Micro Vickers Hardness Tester made with a unique and precise design in the field of



mechanics ,optics and light source is able to produce a clearer indentation and hence a more



precise measurement. By means of a 20 × lens and a 40 × lens the tester has a wider



measurement field and a broader usage range. Equipped with a digital microscope, it shows the



measuring methods, the test force, the indentation length, the hardness value, the dwell time of



the test force as well as the number of the measurements —— all shown on its LCD screen. What



is more, it is equipped with an interface linked to a digital camera and a CCD Video—camera,



and is, therefore, a representative of the products of the same kind in the country.

Usage Range


Ferrous metals, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate,



precious stones;


Hardness testing such as that on the depth and the trapezium of the carbonized layers and



quench hardened layers.



Technical Features


Test Forces:(0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80) N (10, 25, 50, 100, 200, 300,



500, 1000) gf


Carriage Control: automatic ( loading / holding-up of the load / unloading )


Amplification of the Microscope: 200 ×, 400 ×


Dwell Time of the Test Force: (5-60)s


Min. Graduation Value of the Testing Drum Wheel: 0.0625um


Testing Field: 1HV—2967HV


Dimension of the XY Table: 100 × 100 mm


Movement Field of the XY Table: 25 × 25mm


Max. height of the specimen : 70 mm


Max. width of the specimen : 95mm


Output : installed with a printer and a RS232 serial interface


Light source : cold light source


Power Supply : 110V/220V,60/50Hz


Dimension: (425 × 245 × 490)mm


Weight: 30Kg





Main accessories





XY-stage test table



1



Thin specimen test table



1



Fork-shaped test table



1



Fine wire test table



1



Adjustable screw



1



10×Digital Micro Lens



1

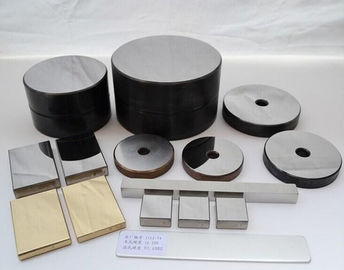

Micro Vickers hardness blocks (high medium)



2



Gradienter



1
