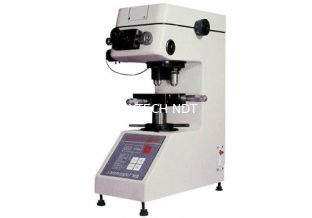

NDT Hardness Measure, LED display Micro Vickers Hardness Tester Basic Model HV1000

China NDT Hardness Measure, LED display Micro Vickers Hardness Tester Basic Model HV1000 supplier
NDT Hardness Measure, LED display Micro Vickers Hardness Tester Basic Model HV1000 supplier NDT Hardness Measure, LED display Micro Vickers Hardness Tester Basic Model HV1000 supplier

Large Image :  NDT Hardness Measure, LED display Micro Vickers Hardness Tester Basic Model HV1000

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: HV1000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: NDT Hardness Measure, LED Display Micro Vickers Hardness Tester Basic Model HV1000 Test Load: 10-1000kgf
Carriage Control: Automatic Load Holding Time: 5-60sec
Max.height Of Specimen: 65mm Max.width Of Specimen: 85mm

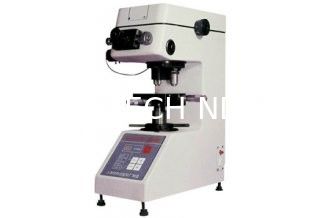

NDT Hardness Measure, LED display Micro Vickers Hardness



Tester Basic Model HV1000





Micro Vickers Hardness Meter



Detailed Product Description



· Model HV-1000 adopts precise mechanical technique and



· photoelectrical technique.



· The tester is able to adjust and measure either strong or weak



· light source, and is capable to pressure holding time of the test



· load and is displayed by LED



· This tester adopts peculiar indentation measuring, inverting



· and read mechanism through measuring once by the



· micrometer eyepiece



· It is easy to use, and high precision in measurement



Specifications



Test load



0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80N (10-1000kgf)



Load holding time



5-60sec



Magnification of microscope



Measuring:400x (Object lens 40x, Eyepiece 10x)



Observation:100x (Object lens 10x, Eyepiece10x)



Loading mechanism



Automatic loading and releasing method



Measuring

microscope



Mechanical





Digital





Max.measuring length 150μm





Min.measuring unit 0.5μm



Max.height of specimen



Approx 65mm



Max.depth of specimen



Approx 85mm



Micro test table



Dimension:100_100mm Max.movement:25mm in X&Y axis Min .micro graduation:1/100mm



Digital data display



(5-2500)HV



Automatic recorder
Photographic device



Possible to install at any time



Dimensions of tester



W290 ×D405×M480mm



Weight of tester



25kg



Power supply



AC220V/110V±10% 50Hz/60Hz





Standard delivery


Main unit 1


Micro Vickers indenter 1


10 × objective 1


40 × objective 1


Manual 1


Weight shaft 1


Cross testing table 1


Screwdriver 2


Horizontal adjusting screw 4


10× micrometer eyepiece 1

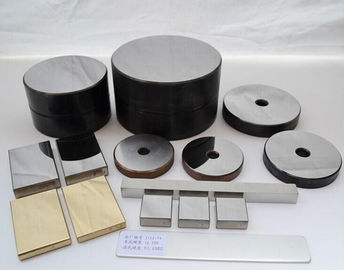

Micro Vickers hardness test block (high) 1


Micro Vickers hardness test block (medium) 1


Level 1


Lamp (6V/2 W) 2


Fuse 1A, 2A 2


Certificate 1


Manual for printer 1


Weight 6


Fine wire holder 1




Optional accessories



Depends on customer demand
