Digital Vibration Calibrator, calibrate vibration accelerometer, velocity, transducer VMC-6000

China Digital Vibration Calibrator, calibrate vibration accelerometer, velocity, transducer VMC-6000 supplier
Digital Vibration Calibrator, calibrate vibration accelerometer, velocity, transducer VMC-6000 supplier Digital Vibration Calibrator, calibrate vibration accelerometer, velocity, transducer VMC-6000 supplier

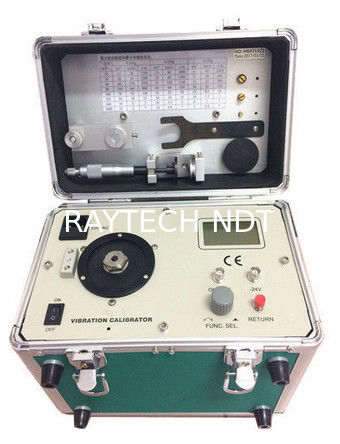

Large Image :  Digital Vibration Calibrator, calibrate vibration accelerometer, velocity, transducer VMC-6000

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: VMC-6000

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export carton
Delivery Time: 5~8days
Payment Terms: Western Union, T/T
Supply Ability: 500units/month
Contact Now
Detailed Product Description
Product Name: Digital Vibration Calibrator, Calibrate Vibration Accelerometer, Velocity, Transducer VMC-6000 Acceleration: M/s2 (PEAK)
Velocity: Mm/s (RMS) Displacement: Um (PK-PK)
Prode: 5mm And 8mm And 11mm Display: 3 1/2 Digit Display For Acceleration, Velocity Or Displacement





Digital Vibration Calibrator, calibrate vibration accelerometer,



velocity, transducer VMC-6000



Digital Vibration Calibrator, calibrate vibration accelerometer, velocity, transducer VMC-6000



Application for Vibration Calibrator:



1.Can be used to calibrate vibration accelerometer, velocity and proximity transducer.



2.It can also be used to calibrate vibration monitoring / measuring instruments or



data acquisition / data collector devices. Standard sine signals at continually



varying frequency from 10, to 1280 Hz can be generated from the calibrator.



3.The amplitude of the acceleration, velocity and displacement can be defined and



shown on LCD digital panel. Either horizontal or vertical vibration can be generated.



4.VMC-6000 combines sine signal generator, power amplifier, standard transducer



and a shaker in one and features a small volume, high accuracy and easy



operation. Use either in lab or on site.





Unit:



Acceleration: m/s2 (PEAK)



Velocity: mm/s (RMS)



Displacement: um (PK-PK)



Amplitude accuracy:



Acceleration (30m/s2 pk, 80Hz) 40Hz to 320Hz + 0.3dB + 1digit



10Hz to 1280Hz + 0.5dB +1digit



Velocity ( 25mm/sec pk ,80Hz) 40Hz to 320Hz +0.5dB +1digit



Displacement (10μm pk-pk, 80Hz) 40Hz to 320Hz + 0.5dB + 1digit





Proximity probe linearity



Probe: 5mm and 8mm and 11mm probes Range: 0~2.0mm



Display: 3 1/2 digit display for acceleration, velocity or displacement





Maximum vibration amplitude and maximum load:



Because of the vibrostand used in VMC-6000 Vibration Calibrator is rather small,



during the calibration of transducers of different weight under different frequencies



the output amplitude of the calibrators are also different. Maximum vibration



amplitude and maximum load are related to the maximum acceleration. Maximum



velocity and maximum displacement output generated from the calibrator under a



certain frequency and with a certain weight of the transducer to be calibrated. The



specific figures can be seen in the following table.



Wt



Freq

<100g <250g <650g
a(m/S2) v(mm/S) d(μm) a(m/S2) v(mm/S) d(μm) a(m/S2) v(mm/S) d(μm)
10Hz 2.5 28 1300 3.5 40 1800 4 45 2000
20Hz 15 85 1900 10 60 1300 5 28 640
40Hz 60 170 2000 35 100 1100 12 35 380
80Hz 100 141 800 40 60 320 14 20 110
160Hz 75 53 150 35 25 70 12 8.5 24
320Hz 50 18 25 30 10 15 10 3.5 5
640Hz 30 5 3 20 3.5 2 6 1 *
1280Hz 23 2 * 10 0.9 * 5 0.4 *





Note: With higher frequency the value of the displacement of vibration is very



small so there will be no vibration signal output from the calibrator.



Size: 280 x 180 x 250(mm)



Weight: 20lb,9kgs



Temperature: Operation: 0oC to 50 oC



Storage: -20 oC to 70 oC



Humidity: 90% non –condensing

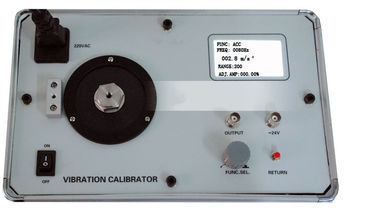

The control panel of VMC-6000 Vibration Calibrator is shown as following:



Digital Vibration Calibrator, calibrate vibration accelerometer, velocity, transducer VMC-6000
