Digital Vibration Meter, Machine Condition Checker, Vibration Analyzer VM9092

Certification
Good quality X Ray Flaw Detector for sales
Good quality X Ray Flaw Detector for sales
Easy to talk with, very professional and fast service, the quality is super good.

—— Ali Sharif

I'm Online Chat Now

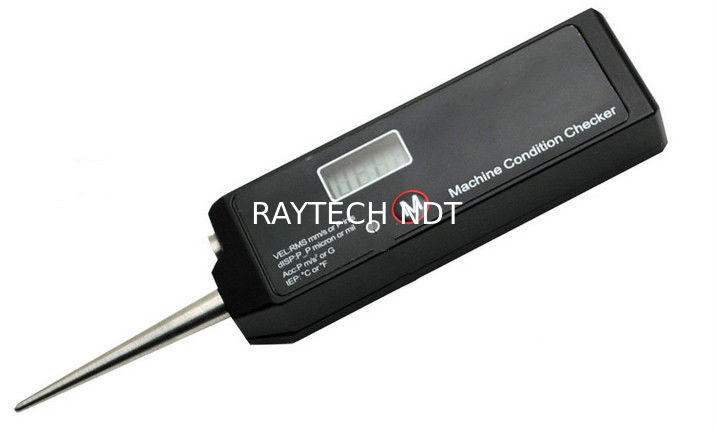

Digital Vibration Meter, Machine Condition Checker, Vibration Analyzer VM9092

China Digital Vibration Meter, Machine Condition Checker, Vibration Analyzer VM9092 supplier
Digital Vibration Meter, Machine Condition Checker, Vibration Analyzer VM9092 supplier Digital Vibration Meter, Machine Condition Checker, Vibration Analyzer VM9092 supplier

Large Image :  Digital Vibration Meter, Machine Condition Checker, Vibration Analyzer VM9092

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: VM9092

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Delivery Time: 5days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 5000units per month
Contact Now
Detailed Product Description
Product Name: Digital Vibration Meter, Machine Condition Checker, Vibration Analyzer VM9092 Accuracy: + 5% + 2 Digits
Acceleration: 0.1 To 100 M/s2 / 0.01 To 10 G / 10Hz~1kHz Velocity: 0.1 To 250 Mm/s / 0.01 To 15 Inch/s / 10Hz~1000Hz
Displacement: 1 To 3000 µm / 0.03 To 120 Mil / 10 Hz~500Hz Enveloped Acceleration:: 0.1 To 25 Unit / 5Hz~2kHz Demodulated From 3kHz~10kHz
Temperature: -33 To 220 ℃ / -27.4 To 428 OF Weight: 100 G (Including Battery)









Digital Vibration Meter, Machine Condition Checker, Vibration



Analyzer VM9092







Digital Vibration Meter, Machine Condition Checker, Vibration Analyzer VM9092









Features:



Multi-parameter vibration, bearing parameter (acceleration envelope) & IR



temperature measuring



One button control power, parameter selection, ISO10816 group selection,



measurement and holding.



With remote switch and magnet base to avoid handheld problem to get reliable and



consistent data.



Measuring vibration velocity, displacement & acceleration envelope to check



machine/bearing health  with yellow/red/green LED indicator



Build-in ISO10816-2 & -3 groups selectable



4 digital LCD display



Optional magnet base and remote switch



Sensor included, Easy to use.



Automatic power off.



Metal case, Robust, Reliable



Both Metric & English Unit





Specifications:





Accuracy



+ 5% + 2 digits

Measurement Range &



Frequency response:



Acceleration: 0.1 to 100 m/s2 / 0.01 to 10 g / 10Hz~1kHz





Velocity: 0.1 to 250 mm/s / 0.01 to 15 inch/s / 10Hz~1000Hz





Displacement: 1 to 3000 µm / 0.03 to 120 mil / 10 Hz~500Hz



Enveloped Acceleration:



0.1 to 25 unit / 5Hz~2kHz demodulated from 3kHz~10kHz



Temperature



-33 to 220 ℃ / -27.4 to 428 oF



Battery



1/2 AA, 3.6V, 20-29mA, >100 hours of continuous operation.



Pickup



Integrated accelerometer with extension stinger



Dimensions



110x35x17 mm



Weight



100 g (Including battery)






Indicator for machine health according to ISO 10816-2/3:



ISO 10816-3 Machinery Group 1-4





Digital Vibration Meter, Machine Condition Checker, Vibration Analyzer VM9092





Digital Vibration Meter, Machine Condition Checker, Vibration Analyzer VM9092





ISO 10816-2 Steam Turbines And Generators





Digital Vibration Meter, Machine Condition Checker, Vibration Analyzer VM9092





Digital Vibration Meter, Machine Condition Checker, Vibration Analyzer VM9092
