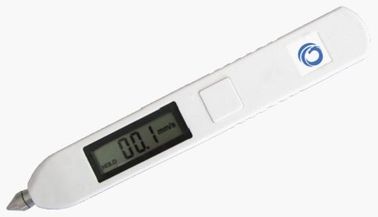

Vibration Pen, Portable Vibration Meter, Velocity Tester, Motor Bearings Gears Detector VM-7000

China Vibration Pen, Portable Vibration Meter, Velocity Tester, Motor Bearings Gears Detector VM-7000 supplier
Vibration Pen, Portable Vibration Meter, Velocity Tester, Motor Bearings Gears Detector VM-7000 supplier Vibration Pen, Portable Vibration Meter, Velocity Tester, Motor Bearings Gears Detector VM-7000 supplier

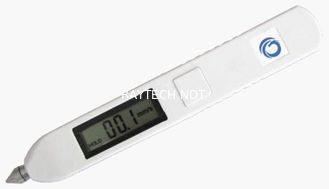

Large Image :  Vibration Pen, Portable Vibration Meter, Velocity Tester, Motor Bearings Gears Detector VM-7000

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: VM-7001

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Delivery Time: 5days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 5000units per month
Detailed Product Description
Product Name: Vibration Pen, Portable Vibration Meter, Velocity Tester, Motor Bearings Gears Detector VM-7000 Temperature Range: 0 - 50°C
Parameters: Velocity Testing Range: Velocity:0.01mm/s-199.9mm/s(RMS)
Frequency Range: Velocity:10Hz~1kHz Display: 31/2 Digits LCD



Vibration Pen, Portable Vibration Meter, Velocity Tester, Motor Bearings



Gears Detector VM-7000



Vibration Pen, Portable Vibration Meter, Velocity Tester, Motor Bearings Gears Detector VM-7000

Features:
• Used for fast failure detecting of motor, electric fan, pump, air compressor, machine tools and so on.
• Compact size, small weight, easy handling
• Prompt testing of vibration on the workshop machines
• For quick checking of unbalance misalignment, bearings and gears
• Guard against mechanical malfunction
• Holding tested value for 40 seconds
• Automatic switch off after 40 seconds


• VM-7000 is used for testing of velocity

Parameters Velocity
Testing range Velocity:0.01mm/s-199.9mm/s(RMS)
Frequency range Velocity:10Hz~1kHz
Accuracy ±5%
Display 31/2 digits LCD
Power supply Two button batteries(LR44 or SR44)
Battery capacity Approx 4.5 hours working continuously
Operating Temperature 0℃~40℃
Humidity <85%
Dimension 150mm*22*18mm
Dimension Weight 55g(including batteries)



Standard delivery
• Main unit
• Battery
• Protection pocket
• Certificate
• Instruction manual
• Warranty card



Portable Vibration Meter





TAG: Digital Vibration Testing Machine      Vibration Meter     Vibration Pen
