Digital Vibration Calibrator, vibration measuring instruments,calibrate accelerometer, velocity

China Digital Vibration Calibrator, vibration measuring instruments,calibrate accelerometer, velocity supplier

Large Image :  Digital Vibration Calibrator, vibration measuring instruments,calibrate accelerometer, velocity

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: VMC-5000

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export carton
Payment Terms: Western Union, T/T
Supply Ability: 500units/month
Detailed Product Description
Product Name: Digital Vibration Calibrator, Vibration Measuring Instruments,calibrate Accelerometer, Velocity Frequency: 10, 20, 40, 80, 160, 320, 640, 1280Hz +0.01%
Unit: Acceleration: M/s2 (PEAK) Velocity: Mm/s (RMS) Displacement: Um (PK-PK) Operation Temperature: 0~50degree
Storage Temperature: -20 To 70 Degree Humidity: 90% Non –condensing
Proximity Probe Linearity: 5mm And 8mm Display: 3 1/2 Digit Display For Acceleration, Velocity Or Displacement





Digital Vibration Calibrator, vibration measuring



instruments,calibrate accelerometer, velocity





Digital Vibration Calibrator, vibration measuring instruments,calibrate accelerometer, velocity





Application for Vibration Calibrator:



1.Can be used to calibrate vibration accelerometer, velocity and proximity transducer and also a



vibration measuring instruments. Standard sine signals at frequency 10, 20, 40, 80, 160, 320,



640 and 1280 Hz



2.Can be generated from the calibrator the amplitude of the acceleration, velocity and



displacement



3.Can be defined through potentiometers and shown on digital displays. Either horizontal or



vertical vibration can be generated.



4.VMC-5000 vibration calibrator combines sine signal generator, power amplifier,



standard transducer and a shaker in one and features a small volume, high accuracy



and easy operation. It can be used either in laboratory or on site.



Specifications:



Frequency: 10, 20, 40, 80, 160, 320, 640, 1280Hz +0.01%





Unit:



Acceleration: m/s2 (PEAK)



Velocity: mm/s (RMS)



Displacement: um (PK-PK)





Amplitude accuracy:



Acceleration (30m/s2 pk, 80Hz) 40Hz to 320Hz + 0.3dB + 1digit



10Hz to 1280Hz + 0.5dB +1digit



Velocity ( 25mm/sec pk ,80Hz) 40Hz to 320Hz +0.5dB +1digit



Displacement (10μm pk-pk, 80Hz) 40Hz to 320Hz + 0.5dB + 1digit



Proximity probe linearity



Prode: 5mm and 8mm probes Range: 0~4.0mm



Display: 3 1/2 digit display for acceleration, velocity or displacement





Maximum vibration amplitude and maximum load:



Because of the vibrostand used in VMC-5000 Vibration Calibrator is rather small, during the



calibration of transducers of different weight under different frequencies the output amplitude of



the calibrators are also different. Maximum vibration amplitude and maximum load are related to



the maximum acceleration. Maximum velocity and maximum displacement output generated from



the calibrator under a certain frequency and with a certain weight of the transducer to be



calibrated.





The specific figures can be seen in the following table.



Wt



Freq

<100g <250g <650g
a(m/S2) v(mm/S) d(μm) a(m/S2) v(mm/S) d(μm) a(m/S2) v(mm/S) d(μm)
10Hz 2.5 28 1300 3.5 40 1800 4 45 2000
20Hz 15 85 1900 10 60 1300 5 28 640
40Hz 60 170 2000 35 100 1100 12 35 380
80Hz 100 141 800 40 60 320 14 20 110
160Hz 75 53 150 35 25 70 12 8.5 24
320Hz 50 18 25 30 10 15 10 3.5 5
640Hz 30 5 3 20 3.5 2 6 1 *
1280Hz 23 2 * 10 0.9 * 5 0.4 *







Note: With higher frequency the value of the displacement of vibration is very small so there



will be no vibration signal output from the calibrator.



Size: 280 x 180 x 250(mm)



Weight: 20lb,9kgs



Temperature: Operation: 0oC to 50 oC



Storage: -20 oC to 70 oC



Humidity: 90% non –condensing

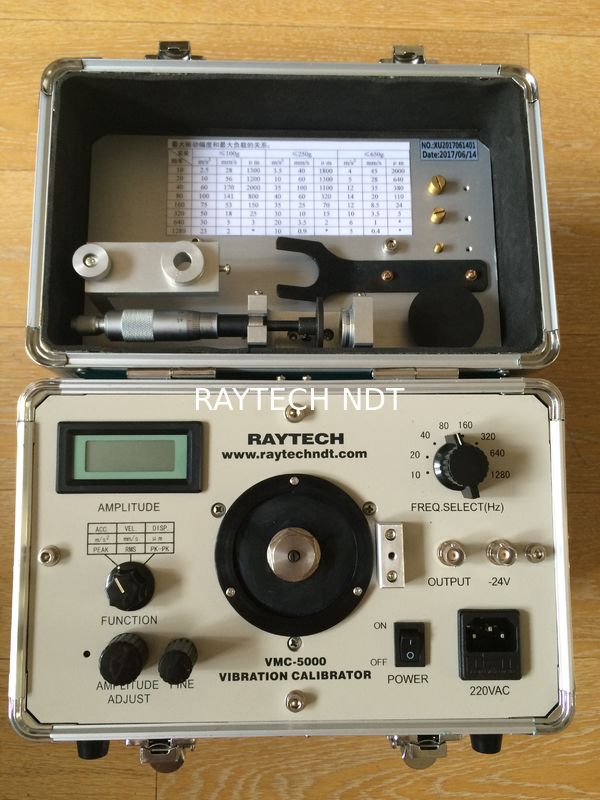

The control panel of VMC-5000 Vibration Calibrator is shown as following:



Digital Vibration Calibrator, vibration measuring instruments,calibrate accelerometer, velocity



1 Vibration amplitude output display Showing the amplitude of the different vibration signal output



of the calibrator



2 Calibration potentiometer



3 Function selecting switch Shifting the output of the calibrator to acceleration, velocity or



displacement



4 Potentiometer for adjusting the output amplitude



Adjusting the potentiometer to change the output vibration amplitude



5 Adjusting the the output vibration amplitude slowly



6 The table for fixing the transducer to be calibrated



7 The thread hole for fixing the stand of proximity probe





During the calibration of proximity probe, the stand of the transducer is fixed on the control panel



through this thread hole.



8 Power switch 220 VAC



9 Socket for 220 V AC power input



Used for connecting 220 V AC power.



10. Socket for power output



For monitoring the wave shape of the output signal of the power amplifier of the calibrator.



11 Output socket of – 24 V voltage



Providing power at – 24 V for proximitor during the calibration of proximity probe.



12 Frequency selecting switch
