3 Parameter Vibration Meter, Pen Type Vibration Meter, Portable Vibration Tester VM7003

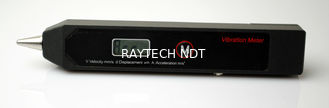

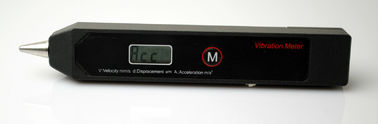

Large Image : 3 Parameter Vibration Meter, Pen Type Vibration Meter, Portable Vibration Tester VM7003

Product Details:

Place of Origin:	China
Brand Name:	RAYTECH
Certification:	ISO CE
Model Number:	VM7003

Payment & Shipping Terms:

Minimum Order Quantity:	1unit
Packaging Details:	Standard Export Carton
Delivery Time:	5days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	5000units per month

Contact Now

Detailed Product Description

Product Name:	3 Parameter Vibration Meter, Pen Type Vibration Meter, Portable Vibration Tester VM7003	Displacement:	1—1999 M M Eq. Peak-peak
Velocity:	0.1—199.9 Mm/s True RMS	Acceleration:	0.1—180 M/s2 Eq. Peak
Frequency Response:	10-1000Hz	Temperature Range:	0 - 50°C

3 Parameter Vibration Meter, Pen Type Vibration Meter, Portable Vibration Tester VM7003

Extremely reliable and potable, low cost instrument specifically designed for on site maintenance in your plant or workshop.

This easy to use instrument requires little operator training.

It features with one-button operation, holding function and automatic power off.

With remote switch and magnet base to avoid handheld problem, get reliable and consistent data.

Specification:

Amplitude Ranges:	Displacement 1—1999 m m Eq. peak-peak
	Velocity 0.1—199.9 mm/s true RMS
	Acceleration 0.1—180 m/s2 Eq. Peak
Overall accuracy	±5% + 2 digits
Temperature range	0 - 50°C
Frequency response	10-1000Hz

Standard delivery:

Vibration meter

Small pocket bag

Remote switch

Magnet base

User’s Manual

Battery (Inside meter)

Certificate

Option:

Single parameter meter (Velocity RMS or Displacement p_p) available

5 parameter meter (Acc Peak, Vel RMS/Peak, Disp p_p, Env) available

TAG: Digital Vibration Testing Machine Portable Vibration Meter Vibration Pen
