Digital LCD Display Brinell Rockwell Vickers Hardness Tester Heightening Type HBRV-187.5DL

China Digital LCD Display Brinell Rockwell Vickers Hardness Tester Heightening Type HBRV-187.5DL supplier
Digital LCD Display Brinell Rockwell Vickers Hardness Tester Heightening Type HBRV-187.5DL supplier Digital LCD Display Brinell Rockwell Vickers Hardness Tester Heightening Type HBRV-187.5DL supplier

Large Image :  Digital LCD Display Brinell Rockwell Vickers Hardness Tester Heightening Type HBRV-187.5DL

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: HBRV-187.5DL

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Digital LCD Display Brinell Rockwell Vickers Hardness Tester Heightening Type HBRV-187.5DL Rockwell Test Force: 60-150kgf
Brinell Test Force: 30-187.5kgf Vickers Test Force: 30-100kgf
Magnification: Brinell: 37.5×, Vickers: 75× Resolution: Rockwell: 0.1HR, Brinell: 0.5μm, Vickers: 0.25μm



Digital LCD Display Brinell Rockwell Vickers Hardness Tester



Heightening Type HBRV-187.5DL



Brinell Rockwell Vickers Hardness Tester Heightening Type







Main Function:



HBRV-187.5DL Digital Brinell Rockwell & Vickers hardness tester is equipped with a newly-designed large



displaying screen with good reliability, excellent operation and easy watching, thus it is a high-tech



product combining the optic, mechanic and electric features. It has Brinell, Rockwell and Vickers three test



modes and 7 level of test forces, which can test several kinds of hardness. Test force loading, dwell,



unload adopts automatic shifting for easy and fast operation. It can show and set the present scale, test



force, test indenter, dwell time and hardness conversion; the main function is as follows: Selection of



Brinell, Rockwell and Vickers three test modes; Conversion scales of different kinds of hardness; Test



results can be saved for checking or be printed out, automatic calculation of maximum, minimum and



average value; With RS232 interface for connecting to the computer. This is the heightening type which is



more convenient for measuring the large samples.



Application range:



Suitable for hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals,



various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals,



surface heat treating and chemical treating materials etc.





Technical Specification:



Model HBRV-187.5DL
Rockwell Test Force 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)
Brinell Test Force 30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf (980.7N), 187.5kgf (1839N)
Vickers Test Force 30kgf (294.2N), 100kgf (980.7N)
Indenter

Diamond Rockwell Indenter, Diamond Vickers Indenter,

ф1.588mm, ф2.5mm, ф5mmBall Indenter

Loading Method Automatic (Loading/Dwell/Unloading)
Hardness Reading LCD Screen Display
Test Scale HRA, HRB, HRC, HRD, HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW10/100, HV30, HV100
Conversion Scale HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW
Magnification Brinell: 37.5×, Vickers: 75×
Resolution Rockwell: 0.1HR, Brinell: 0.5μm, Vickers: 0.25μm
Dwell Time 0~60s
Data Output Built-in Printer,RS232 Interface
Max. Height of Specimen Rockwell: 400mm, Brinell: 330mm, Vickers: 345mm
Throat 165mm
Power Supply AC220V,50Hz
Execute Standard

ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2

ISO 6506,ASTM E10-12,JIS Z2243,GB/T 231.2

ISO 6507,ASTM E92,JIS Z2244,GB/T 4340.2

Dimension 500×225×880mm,Packing Dimension: 650×370×1140mm
Weight Net Weight: 100kg,Gross Weight: 120kg




Packing List:



Name Qty Name Qty
Instrument Main Body 1 set Diamond Rockwell Indenter 1 pc
Diamond Vickers Indenter 1 pc ф1.588mm, ф2.5mm, ф5mmBall Indenter each 1 pc
Slipped Test Table 1 pc Middle Plane Test Table 1 pc
Large Plane Test Table 1 pc V-shaped Test Table 1 pc
15× Digital Measuring Eyepiece 1 pc 2.5×, 5× Objective each 1 pc

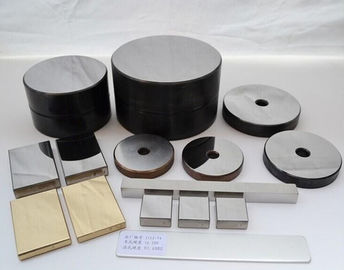

Microscope System (include the inside light and outside light) 1 set Hardness Block 150~250 HBW 2.5/187.5 1 pc
Hardness Block 60~70 HRC 1 pc Hardness Block 20~30 HRC 1 pc
Hardness Block 80~100 HRB 1 pc Hardness Block 700~800 HV30 1 pc
Weights 0, 1, 2, 3, 4 5 pcs Power Cable 1 pc
Fuse 2A 2 pcs Horizontal Regulating Screw 4 pcs
Level 1 pc Spanner 1 pc
Screw Driver 1 pc Anti-dust Cover 1 pc
Usage Instruction Manual 1 copy
