Electronic Motorized Test Force with CPU Control Brinell Hardness Tester DHB-3000

Certification
Good quality X Ray Flaw Detector for sales
Good quality X Ray Flaw Detector for sales
Easy to talk with, very professional and fast service, the quality is super good.

—— Ali Sharif

I'm Online Chat Now

Electronic Motorized Test Force with CPU Control Brinell Hardness Tester DHB-3000

China Electronic Motorized Test Force with CPU Control Brinell Hardness Tester DHB-3000 supplier
Electronic Motorized Test Force with CPU Control Brinell Hardness Tester DHB-3000 supplier Electronic Motorized Test Force with CPU Control Brinell Hardness Tester DHB-3000 supplier

Large Image :  Electronic Motorized Test Force with CPU Control Brinell Hardness Tester DHB-3000

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: DHB-3000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Electronic Motorized Test Force With CPU Control Brinell Hardness Tester DHB-3000 Testing Range: 8~650 HBW
Test Force: 62.5kgf~3000kgf Max, Height Of The Specimen: 225mm
Magnification Of The Microscope: 20X Power Supply And Voltage: AC220V/50-60Hz



Electronic Motorized Test Force with CPU Control Brinell



Hardness Tester DHB-3000



Brinell Hardness Tester



Usage Range



The Brinell hardness tester that shows the largest indentation among all the hardness tests is



able to reflect the comprehensive features of the material ,and the test is unaffected by the



organization micro-dioptre and the compositional unevenness of the speciment ;and hence it is a



hardness testing with high precision. The Brinell hardness test is widely used in such industrial



fields as metallurgy ,forging ,casting ,unhardened steel and nonferrous metals industries, as well



as in the laboratories,universities ,colleges and s-cientific research institutes.



Mains Features



DHB-3000 Electronic Brinell Hardness Tester is a unified product combining the precise



mechanical structure with the computer control by means of the mechanical and electrical circuit



system,and so it is the more advanced brinell hardness tester in today’s world. The instrument



adopts the motorized test force application without weight blocks, and uses 0.5‰ accuracy



compression sensor to feedback the information and the CPU control system to automatically



compensate the test force lost during the testing. The test force and the load dwell time can be



directly set pressing the selected keys on the touch-keyboard, with reliable repetition, precise



reading and easy operation.



Main Parameters





Testing range:( 8~650)HBW





Test Force:612.9N(62.5Kgf),980N(100Kgf),1226N(125Kgf),1839N(187.5Kgf),2452N(250Kgf),4900N(500Kgf),7355N(750Kgf),9800N(1000Kgf),14700N(1500Kgf),29400N(3000kgf)





Accuracy of Displayed Hardness Value





Hardness Range(HBW)



Max tolerance% Repetition%



≤ 125



± 3 ≤ 3.5



125<HBW≤225



± 2.5 ≤ 3.0



> 225



± 2.0 ≤ 2.5



Max, Height of the speciment: 225mm





Max Distance from the indenter center to the instrument panel: 135mm





Magnification of the microscope: 20X





Min Reading Grade of the Drum wheel of the microscope: 0.005mm





Power supply and Voltage: AC220V/50-60Hz





Main Accessories





Tables:Large,Small and V-shaped each





Hard Alloyed Steel Ball Indenters: ¢2.5mm, ¢5mm, and ¢10mm each.





One Microscope: 20X

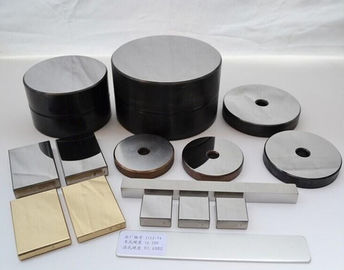

Two Standard Hardness Blocks










TAG:   Electronic Brinell Hardness Tester


 Hardness Meter     Motorized Test Force Brinell HardnessTesting Machine
