RS232 Multi-Functional Digital Brinell Rockwell Vickers Hardness Tester HBRV-187.5D

Certification
Good quality Portable Hardness Tester for sales
Good quality Portable Hardness Tester for sales
Easy to talk with, very professional and fast service, the quality is super good.

—— Ali Sharif

I'm Online Chat Now

RS232 Multi-Functional Digital Brinell Rockwell Vickers Hardness Tester HBRV-187.5D

China RS232 Multi-Functional Digital Brinell Rockwell Vickers Hardness Tester HBRV-187.5D supplier
RS232 Multi-Functional Digital Brinell Rockwell Vickers Hardness Tester HBRV-187.5D supplier RS232 Multi-Functional Digital Brinell Rockwell Vickers Hardness Tester HBRV-187.5D supplier

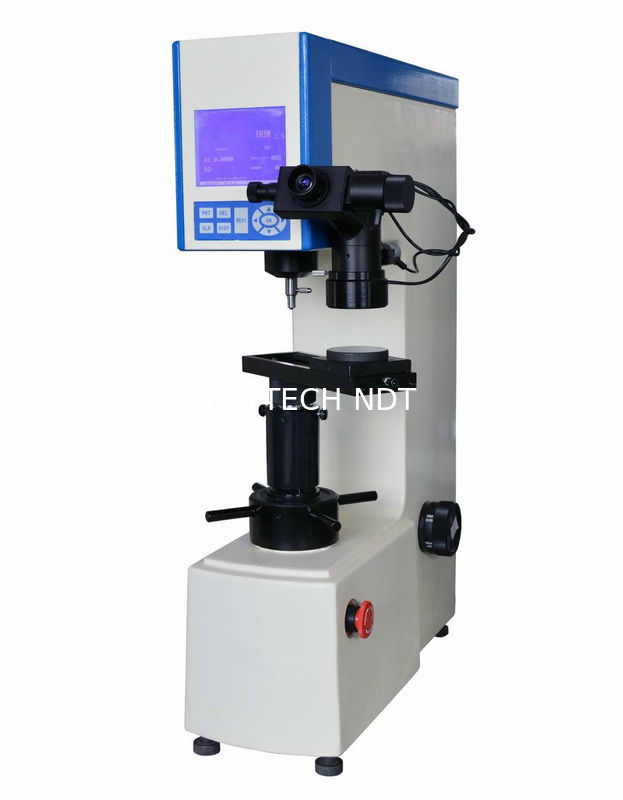

Large Image :  RS232 Multi-Functional Digital Brinell Rockwell Vickers Hardness Tester HBRV-187.5D

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: HBRV-187.5D

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: RS232 Multi-Functional Digital Brinell Rockwell Vickers Hardness Tester HBRV-187.5D Rockwell Test Force: 60-150kgf
Brinell Test Force: 30-187.5kgf Vickers Test Force: 30-100kgf
Magnification: Brinell: 37.5×, Vickers: 75× Resolution: Rockwell: 0.1HR, Brinell: 0.5μm, Vickers: 0.25μm



RS232 Multi-Functional Digital Brinell Rockwell Vickers



Hardness Tester HBRV-187.5D



Digital Brinell Rockwell Vickers Hardness Tester





Main Function:



HBRV-187.5D Digital Brinell Rockwell & Vickers hardness tester is equipped with a newly-designed large



displaying screen with good reliability, excellent operation and easy watching, thus it is a high-tech



product combining the optic, mechanic and electric features. It has Brinell, Rockwell and Vickers three test



modes and 7 level of test forces, which can test several kinds of hardness. Test force loading, dwell,



unload adopts automatic shifting for easy and fast operation. It can show and set the present scale, test



force, test indenter, dwell time and hardness conversion; the main function is as follows: Selection of



Brinell, Rockwell and Vickers three test modes; Conversion scales of different kinds of hardness; Test



results can be saved for checking or be printed out, automatic calculation of maximum, minimum and



average value; With RS232 interface for connecting to the computer.



Application range:



Suitable for hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals,



various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals,



surface heat treating and chemical treating materials etc.



Technical Specification:



Model HBRV-187.5D
Rockwell Test Force 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)
Brinell Test Force 30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf (980.7N), 187.5kgf (1839N)
Vickers Test Force 30kgf (294.2N), 100kgf (980.7N)
Indenter

Diamond Rockwell Indenter, Diamond Vickers Indenter,

ф1.588mm, ф2.5mm, ф5mmBall Indenter

Loading Method Automatic (Loading/Dwell/Unloading)
Hardness Reading LCD Screen Display
Test Scale HRA, HRB, HRC, HRD, HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW10/100, HV30, HV100
Conversion Scale HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW
Magnification Brinell: 37.5×, Vickers: 75×
Resolution Rockwell: 0.1HR, Brinell: 0.5μm, Vickers: 0.25μm
Dwell Time 0~60s
Data Output Built-in Printer,RS232 Interface
Max. Height of Specimen Rockwell: 175mm, Brinell: 100mm, Vickers: 115mm
Throat 165mm
Power Supply AC220V,50Hz
Execute Standard

ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2

ISO 6506,ASTM E10-12,JIS Z2243,GB/T 231.2

ISO 6507,ASTM E92,JIS Z2244,GB/T 4340.2

Dimension 520×240×740mm,Packing Dimension: 650×370×980mm
Weight Net Weight: 80kg,Gross Weight: 105kg


Packing List:



Name Qty Name Qty
Instrument Main Body 1 set Diamond Rockwell Indenter 1 pc
Diamond Vickers Indenter 1 pc ф1.588mm, ф2.5mm, ф5mmBall Indenter each 1 pc
Slipped Test Table 1 pc Middle Plane Test Table 1 pc
Large Plane Test Table 1 pc V-shaped Test Table 1 pc
15× Digital Measuring Eyepiece 1 pc 2.5×, 5× Objective each 1 pc

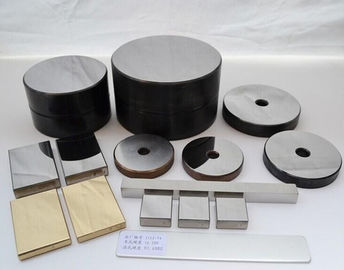

Microscope System (include the inside light and outside light) 1 set Hardness Block 150~250 HBW 2.5/187.5 1 pc
Hardness Block 60~70 HRC 1 pc Hardness Block 20~30 HRC 1 pc
Hardness Block 80~100 HRB 1 pc Hardness Block 700~800 HV30 1 pc
Weights 0, 1, 2, 3, 4 5 pcs Power Cable 1 pc
Fuse 2A 2 pcs Horizontal Regulating Screw 4 pcs
Level 1 pc Spanner 1 pc
Screw Driver 1 pc Anti-dust Cover 1 pc
Usage Instruction Manual 1 copy
