Digital Electronic LCD Screen , CPU Control Brinell Hardness Tester MHB-3000

China Digital Electronic LCD Screen , CPU Control Brinell Hardness Tester MHB-3000 supplier
Digital Electronic LCD Screen , CPU Control Brinell Hardness Tester MHB-3000 supplier Digital Electronic LCD Screen , CPU Control Brinell Hardness Tester MHB-3000 supplier

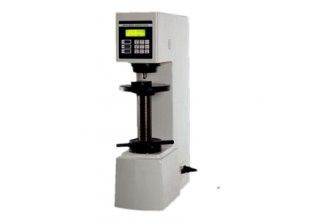

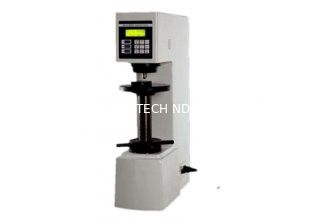

Large Image :  Digital Electronic LCD Screen , CPU Control Brinell Hardness Tester MHB-3000

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: MHB-3000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Digital Electronic LCD Screen , CPU Control Brinell Hardness Tester MHB-3000 Test Force: 62.5kgf~3000kgf
Max, Height Of The Specimen: 225mm Amplification Of The Digital Micro Eyepiece: 15×(30×)
Power Supply And Voltage: AC220V/50-60Hz Testing Range: (8~650)HBW



Digital Electronic LCD Screen , CPU Control Brinell Hardness



Tester MHB-3000



Brinell Hardness Tester



Detailed Product Description





Main characteristic features:




MHB-3000 Digital Electronic Brinell Hardness Tester is a unified product combining optical,



mechanic and electronic techniques, which is adopted the precise mechanical structure and



computer control closed-circuit system. Without the weights, the instrument loads and unloads the



testing force with the motor. By means of the 0.5‰ accuracy compression sensor to feedback



the information and the CPU to control, the instrument compensates automatically the testing



force lost during the testing.





Equipped with a digital micro eyepiece on the instrument, the length of indentation can be



measured by this eyepiece directly. All testing data such as the testing method, the testing force



value, the length of testing indentation, the hardness value and the dwell time of testing force can



be showed on the LCD screen, without inputting the value of diagonal length for the indentation



and free from looking up the hardness value form the hardness table as well, therefore the



reading data are more accuracy and operation of this instrument is more easy.

Technical Features and Standard Accessories:


Testing Range:(8~650)HBW


TestForce:612.9N(62.5kg),980N(100kg),1226N(125kg),1839N(187.5kg),2452(250kg),4900N(5



00kg),7355N(750kg),9800N(1000kg),14700N(1500kg),29400N(3000kg)


Max Height of the Specimen:225mm


Max Distance from the lndenter Center to the Instrument Panel:135mm


Amplification of the Digital Micro Eyepiece:15×(30×)


Min.Graduation Value of the Drum Wheel of the Digital Micro Eyepece:0.0025mm


Powerm Voltage:AC220V 50/60Hz




Main Accessories:



Testing Table



1PC



Large, Small and V-Shaped



each 1 PC



Hard Alloyed Steel Ball Indenters:Φ2.5mm,Φ5mm,Φ10mm



each 1PC



One 15× Digital Micro Eyepec



1PC



Two Standard Hardness Blocks



(HBW 3000/10 150-250)(HBW 750/5 75-125)



Weight



160kg (Gross Weight) 130kg(Net Weight)



Package Dimensions



893×720×470(L×W×H)
