Barcol Impressor Hardness Tester, Portable Indentation Brinell Hardness Meter HBA-1

China Barcol Impressor Hardness Tester, Portable Indentation Brinell Hardness Meter HBA-1 supplier
Barcol Impressor Hardness Tester, Portable Indentation Brinell Hardness Meter HBA-1 supplier Barcol Impressor Hardness Tester, Portable Indentation Brinell Hardness Meter HBA-1 supplier

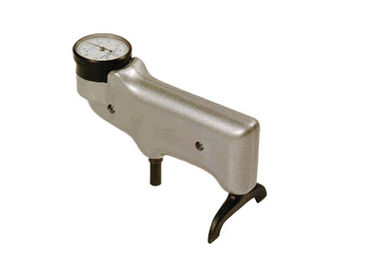

Large Image :  Barcol Impressor Hardness Tester, Portable Indentation Brinell Hardness Meter HBA-1

Product Details:

Place of Origin: CHINA
Brand Name: RAYTECH
Certification: ISO CE
Model Number: HBA-1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard Export Carton
Delivery Time: 5~8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Barcol Impressor Hardness Tester, Portable Indentation Brinell Hardness Meter HBA-1 Indenter: 26°panhead Cone, Head Face Diameter, 0.176mm
Testing Range: 0~100HBa,equivalent To 25~150HBW Resolution: 0.5HBa
Comply To Standard: ASTM B648-2000 Net Weight: 0.5kgs



Barcol Impressor Hardness Tester, Portable Indentation



Brinell Hardness Meter HBA-1





Barcol Impressor Hardness Tester



Introduction



A portable indentation hardness tester.



Single hand operation; no operating experience required; can test any workpiece which is



reachable in any site.



Wide valid testing range equivalent to Brinell hardness 25-150HBW. Used to test the hardness of



all kinds of aluminum, from very soft aluminum to very hard aluminum alloys.



Extended application. Model HBA-1 is applied to test the hardness of aluminum, aluminum alloys,



copper, copper alloys, fiber reinforced plastics and rigid plastics etc. The improved model of it is



available to test very soft metals such as lead and tin and other soft materials such as soft



plastics, rubber, felt and leather etc.



High sensitivity. Featured with 100 scales, much more sensitive than Webster hardness testers



applied in aluminum alloys industry.



Used to test super large and thick worpieces and assembly parts.



Easy conversion. The test results can be converted to HB, HR, HV and HW easily through



conversion table.



Comply to standard ASTM B648-2000.





Main Technical Parameters



Indenter: 26°panhead cone, head face diameter


0.176mm


Testing Range: 0~100HBa,equivalent to 25~150HBW


Resolution: 0.5HBa


Indication error: hardness range 42~52HBa, ±2HBa


hardness range 84~88HBa ±1HBa


Repeatability error: hardness range 42~52HBa, ±2HBa


hardness range 84~88HBa ±1HBa


Net weight: 0.5kg





Application



Barcol Impressor is mainly applied to test aluminum and aluminum alloys. Webster is used to test



aluminum alloy extrusions, sheet and tubings. Barcol Impressor is suitable to test pure aluminum,



soft aluminum alloys, super thick aluminum alloys, aluminum alloys bars and assembled aluminum



alloys parts (e.g. al-alloy door &window, scaling ladder etc.)


Relevant Standard: ASTM B648 (Test Method for Indentation Hardness of Aluminum Alloys by



Means of a Barcol Impressor)



Barcol Impressor is also used to test fiber reinforced plastics and rigid plastics etc.


Relevant Standard: ASTM D2583-07(Test Method for Indentation Hardness of Rigid Plastics by



Means of a Barcol Impressor)



The improved models of Barcol Impressor are available to test softer plastics, very soft metals,



rubber and leather etc.



Standard Package





Tester



1pc



Spare indenters



2 pcs



High value Standard hardness block



1 pc



Low value Standard hardness block



1 pc



Calibration wrench



1pc



Supporting foot



1pc



Carrying case



1pc
