Horizontal Digital LED Profile Projector, Optical measuring Profile Projector RPH400-3015

China Horizontal Digital LED Profile Projector, Optical measuring Profile Projector RPH400-3015 supplier
Horizontal Digital LED Profile Projector, Optical measuring Profile Projector RPH400-3015 supplier Horizontal Digital LED Profile Projector, Optical measuring Profile Projector RPH400-3015 supplier

Large Image :  Horizontal Digital LED Profile Projector, Optical measuring Profile Projector RPH400-3015

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: CE ISO
Model Number: RPH400-3015

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Package
Delivery Time: 5~8working days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Horizontal Digital LED Profile Projector, Optical Measuring Profile Projector RPH400-3015 Working Stage Size: 455x126mm
Working Stage Travel: 300x150mm Focusing: 120mm
Resolution: 0.0005 Mm Digital Readout: DP400



Horizontal Digital LED Profile Projector, Optical measuring

Profile Projector RPH400-3015


Horizontal Profile Projector




Features:



1. The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive



more comfortable and stable;



2. Coating process reflector, clearer image and great dustproof;



3. Adjustable contour and surface illumination, to meet with difference workpiece demand;



4. Imported high light and long using life LED illumination, to ensure precision measurement



demand;



5. High resolution optical system with clear image and magnification error is less than 0.08%;



6. Powerful Bi-axial fan cooling system,highly increase using life;

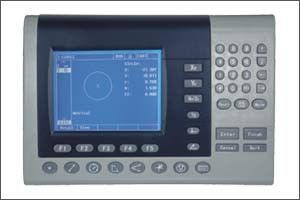

7. Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;



8. Built-in Mini-printer, can print and save data;



9. With standard 10X objective, optional 5X,20X,50X,100X objective,rotary table, foot



switch ,clamp, etc.





Specification:





Product Name



Ø400mm Digital Horizontal Profile Projector



Mode



RPH400-3015



Code #



512-400



Working Stage Size



455x126mm



Working Stage Travel



300x150mm



Focusing



120mm



Accuracy



≤3+L/200(um)



Resolution



0.0005 mm



Loading Weight



15Kg



Screen





Dia:412mm,Measurement Range ≥ Ø400





Rotation Angle 0~360° ;Resolution: 1’or 0.01°,accuracy 6’





Digital Readout



DP400 (510-340)Multifunction colorful LCD digital readout
Illumination



Contour Illumination:3.2V/10W LED;Surface Illumination:220V/130W LED



Working Environmental



Temp:20℃±5℃,Humidity:40%-70%RH



Power Supply



AC110V/60Hz; 220V/50Hz,150W



Dimension



1099x1455x633mm



Package Dimension



1157x1355x653mm



Gross/Net Weight



350/300kg
