Ultrasonic flaw detector, Digital Portable UT flaw detector, Metal welding test RFD810

China Ultrasonic flaw detector, Digital Portable UT flaw detector, Metal welding test RFD810 supplier
Ultrasonic flaw detector, Digital Portable UT flaw detector, Metal welding test RFD810 supplier Ultrasonic flaw detector, Digital Portable UT flaw detector, Metal welding test RFD810 supplier

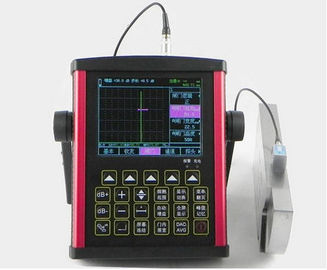

Large Image :  Ultrasonic flaw detector, Digital Portable UT flaw detector, Metal welding test RFD810

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: RFD810

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Flaw Detector, Digital Portable UT Flaw Detector, Metal Welding Test RFD810 Measuring Range: 0-10000mm
Gain: 0-130dB D-Delay: -20µs~+3400µs
Sound Speed: 1000-20000m/s Power: Li-battery





Ultrasonic flaw detector, Digital Portable UT flaw detector,



Metal welding test RFD810



Portable Ultrasonic flaw detector




Features:



1.The two hole test method: automatic calibration value K, frontier, zero, material velocity;



2.100 independent detection channels, free storage, playback 300 A sweep waveform and data



(can be expanded according to the needs of users);



3.DAC, AVG curves and can be sectioned, sampling point is not restricted, and can make



correction and compensation;



4.Automatic recording inspection process, and can be dynamic playback;



5.Oblique angle probe (K) automatic calculation;



6.Two detection methods: peak, edge



7.Three kinds of probe mode: single, double, penetration;



8.High sampling rate, low noise;



9.Echo frequency analysis.



10.Five-range repetition frequency settings





Characteristics of the instrument:



1.Communication with the computer, the realization of computer data management,



2.well you can export Excel format, A4 paper inspection report;



3.Can be upgraded instrumentation system using the PC end of the communication



software;



4.High performance environmental safety of lithium battery can work continuously 10



hours;



5.IP65 standard aluminum magnesium alloy shell, durable, waterproof and dustproof,



anti-interference ability is excellent;



6.Large screen super bright display, adjustable brightness, suitable for light, weak light



environment;





Technical parameter:





RFD-810

Measuring range

0-10000mm

Gain

0-130dB

D-Delay

-20µs~+3400µs

Resolution

0.1mm(2.5mm~100mm) 1mm(>100)

P-Delay

0µs~99.99µs

Sound speed

1000-20000m/s

Temperature

10℃~50℃

Humidity

20%~90%RH

Power

Li-battery

Working time

>10 hours

Display

LED true color

Size

225*170*50mm

Weight

1.8kg





Standard Configuration




Name

QTY

1

Main unit

1

2

power adaptor

1

3

probe connecting cable

2

4

Instrument case

1

5

Instruction manual

1

6

Straight probe 10mm 4MHz

1

7

Angle probe 8x9 60°4MHz

1

8

Certificate of approval

1

9

Warranty card

1

10

Software and cable

1




































 Ultrasonic flaw detector, Digital Portable UT flaw detector, Metal welding test RFD810
