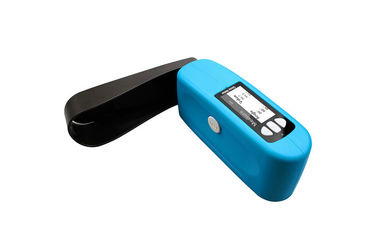

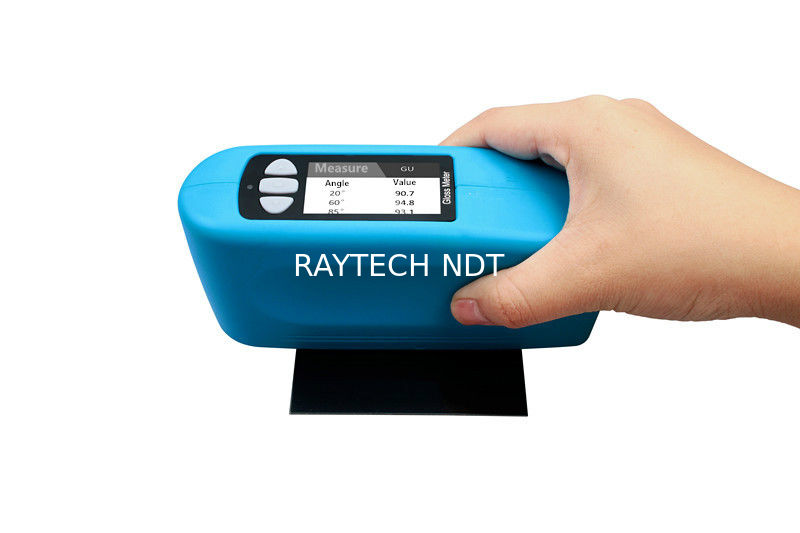

RG268 Digital portable Gloss Meter, Triangle Gloss Meter, 20 degree 60degree 85degree

China RG268 Digital portable Gloss Meter, Triangle Gloss Meter, 20 degree 60degree 85degree supplier
RG268 Digital portable Gloss Meter, Triangle Gloss Meter, 20 degree 60degree 85degree supplier RG268 Digital portable Gloss Meter, Triangle Gloss Meter, 20 degree 60degree 85degree supplier RG268 Digital portable Gloss Meter, Triangle Gloss Meter, 20 degree 60degree 85degree supplier

Large Image :  RG268 Digital portable Gloss Meter, Triangle Gloss Meter, 20 degree 60degree 85degree

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: RG268

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Digital Portable Gloss Meter, Triangle Gloss Meter Measure Range: 20°:0-2000 60°:0-1000 85°:0-160
Measuring Angle: 20° 60° 85° Measuring Spot: 20°: 10x10 60°:9x15 85°:5x18
Volume: 159x49x72 Weight: 500g



RG268 Digital portable Gloss Meter, Triangle Gloss Meter, 20



degree 60degree 85degree



RG268 Digital portable Gloss Meter, Triangle Gloss Meter, 20 degree 60degree 85degree



RG268 gloss meter is produced according to the national verification regulation of JJG696 standard,



adopt long life light source, good repeatability, small volume, high precision and good stability. It is mainly

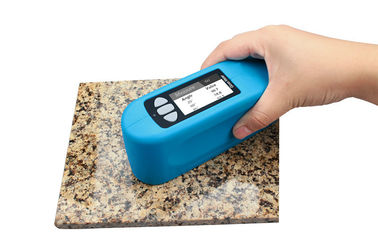

used coatings, printing ink, paint, paint, wood, marble,   granite, bo to change polishing brick, brick of



pottery and porcelain, plastic, paper, metal and non-metallic materials to the surface of the mirror gloss



measurement.







Gloss meter RG268 functional description



(1) One button to complete triangle measurement: one operation can complete three angle measurement;



Measuring light incident angle meet ISO 2813 three measuring light incident angle. Three incidenct angle



of mirror gloss meter is 20 °, 60 °, 85 ° respectively;



(2) Optional angle mode: choose measuring angle or angle combination according to user needs.



(3) Manually entering standard samples gloss data;



(4) Humanized design, good man-machine communication interface;



(5)Three angle can store 50000 testing records, storage structure is: 100 prototypes, each prototype with



500 testing data;



(6) Data browsing and viewing function;



(7) The machine has automatic shutdown function, low power warning functions, full data storage hint



functions;



(8) USB communication interface to communicate with PC;



(9) PC software can be extended more functions.





Attachment description



(1) Power adapter: standard + 5V, 2A external power supply;



(2) Standard board: provide calibration criterion.



(3) USB cable: connect instrument to PC.





RG268 specification:





Specification



Unit

Triangle Gloss Meter



Measuring Angle



 degree

20° 60° 85°

Measuring Range

GU

20°:0-2000

60°:0-1000

85°:0-160

Measuring Spot

mm

20°: 10x10

60°:9x15

85°:5x18



Measuring Spot



GU

0-1000:0.1  1000-2000:1



Repeatability



GU

0-100:0.2 >100:0.2%



Indication Error



GU

±1.5



Zero Error



GU

0.2



Working Temperature Range



10℃ - 40℃



Storage Temperature Range



-10℃ - 70℃



Humidity Range





Relative humidity less than 85%,without condensation



Power Adapter





Section 2 5 alkaline batteries/power adapter



Volume



mm

159x49x72



Weight



g

500
