Diameter 300mm Digital Vertical Profile Projector, Optical Measuring Profile Projector RVP300-1510
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Diameter 300mm Digital Vertical Profile Projector, Optical Measuring Profile Projector RVP300-1510 | Metal Stage Size: | 258x308mm |
|---|---|---|---|
| Glass Stage Size: | 148x206mm | Stage Travel:X And Y-axis: | 150x100mm |
| Stage Travel:Z-axis: | 100mm | Resolution Of X And Y-scale: | 0.0005 Mm |
Diameter 300mm Digital Vertical Profile Projector, Optical
Measuring Profile Projector RVP300-1510
Diameter 300mm Digital Vertical Profile Projector, Optical Measuring Profile Projector RVP300-1510
Diameter 300mm Digital Vertical Profile Projector, Optical Measuring Profile Projector RVP300-1510
Diameter 300mm Digital Vertical Profile Projector, Optical Measuring Profile Projector RVP300-1510
Features:
1. The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive
more comfortable and stable;
2. Coating process reflector, clearer image and great dustproof;
3. Adjustable contour and surface illumination, to meet with difference workpiece demand;
4. Imported high light and long using life LED illumination, to ensure precision measurement
demand;
5. High resolution optical system with clear image and magnification error is less than 0.08%;
6. Powerful Bi-axial fan cooling system,highly increase using life;

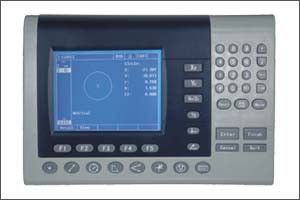

7. Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;
8. Built-in Mini-printer, can print and save data;
9. With standard 10X objective, optional 5X,20X,50X,100X objective,rotary table, foot
switch ,clamp, etc.
Specification:
| Reverse Image |
RVP300-1510 (#511-330)
|
RVP300-2010 (#511-340) | |
| Obverse Image |
RVP300-1510Z(#511-330Z)
|
RVP300-2010Z(#511-340Z) | |
| Metal Stage Size |
258x308mm
|
258x358mm | |
| Glass Stage Size |
148x206mm
|
148x256mm | |
| Stage Travel:X and Y-axis |
150x100mm
|
200 x100mm | |
| Stage Travel:Z-axis |
100mm
|
||
| Accuracy |
≤3+L/200(um)
|
||
| Resolution of X and Y-scale |
0.0005 mm
|
||
| Screen |
Diameter :Ø312mm,Effective Range ≥ Ø300(with “* ” Reticle)
|
||
|
Rotary Range: 0~360° ; Resolution of Rotary Indicator: 1’ or 0.01°
|
|||
| Digital Readout |
DP400 (510-340) Multifunctional Data Processing System
|
||
| Illumination |
Contour Illumination:3.2V/10W LED;Surface
Illumination:3.2V/10W LED
|
||
| Working Environment |
Temp 20℃±5℃,Humidity 40％－70％RH
|
||
| Power Supply |
AC110V/60Hz; 220V/50Hz, 650W
|
||
| Dimension(L×W×H) |
988x563x1224mm
|
988x563x1224mm | |
| Packing Dimension |
1200x800x1580mm
|
1200x800x1580mm | |
| Gross/Net weight |
220/170Kg
|
220/170Kg | |
