RG60 Digital Gloss Meter, measure range 0-200Gu, 60degree for paint, ink, etc

China RG60 Digital Gloss Meter, measure range 0-200Gu, 60degree for paint, ink, etc supplier
RG60 Digital Gloss Meter, measure range 0-200Gu, 60degree for paint, ink, etc supplier RG60 Digital Gloss Meter, measure range 0-200Gu, 60degree for paint, ink, etc supplier RG60 Digital Gloss Meter, measure range 0-200Gu, 60degree for paint, ink, etc supplier RG60 Digital Gloss Meter, measure range 0-200Gu, 60degree for paint, ink, etc supplier

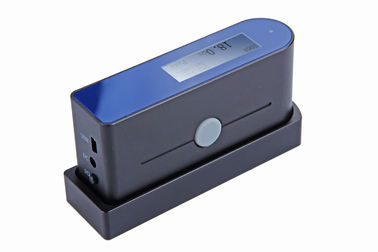

Large Image :  RG60 Digital Gloss Meter, measure range 0-200Gu, 60degree for paint, ink, etc

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: RG60

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: standard export package
Delivery Time: about 3~5days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Digital Gloss Meter Measure Range: 0-200Gu
Projection Angle: 60 Measuring Spot: 8mm*4mm
Data Storage: 100groups Optional Accessories: Micro-printer



RG60 Digital Gloss Meter, measure range 0-200Gu, 60degree



for paint, ink, etc



RG60 Digital Gloss Meter, measure range 0-200Gu, 60degree for paint, ink, etc







Product Name



Gloss meter













Model



RG60













Measurement Range



0-200Gu











Application

Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, printing, paper; Other metallic material.








Instrument Dimensions



122x34x60mm













Projection Angle



60°













Measuring Spot



(ellipse: long axis*minor axis)8mm*4mm







Measuring Mode



Automatic measurement/ manual measurement/single measurement/average measurement and cross measurement for a variety of combination measuring mode





Standard Sample Setting



Manually setting/bring out stored data for setting/manually setting tolerance







Data Storage



100 groups















set standard sample in any stored data, user-define the tolerance range







Language



Chinese/English













Output



connect the micro printer to realize real-time output of measured data





Division Value



0.1Gu













Repeatability



0.2Gu













Reproducibility



0.4Gu













Indication Error



1.0Gu













International Standard 60°

ISO-2813,ASTM-C584,ASTM-D523,DIN-67530,ASTM-D2457,JND-A60,JND-P60





National Standard 60°



GB 9754,GB 9966,GB 8807





S

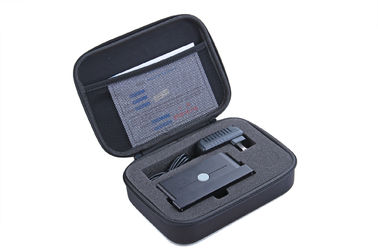

       Standard Accessories



Power adapter/user manual/warranty certification/standard board





Optional Accessories



micro-printer
