Optical measurement Profile Projector, NDT diameter 400mm Vertical Profile Projector RVP400-2515
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Optical Measurement Profile Projector, NDT Diameter 400mm Vertical Profile Projector RVP400-2515 | Metal Stage Size: | 308x408mm |
|---|---|---|---|
| Glass Stage Size: | 198x306mm | Stage Travel:X And Y-axis: | 200x150mm |
| Stage Travel:Z-axis: | 100mm | Resolution Of X And Y-scale: | 0.0005 Mm |
Optical measurement Profile Projector, NDT diameter 400mm
Vertical Profile Projector RVP400-2515
Features:
1. The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive
more comfortable and stable;
2. Coating process reflector, clearer image and great dustproof;
3. Adjustable contour and surface illumination, to meet with difference workpiece demand;
4. Imported high light and long using life LED illumination, to ensure precision measurement
demand;
5. High resolution optical system with clear image and magnification error is less than 0.08%;
6. Powerful Bi-axial fan cooling system,highly increase using life;

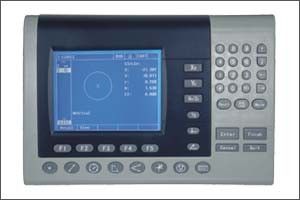

7. Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;
8. Built-in Mini-printer, can print and save data;
9. With standard 10X objective, optional 5X,20X,50X,100X objective,rotary table, foot
switch ,clamp, etc.
Specification:
| Reverse Image |
RVP400-2010 (#511-410)
|
RVP400-2515 (#511-420) | RVP400-3020 (#511-430) |
| Obverse Image |
RVP400-2010Z(#511-410Z)
|
RVP400-2515Z(#511-420Z) | RVP400-3020Z (#511-430Z) |
| Metal Stage Size |
308x408mm
|
308x408mm | 458x358mm |
| Glass Stage Size |
198x306mm
|
198x306mm | 356x248mm |
| Stage Travel:X and Y-axis |
200x100mm
|
200x150mm | 300x200mm |
| Stage Travel:Z-axis |
100mm
|
||
| Accuracy |
≤3+L/200(um)
|
||
| Resolution of X and Y-scale |
0.0005 mm
|
||
| Screen |
Dia:φ412mm,Measurement Range ≥ Ø400
|
||
|
Rotation Angle 0~360° ;Resolution: 1 or 0.01°
|
|||
| Digital Readout |
DP400 (510-340) Multifunction colorful LCD digital readout
|
||
| Illumination |
Contour Illumination:3.2V/10W LED;Surface Illumination:3.2V/10W LED
|
||
| Working Environment |
Temp 20℃±5℃,Humidity 40％－70％RH
|
||
| Power Supply |
AC110V/60Hz; 220V/50Hz,150W
|
||
| Dimension(L×W×H) |
1003x617x1309mm
|
1003x617x1309mm | 1003x617x1309mm |
| Packing Dimension |
1200x800x1580mm
|
1200x800x1580mm | 1200x800x1580mm |
| Net weight |
230Kg
|
230Kg | 230Kg |
| Gross |
280Kg
|
280Kg | 280Kg |
