Product Name: | Handheld Ultrasonic Flaw Detector, Digital Portable UT Testing Machine RFD610 | Sound Speed: | 1000 M/s~15000m/s |
---|---|---|---|
Sensitivity Leavings: | ≥62 DB | Dynamic Range: | ≥34dB |
Data Save: | 300 A-Scan Images (including Setting Of Instrument) | Port Type: | BNC/Lemo |

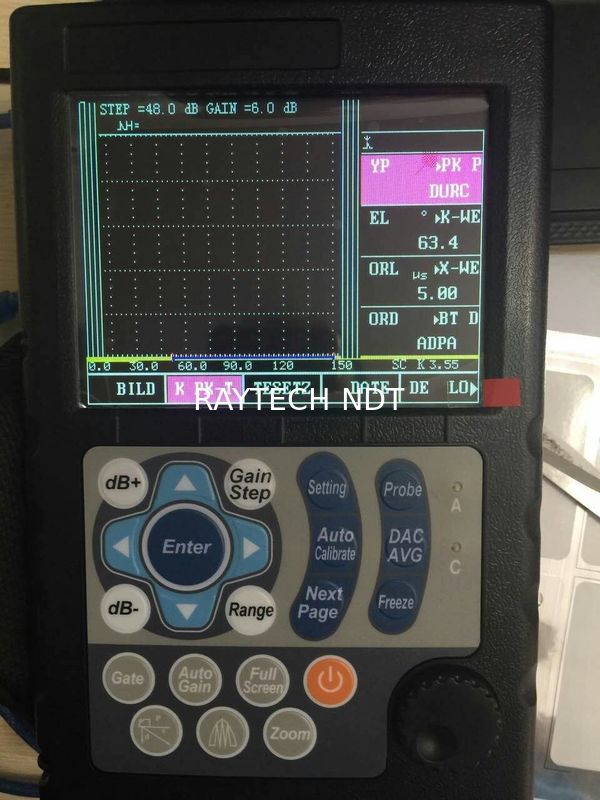

Handheld Ultrasonic Flaw Detector, Digital portable UT Testing Machine RFD610
Performance Features
1.Automated calibration of transducer Zero Offset and/or Velocity ;
2.Automated gain,Peak Hold and Peak Memory;
3.Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф);
4.Automated switch three staff gauge ((Depth d,level p,distance s);
5.100 independence setup, any criterion can be input freely, we can work in the scene without test block;
6.Big memory of 300 A graph.
7.Gate and DAC alarm;Acoustic-Optical alarm;
8.RS232/USB port,communication with pc is easy;
9.The embeded software can be online updated;
10.Li battery, continue working time up to 10 hours;
11.Display freeze;
12.Automated echo degree;
13.Angles and K-value;
14.Lock and unlock function of system parameters;
15.Dormancy and screen savers;
16.Electronic clock calendar ;
17.Two gates setting and alarm indication;
18.High-speed capture and very low noise;
19.DAC,AVG,B Scan ; Solid metal housing ;
20Automated calculate the size of the flaw with w ide bottom type in AVG function.
21.AWS D1.1;
22.6dB DAC functions;
23.Automated make video of test process and play;
24.Provides high contrast viewing of the waveform from bright, direct sunlight to completae darkness and easy to read from all angles;
25.Powerful pc software and reports can be export to excel;
Measuring Range and Measuring Error
Range of scanning: 0 mm ~10000 mm
Resolution for scanning: 0.1mm (2.5mm ~100mm)1mm (100 mm ~5000mm)
Range of gain: 0dB ~110 dB
D-Delay: -20μs~+3400μs
P-Delay: 0μs~99.99μs
Sound speed : 1000 m/s~15000m/s
Operation Environment
Temperature: -10℃~50℃
Humidity: 20%~90%RH
Free of strong magnetic field and corrosion.
Power supply
Li battery 7.4V 4800mAh
Overall Dimension and Weight
Overall dimension: 240mm×150mm×50mm
Weight: 1.6kg
Technical Parameters
Designation |
Technical Data |
Range of scanning (mm) |
Range of scanning (mm):0~10000 |
D-delay (ms) |
D-delay (ms):-20~+3400 |
P-delay (ms) |
P-delay:0.0~99.99 |
MTLVEL(m/s) |
MTLVEL:1000~15000 |
Working mode |
Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe) |
Frequency Range (MHz) |
0.5~20 |
Gain adjustment (dB) |
0~120 |
Reject |
0%~80% of screen height, step: 1% |
Vertical linear error |
Vertical linear error is not more than 3% |
Horizontal linear error |
Not more than 0.2% in the scanning range |
Sensitivity Leavings |
≥62 dB |
Dynamic range |
≥34dB |
Alarm |
Three modes, i.e. forbidden wave, loss wave and auto |
A-Scan display area |
Full screen or local |
Data save |
300 A-Scan images (including setting of instrument) |
Standard communication interface with PC |
RS232/USB |
Measuring unit |
mm/inch |
Battery |
Li battery 7.4V 4800mAh |
Power adaptor |
Input 100V~240V/50Hz~60Hz |
Working temperature |
-10℃~50℃ |
Working humidity |
20%~90% |
Port type |
BNC / LEMO |
Overall dimension (mm) |
240×150×50 |
Weight (kg) |
1.6 |
Standard Configuration
Designation |
Quantity |
Main unit |
1 |
1.5A/9V power adaptor |
1 |
probe connecting cable |
2 |
Carrying case |
1 |
Instruction manual |
1 |
Straight probe |
10mm 4MHz (One) |
Angle probe |
8×9 60°4MHz (One) |
Options
Designation |
Quantit |
Serial cable |
1 (9 pin) |
Communication software for PC |
1 set |
