UT Transducer, Ultrasonic flaw detector probe, Straight Probe, Angle Beam, Dual element
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | UT Transducer, Ultrasonic Flaw Detector Probe, Straight Probe, Angle Beam, Dual Element | Angle: | 45 And 60 And 70 And 80 Etc |
|---|---|---|---|
| Transducer Element Size: | According To Client | Frequency: | According To Client |
| Connector Location: | Top Connector, Side Connector | OEM: | Can Produce According To Customer |
UT Transducer, Ultrasonic flaw detector probe, Straight Probe, Angle Beam, Dual element
| Probe type | Designation | Angle | Transducer element size [mm] | Frequency [MHz] |
|
angle probe |
HFD 9x8-2M-35 | 35° | 8x9 | 2 MHz |
| HFD 9x8-2M-45 | 45° | 8x9 | 2 MHz | |
| HFD 9x8-2M-60 | 60° | 8x9 | 2 MHz | |
| HFD 9x8-2M-70 | 70° | 8x9 | 2 MHz | |
| HFD 9x8-2M-80 | 80° | 8x9 | 2 MHz | |
| HFD 9x8-4M-35 | 35° | 8x9 | 4 MHz | |
| HFD 9x8-4M-45 | 45° | 8x9 | 4 MHz | |
| HFD 9x8-4M-60 | 60° | 8x9 | 4 MHz | |
| HFD 9x8-4M-70 | 70° | 8x9 | 4 MHz | |
| HFD 9x8-4M-80 | 80° | 8x9 | 4 MHz |
|
angle probe |
HFD 22x20-2M-35 | 35° | 20x22 | 2 MHz |
| HFD 22x20-2M-45 | 45° | 20x22 | 2 MHz | |
| HFD 22x20-2M-60 | 60° | 20x22 | 2 MHz | |
| HFD 22x20-2M-70 | 70° | 20x22 | 2 MHz | |
| HFD 22x20-2M-80 | 80° | 20x22 | 2 MHz | |
| HFD 22x20-4M-35 | 35° | 20x22 | 4 MHz | |
| HFD 22x20-4M-45 | 45° | 20x22 | 4 MHz | |
| HFD 22x20-4M-60 | 60° | 20x22 | 4 MHz | |
| HFD 22x20-4M-70 | 70° | 20x22 | 4 MHz | |
| HFD 22x20-4M-80 | 80° | 20x22 | 4 MHz |
| Probe type | Designation | Transducer element* diameter[mm] | Frequency[MHz] |
|
Standard straight probe
|
HFD 10-2M | Ø 10 | 2 MHz |
| HFD 10-4M | Ø 10 | 4 MHz | |
| HFD 10-6M | Ø 10 | 6 MHz | |
| HFD 20-2M | Ø 20 | 2 MHz | |
| HFD 20-4M | Ø 20 | 4 MHz | |
| HFD 20-6M | Ø 20 | 6 MHz |
| Probe type | Designation | Transducer element* diameter[mm] | Frequency[MHz] |

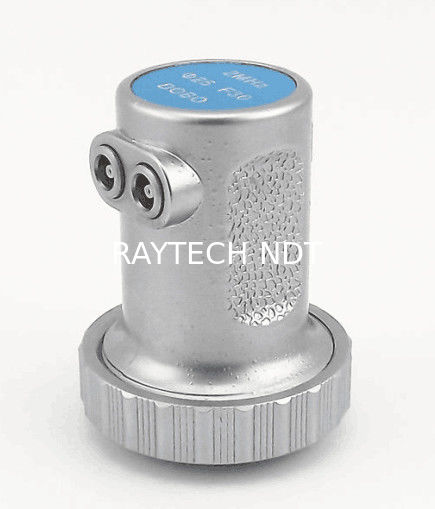

 Dual straight probe |
HFD 2/10-2M | Ø 10 | 2 MHz |
| HFD 2/10-4M | Ø 10 | 4 MHz | |
| HFD 2/10-6M | Ø 10 | 6 MHz | |
| HFD 2/20-2M | Ø 20 | 2 MHz | |
| HFD 2/20-4M | Ø 20 | 4 MHz | |
| HFD 2/20-6M | Ø 20 | 6 MHz |
| Probe type | Designation | Angle | Transducer element* diameter[mm] | Frequency[MHz] |
Dual angle probe |
HFD 13x8-2M-60 | 60° | 8x13 | 2 MHz |
| HFD 13x8-2M-70 | 70° | 8x13 | 2 MHz | |
| HFD 20x10-2M-60 | 60° | 10x20 | 2 MHz | |
| HFD 20x10-2M-70 | 70° | 10x20 | 2 MHz | |
| HFD 13x8-5M-60 | 60° | 8x13 | 5 MHz | |
| HFD 13x8-5M-70 | 70° |
8x13 |
5 MHz |
Note:
1.Other special probes are available such as Angle beam probe with pour water, probe for
variable angle, probe for locomotive piston, beam TR probe with pour water, probe for railcar
axle, probe for demarcate echo, cleanout machine transducer etc.
2.We offer all kinds of probe with customer request.
