PDF report output Digital ultrasonic flaw detector ultrasonic testing equipment RFD670
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | PDF Report Output Digital Ultrasonic Flaw Detector Ultrasonic Testing Equipment RFD670 | Measuring Range(mm): | 0 ～ 10000 |
|---|---|---|---|
| Material Velocity(m/s): | 1000~10000 | Port Type: | BNC Or LEMO |
| Gain(dB): | 0~110 | Pulse Repetition Frequency: | 10-2000Hz |
| Display Delay: | -20 To 3400 µs | Big Memory: | 1000 A Graph |
PDF report output Digital ultrasonic flaw detector ultrasonic testing equipment RFD670
Feature review of PDF report output Digital ultrasonic flaw detector ultrasonic testing equipment RFD670
★ User friendly dialog interactive helps operations like Calibration, making curves, etc.
★ All tools you need: DAC, AVG, AWS, Weld diagram,etc.
★ Pulse Repeatition Frequency: 10-2000Hz precise adjust, high speed scan, no miss out.
★ High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions.
★ 10-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws.
★ Crystal clear true-color display. Helpful user interface makes the operation much easier.
★ Unlimited USB data storage.,PDF reports output.
Specifications of PDF report output Digital ultrasonic flaw detector ultrasonic testing equipment RFD670
| Title | Parameter | Title | Parameter |
| Measuring Range(mm) | 0 ～ 10000 | Test Modes | Pulse echo, dual element and thru-transmission |
| Material Velocity(m/s) | 1000～10000 | Power Requirements | AC Mains 100-240 VAC, 50-60 Hz |
| Pulse Repetition Frequency | 10-2000Hz | Display Delay | -20 to 3400 µs |
| Dynamic range | ≥38dB | Probe Delay | 0 to 99.99µs |
| Resolving Power | >40dB (5P14) | Sensitivity | 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB. |
| Sensitivity Leavings | >65dB | Transducer Connections | BNC or LEMO |
| Reject (suppression) | 0 to 80% full screen height | H×W×D(mm) | 240×170×38 (mm) |
| Big memory | 1000 A graph | Weight | 1.0kg |
| Units | Inch or millimeter | Operating Temperature | -10℃ to 50℃ |
Funtions of PDF report output Digital ultrasonic flaw detector ultrasonic testing equipment RFD670
Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф).
Flaw sizing: Automatic flaw sizing using AVG/AVG or DAC, speeds reporting of defect acceptance or rejection.
Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity .

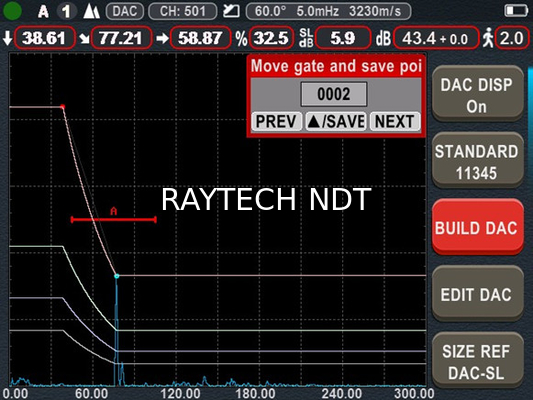

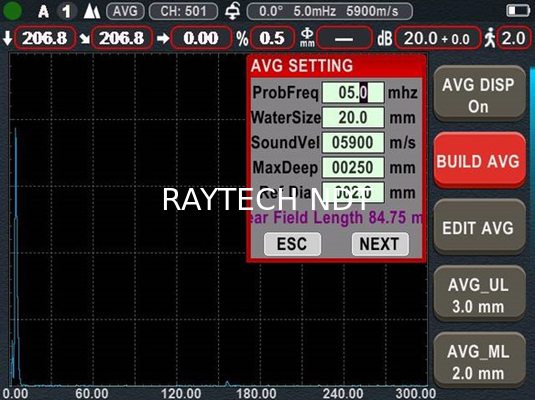

Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated.

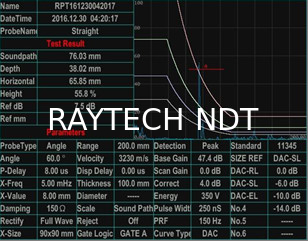

Connectting U-disk,the unit can get unlimited memory,PDF reports out put and Upadte system.
Automated make video of test process and play; use upan,the length of video is unlimited.
Color Bscan.
Weld diagram.
There are 15 standards of in the unit.
Blue tooth connection to mobile device to generate and print detection reports on-site. AWS D1.1.
Curved Surface Correction feature.
Crack Height Measure function.
Magnify gate:spreading of the gate range over the entire screen width.
Auto-gain function.
Envelope: Simultaneous display of live A-scan at 60 Hz update rate and envelope of A-scan
display.
Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.
Scan Freeze:Display freeze holds waveform and sound path data.
Alarm:Beep and LED.
Real Time Clock.
Fill echo.
Capture mark.
Echo color within the Gate.
500 independence setup, any criterion can be input freely, we can work in the scene without test block；
Probe Types: Single Straight, Single Angle,Daul Straight, Daul Anlge,Thrugh,Creeping,Surface
Pulse Energy: 200V, 300V, 400V, 500V selectable
Gate Monitors: Two independent gates controllable over entire sweep range
Internal rechargeable Li-ion battery pack rated 7.2V at 5600 mAh
10 hours nominal operating time depending on display brightness
4 hours typical recharge time
Storage Temperature: -30℃ to 50℃
Rectification: Positive half wave, negative half wave, full wave, RF System
Standard Configuration of PDF report output Digital ultrasonic flaw detector ultrasonic testing equipment RFD670
|
|
Name | QTY |
| 1 | Main unit | 1 |
| 2 | power adaptor | 1 |
| 3 | probe connecting cable | 2 |
| 4 | Instrument case | 1 |
| 5 | Instruction manual | 1 |
| 6 |
Straight probe |
1 |

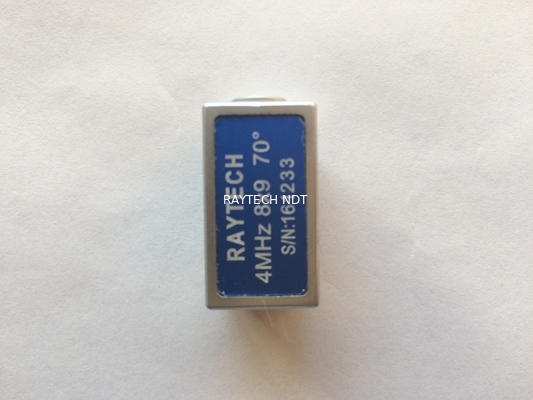

| 7 | Angle probe 8x9 60°4MHz | 1 |
| 8 | Certificate of approval | 1 |
| 9 | Strap | 1 |
| 10 | Software app | 1 |

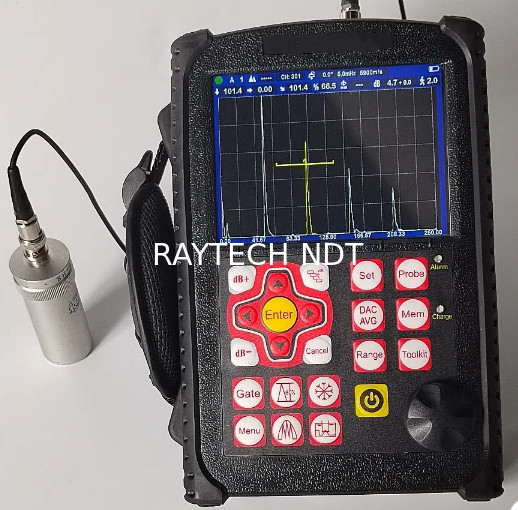

Feature picture of PDF report output Digital ultrasonic flaw detector ultrasonic testing equipment RFD670
