Wireless Connection for On-Site Reporting with Ultrasonic Flaw Detector, metal flaw detector

Features Overview of Wireless Connection for On-Site Reporting with Ultrasonic Flaw Detector, metal flaw detector

Description of Wireless Connection for On-Site Reporting with Ultrasonic Flaw Detector, metal flaw detector

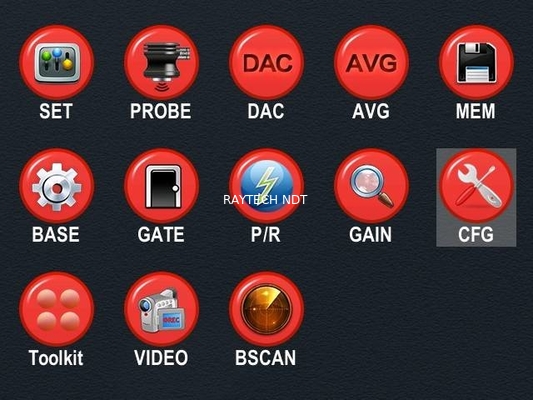

★ User friendly dialog interactive helps operations like Calibration, making curves, etc.
★ All tools you need: DAC, AVG, TCG,color Bscan, AWS, Spheroidization Rate, etc.
★ Pulse Repeatition Frequency: 20-3000Hz precise adjust, high speed scan, no miss out.
★ High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions.
★ 12-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws.
★ Can use probe frequency 30M perfectly .
★ High speed real-time flaw detection video recording. Unlimited USB data storage.

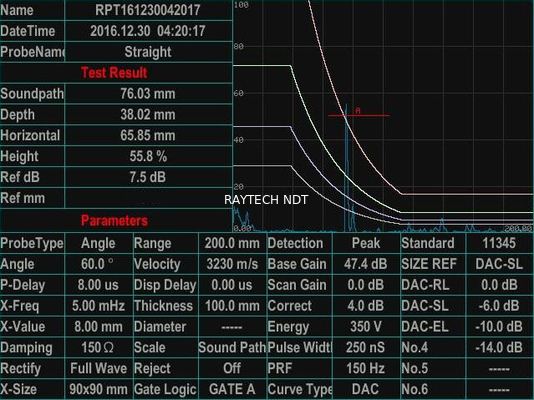

★ Blue tooth connection to mobile device to generate and print detection reports on-site.

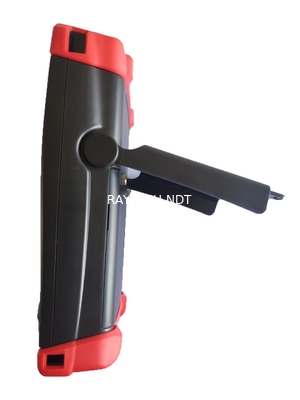

★ IP65 standard. Alloy + Silica gel case, water and dust proof, solid and lasts forever. Damping support makes it stands in any angle.
★ Battery lasts 15 hours for one charge. Each battery has own charging control so with two batteries it can work around the clock.
★ 500 independence setup, any criterion can be input freely, we can work in the scene without test block
★ Big memory of 1000 A graph
★ Test Modes: Pulse echo, dual element and thru-transmission
★ Probe Types: Single Straight, Single Angle, Dual Straight, Dual Angle, Through, Creeping, Surface

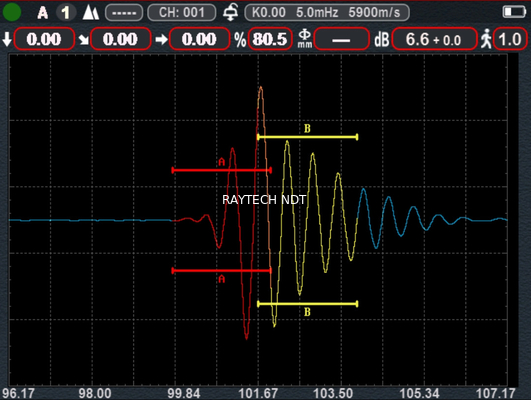

★ Gate Monitors: Two independent gates controllable over entire sweep range
★ Internal rechargeable Li-ion battery pack rated 7.2V at 8000 mAh
★ 15 hours nominal operating time depending on display brightness
★ 4 hours typical recharge time
★ Pulse Energy: 70V,100V,200V, 300V, 400V, 500V selectable
★ Rectification: Positive half wave, negative half wave, full wave, RF System
★ Gate Monitors: Two independent gates controllable over entire sweep range


Specifications of Wireless Connection for On-Site Reporting with Ultrasonic Flaw Detector, metal flaw detector



Functions of Wireless Connection for On-Site Reporting with Ultrasonic Flaw Detector, metal flaw detector

Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф).
Flaw sizing: Automatic flaw sizing using AVG or DAC/TCG, speeds reporting of defect acceptance or rejection.
Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity . ( V2 and two hole )
Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated.
Connectting U-Disk,the unit can get unlimited memory.　
Automated make video of test process and play; use upan,the length of video is unlimited.
Color Bscan.
There are 17 standards of in the unit.
Blue tooth connection to mobile device to generate and print detection reports on-site.　AWS D1.1.
Curved Surface Correction feature.
Crack Height Measure function.
Magnify gate:spreading of the gate range over the entire screen width.
Auto-gain function.
Envelope: Simultaneous display of live A-scan at 70 Hz update rate and envelope of A-scan
display.
Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.
Scan Freeze:Display freeze holds waveform and sound path data.
Spheroidization Rate test.
Alarm:Beep and LED.
Real Time Clock.
Fill echo.
Capture mark.
Echo color within the Gate.

Standard Configuration of Wireless Connection for On-Site Reporting with Ultrasonic Flaw Detector, metal flaw detector

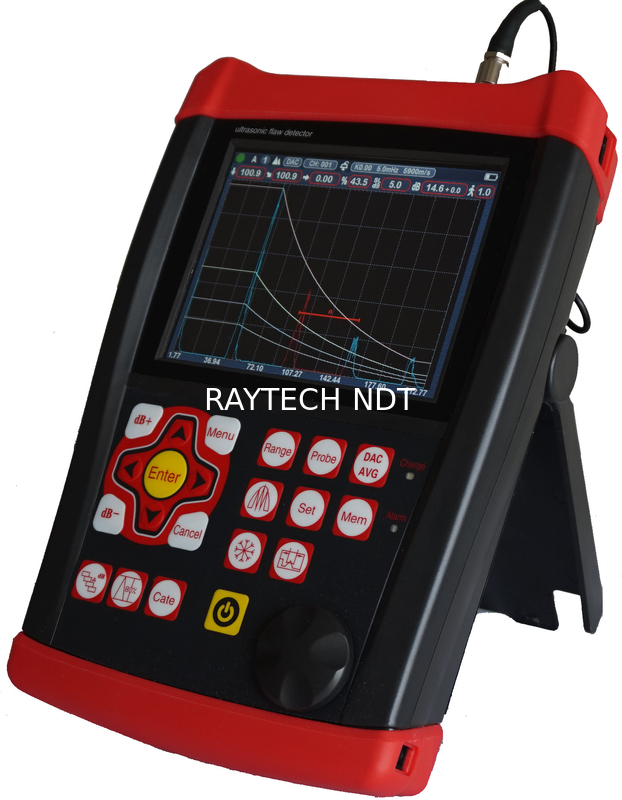

Feature picture of Wireless Connection for On-Site Reporting with Ultrasonic Flaw Detector, metal flaw detector
