Optical Profile Projector, Digital Optical Comparator Measurement Machine RVP400-2010

Certification
Good quality X Ray Flaw Detector for sales
Good quality X Ray Flaw Detector for sales
Easy to talk with, very professional and fast service, the quality is super good.

—— Ali Sharif

I'm Online Chat Now

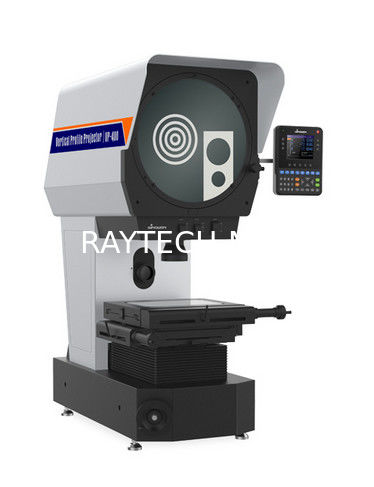

Optical Profile Projector, Digital Optical Comparator Measurement Machine RVP400-2010

China Optical Profile Projector, Digital Optical Comparator Measurement Machine RVP400-2010 supplier
Optical Profile Projector, Digital Optical Comparator Measurement Machine RVP400-2010 supplier Optical Profile Projector, Digital Optical Comparator Measurement Machine RVP400-2010 supplier

Large Image :  Optical Profile Projector, Digital Optical Comparator Measurement Machine RVP400-2010

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: CE ISO
Model Number: RPV400-2010

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Package
Delivery Time: 5~8working days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Optical Profile Projector, Digital Optical Comparator Measurement Machine RVP400-2010 Metal Stage Size: 308x408mm
Glass Stage Size: 198x306mm Stage Travel:X And Y-axis: 200x100mm
Stage Travel:Z-axis: 100mm Resolution Of X And Y-scale: 0.0005 Mm





Optical Profile Projector, Digital Optical Comparator



Measurement Machine RVP400-2010



Profile Projector

Optical Profile Projector, Digital Optical Comparator Measurement Machine RVP400-2010

Optical Profile Projector, Digital Optical Comparator Measurement Machine RVP400-2010

Optical Profile Projector, Digital Optical Comparator Measurement Machine RVP400-2010



Features:





1. The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive



more comfortable and stable;



2. Coating process reflector, clearer image and great dustproof;



3. Adjustable contour and surface illumination, to meet with difference workpiece demand;



4. Imported high light and long using life LED illumination, to ensure precision measurement



demand;



5. High resolution optical system with clear image and magnification error is less than 0.08%;



6. Powerful Bi-axial fan cooling system,highly increase using life;

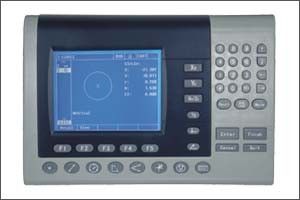

7. Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;



8. Built-in Mini-printer, can print and save data;



9. With standard 10X objective, optional 5X,20X,50X,100X objective,rotary table, foot



switch ,clamp, etc.
