RAYTECH NDT INSTRUMENT CO.,LTD



High quality, Best service,Reasonable price.

Sales & Support
Request A Quote - Email
Select Language
English
Home
Products
About Us
Factory Tour
Quality Control
Contact Us
Request A Quote
Home ProductsProfile Projector

Digital Horizontal Profile Projector, Optical Projector for metal plastic workpiece RPH350-2010

Certification
Good quality X Ray Flaw Detector for sales
Good quality X Ray Flaw Detector for sales
Easy to talk with, very professional and fast service, the quality is super good.

—— Ali Sharif

I'm Online Chat Now

Digital Horizontal Profile Projector, Optical Projector for metal plastic workpiece RPH350-2010

China Digital Horizontal Profile Projector, Optical Projector for metal plastic workpiece RPH350-2010 supplier
Digital Horizontal Profile Projector, Optical Projector for metal plastic workpiece RPH350-2010 supplier Digital Horizontal Profile Projector, Optical Projector for metal plastic workpiece RPH350-2010 supplier

Large Image :  Digital Horizontal Profile Projector, Optical Projector for metal plastic workpiece RPH350-2010

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: CE ISO
Model Number: RPH350-2010

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Package
Delivery Time: 5~8working days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Digital Horizontal Profile Projector, Optical Projector For Metal Plastic Workpiece RPH350-2010 Working Stage Size: 355x126mm
Working Stage Travel: 200x100mm Focusing: 90mm

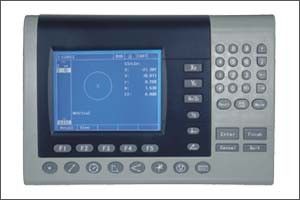

Resolution: 0.0005 Mm Digital Readout: DP400


Digital Horizontal Profile Projector, Optical Projector for metal

plastic workpiece RPH350-2010


Profile Projector

Features:



1. The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive



more comfortable and stable;



2. Coating process reflector, clearer image and great dustproof;



3. Adjustable contour and surface illumination, to meet with difference workpiece demand;



4. Imported high light and long using life LED illumination, to ensure precision measurement



demand;



5. High resolution optical system with clear image and magnification error is less than 0.08%;



6. Powerful Bi-axial fan cooling system,highly increase using life;



7. Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;



8. Built-in Mini-printer, can print and save data;



9. With standard 10X objective, optional 5X,20X,50X,100X objective,rotary table, foot



switch ,clamp, etc.



Specification:



Product Name



Digital Horizontal Profile Projector



Mode



RPH350-2010



Code #



512-350



Working Stage Size



355x126mm



Working Stage Travel



200x100mm



Focusing



90mm



Accuracy



≤4+L/200(um)



Resolution



0.0005 mm



Loading Weight



15Kg



Screen



Screen diameter:φ360mm, Effective range ≥ Ø350mm







Rotation Angle 0~360° ;Resolution: 1’or 0.01°,accuracy 6’



Digital Readout



DP400 (510-340) Multifunction colorful LCD digital readout



Illumination



Contour Illumination:3.2V/10W LED;Surface Illumination:220V/130W LED



Working Environmental



Temp:20℃±5℃,Humidity:40%-70%RH



Power Supply



AC110V/60Hz; 220V/50Hz,150W







Objective lens:





Objective Lens



RPH350-10X RPH350-20X RPH350-50X



Code#



512-110 512-120 512-130



Field of View



φ30mm φ15mm φ6mm



Distance



75mm 69mm 44mm







Contact Details
RAYTECH NDT INSTRUMENT CO.,LTD

Contact Person: Mr. Jason

Tel: 86-130-31042171

Send your inquiry directly to us (0 / 3000)
