Product Name: Optical Measure Profile Projector, Optical Projection Instrument Digital Vertical RVP300-2010 Metal Stage Size: 258x358mm
Glass Stage Size: 148x256mm Stage Travel:X And Y-axis: 200x100mm
Stage Travel:Z-axis: 100mm Resolution Of X And Y-scale: 0.0005 Mm





Optical Measure Profile Projector, Optical projection



instrument Digital Vertical RVP300-2010

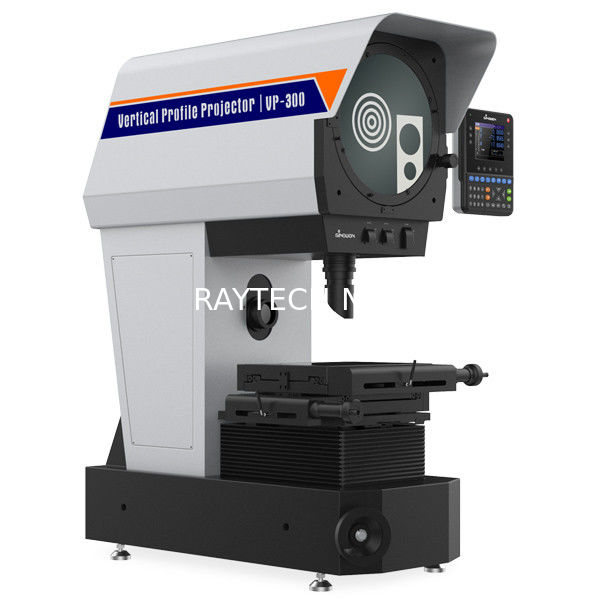

Vertical Profile Projector





Features:





1. The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive



more comfortable and stable;



2. Coating process reflector, clearer image and great dustproof;



3. Adjustable contour and surface illumination, to meet with difference workpiece demand;



4. Imported high light and long using life LED illumination, to ensure precision measurement



demand;



5. High resolution optical system with clear image and magnification error is less than 0.08%;



6. Powerful Bi-axial fan cooling system,highly increase using life;

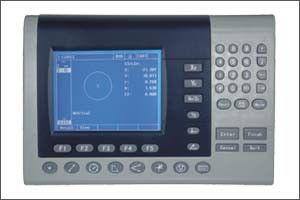

7. Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;



8. Built-in Mini-printer, can print and save data;



9. With standard 10X objective, optional 5X,20X,50X,100X objective,rotary table, foot



switch ,clamp, etc.





Specification:



Reverse Image



RVP300-1510 (#511-330)



RVP300-2010 (#511-340)
Obverse Image



RVP300-1510Z(#511-330Z)



RVP300-2010Z(#511-340Z)
Metal Stage Size



258x308mm



258x358mm
Glass Stage Size



148x206mm



148x256mm
Stage Travel:X and Y-axis



150x100mm



200 x100mm
Stage Travel:Z-axis



100mm



Accuracy



≤3+L/200(um)



Resolution of X and Y-scale



0.0005 mm



Screen



Diameter :Ø312mm,Effective Range ≥ Ø300(with “* ” Reticle)





Rotary Range: 0~360° ; Resolution of Rotary Indicator: 1’ or 0.01°




Digital Readout



DP400 (510-340) Multifunctional Data Processing System



Illumination



Contour Illumination:3.2V/10W LED;Surface



Illumination:3.2V/10W LED



Working Environment



Temp 20℃±5℃,Humidity 40%-70%RH



Power Supply



AC110V/60Hz; 220V/50Hz, 650W



Dimension(L×W×H)



988x563x1224mm



988x563x1224mm
Packing Dimension



1200x800x1580mm



1200x800x1580mm
Gross/Net weight



220/170Kg



220/170Kg
