UV Lamps, Fluorescent flaw detection lamp flashlight light, Magnetic Particle Testing RUV100

China UV Lamps, Fluorescent flaw detection lamp flashlight light, Magnetic Particle Testing RUV100 supplier
UV Lamps, Fluorescent flaw detection lamp flashlight light, Magnetic Particle Testing RUV100 supplier UV Lamps, Fluorescent flaw detection lamp flashlight light, Magnetic Particle Testing RUV100 supplier

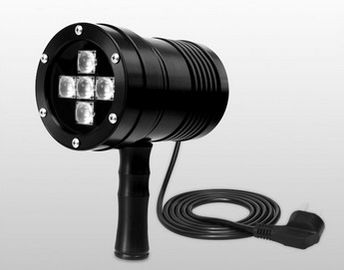

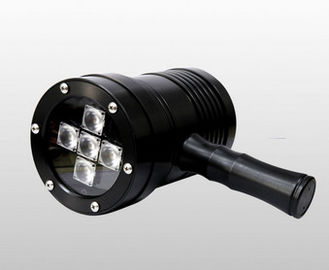

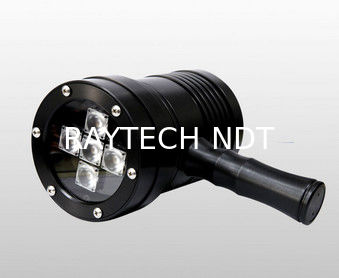

Large Image :  UV Lamps, Fluorescent flaw detection lamp flashlight light, Magnetic Particle Testing RUV100

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: RUV100

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Delivery Time: 5~8days
Payment Terms: Western Union, T/T, L/C, MoneyGram
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: UV Lamps, Fluorescent Flaw Detection Lamp Flashlight Light, Magnetic Particle Testing RUV100 Lamp Bead Amount: 5
Input Voltage: 100-240VAC Output Power: 15W
Intensity Of Ultraviolet Ray At 38cm Distance: ≥16000uW/cm2 Irradiated Area At 38cm Distance: ¢200mm


UV Lamps, Fluorescent flaw detection lamp flashlight light,



Magnetic Particle Testing RUV100



UV light UV lamp


Main Application:

Fluorescent Penetrate Testing

Fluorescent Magnetic Particle Flaw Detection

Fluorescence Leak Detection

Other Application:

Oil Stain, Blot Testing

Special Gas, Oil and Gas Pipeline Testing

Fluorescence Reflection Detection for Special Materials

Criminal Investigation and Legal Medical Expert Survey

Paper Money Authentication, Jewel Appreciation

Agriculture, Foodstuff, Medical Treatment and other relevant industries.

Features:

1, UV Series adopts high-power 365nm Ultraviolet band LED Lamp Beads produced

by Japanese NICHIA company, free from UV-B and UV-C element,spectrum is pure.

2, The lifetime of Lamp Beads reach up to 20000 hours, efficient, energy

conservation and environmental protection.

3, High power output, quick start, can reach the maximum illuminance as soon as

switched on.

4, Ultra-low power, ultra-high efficiency. Cold operated with cold light source, long

term stability output the illuminance.

5, Optical filter is high UV transmittance transparent Quartz optical glass.

6, The shell of the instrument is made of high strength aluminum alloy precision

machining. The surface is anodized, sturdy and durable.

7, The enhanced heat dissipation design can be used continuously for a long time.

8, Dedicated high-speed charger is equipped.

9, With anti magnetic interference function, it can be used in high-intensity magnetic

field.

10, The product has passed through International Standard of IEC 60529--Housing

Protection Grade(IP66) dustproof and waterproof testing, wider working

environment and more reliable.

Main parameters



Model



RUV100



Power Supply



AC



Lamp Beads



NICHIA 365nm Ultraviolet band LED Lamp Beads



Lamp Bead Amount



5



Input Voltage



100-240VAC



Output Power



15W



Intensity of Ultraviolet Ray at 38cm Distance



≥16000uW/cm2



Irradiated Area at 38cm Distance



¢200mm



Diameter of Light Inlet Window



¢88



Outline Dimension



¢123 mm×190 mm×120 mm



Weight(including Battery)



1290g







TAG: Fluorescence Leak Detection   UV LED Lamp    UV LED Light
