Tesla Meter, flux density meter, Digital Gauss Meter, magnetic measurement tester WT10C

China Tesla Meter, flux density meter, Digital Gauss Meter, magnetic measurement tester WT10C supplier
Tesla Meter, flux density meter, Digital Gauss Meter, magnetic measurement tester WT10C supplier Tesla Meter, flux density meter, Digital Gauss Meter, magnetic measurement tester WT10C supplier

Large Image :  Tesla Meter, flux density meter, Digital Gauss Meter, magnetic measurement tester WT10C

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: WT10C

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Delivery Time: 5~8days
Payment Terms: Western Union, T/T, L/C, MoneyGram
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Tesla Meter, Flux Density Meter, Digital Gauss Meter, Magnetic Measurement Tester WT10C Rang: 0~200mT~2000mT
Accuracy: ±2% Sensitivity: 0.01mT, 0.1mT
AC Magnet Field: 50-200Hz Display: 4½ LCD



Tesla Meter, flux density meter, Digital Gauss Meter, magnetic



measurement tester WT10C





Tesla Meter, flux density meter, Digital Gauss Meter, magnetic measurement tester WT10C





Specifications





The Tasla meter is a special instrument used for inspecting & checking flux density



,which is also one of the most universally devices in the field of magnetic



measurement.





Model WT-10C digital Tasla meter is controlled by the SCM, which is suitable for



handle operation.It can be used to measure DC or AC magnetic field and flux



dencity.The device can be carried on one’s person. It is characterized by its wide



measuring range,simple operation and clear display. It is still added with the



function of maintenance such as holding Measure Value/Peak Value, As mT or Gs



unit of display can be change over, Measuring range of 200mT or 2000mT can be



chose, and others that as resetting zero by key and so on. The power is one piece



of battery 9V. It can be used continually about 20 hours.







Reality Working Domain:



1.  Magnetic field distribution of material surface​



2.   Working magnetic field produced fro some instrument that as iron-removing



      device,magnet-selecting machine, magnet chuck, magnet spool and



       demagnetizing coil



3.  Leakage Magnetic iron-surface





Main Technical Parameters



Rang



0~200mT~2000mT



Accuracy



±2%



Sensitivity



0.01mT, 0.1mT



AC Magnet Field



50-200Hz



Temperature of environment



5℃-40℃



Relative humidity



20%-80%(no condensation)



Power Supply



Battery 9V, constant DC power



Dimension



150mm×70mm×30mm



Weight



N.W: 500g G.W:900g



Display



4½ LCD

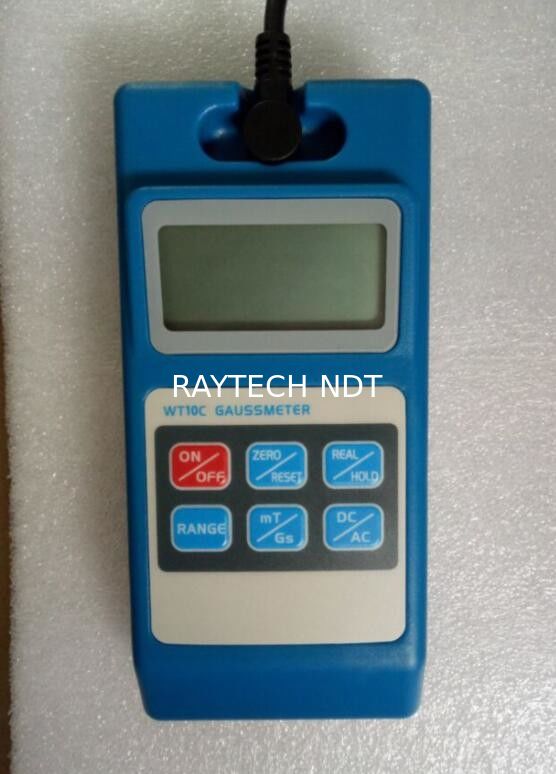

Shape of the device:



1



Sensor Connecting



2



LED Screen



3



Zero/Reset Reading





Tesla Meter, flux density meter, Digital Gauss Meter, magnetic measurement tester WT10C
