Magnetic Particle Inspection Machine, MPI, MT Yoke, Crack Testing Equipment RCDX-220

China Magnetic Particle Inspection Machine, MPI, MT Yoke, Crack Testing Equipment RCDX-220 supplier
Magnetic Particle Inspection Machine, MPI, MT Yoke, Crack Testing Equipment RCDX-220 supplier Magnetic Particle Inspection Machine, MPI, MT Yoke, Crack Testing Equipment RCDX-220 supplier Magnetic Particle Inspection Machine, MPI, MT Yoke, Crack Testing Equipment RCDX-220 supplier Magnetic Particle Inspection Machine, MPI, MT Yoke, Crack Testing Equipment RCDX-220 supplier Magnetic Particle Inspection Machine, MPI, MT Yoke, Crack Testing Equipment RCDX-220 supplier

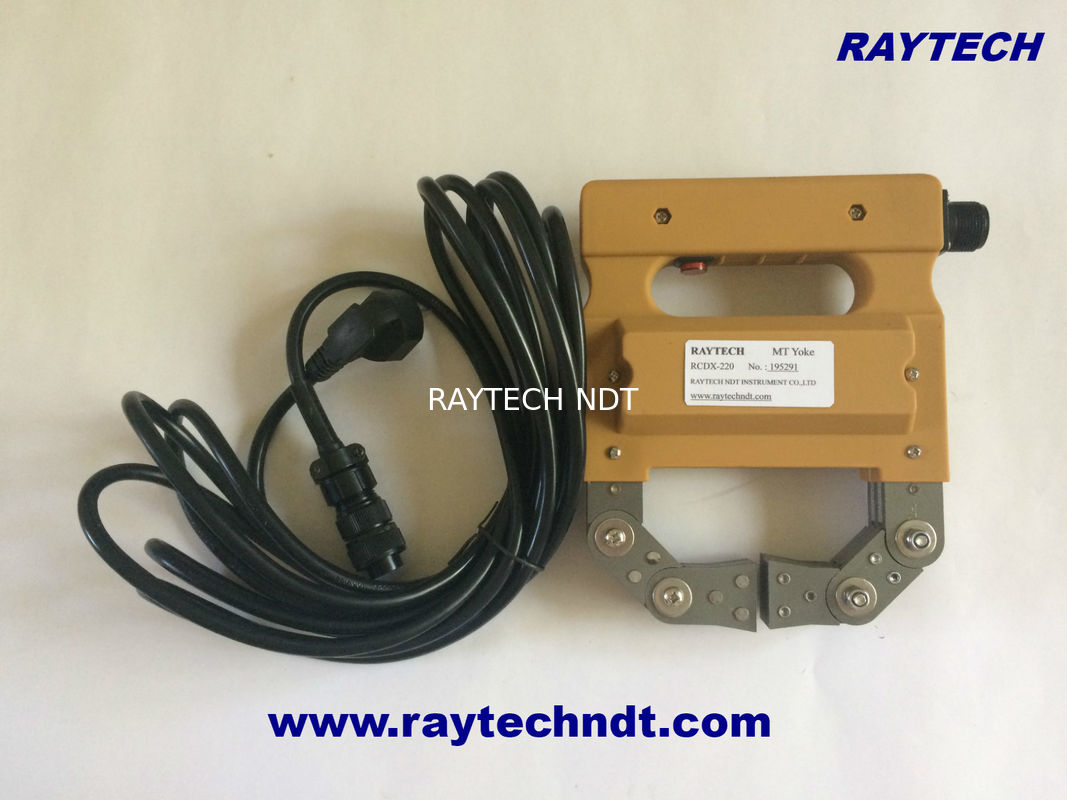

Large Image :  Magnetic Particle Inspection Machine, MPI, MT Yoke, Crack Testing Equipment RCDX-220

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: RCDX-220

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Payment Terms: Western Union, T/T, L/C
Supply Ability: 500units/month
Contact Now
Detailed Product Description
Product Name: Magnetic Particle Inspection Machine, MPI, MT Yoke, Crack Testing Equipment RCDX-220 Charging Power Supply: 220V 50Hz
Operating Current: AC1.4A Magnetic Electrode Distance: 0~200mm
Probe Weight: 3.1kgs Outline Dimension(㎜): 208×52×146

Magnetic Particle Inspection Machine, MPI, MT Yoke,

Crack Testing Equipment RCDX-220



Magnetic Particle Inspection Machine, MPI, MT Yoke, Crack Testing Equipment RCDX-220



Handheld Magnetic particle detector is a small portable non-destructive testing instrument with clear crack display, reliable performance, stable and easy operation. The instrument uses a coil to be wound directly on the probe to generate an induced magnetic field to magnetize the workpiece. The device has small size, light weight, large lifting force and adjustable movable joints. Suitable for flaw detection of flat welds, fillet welds, steel pipes, pressure vessels, pipes, shafts and complex shapes.



The matching probe is made of high-strength insulating material. After inspection, it is connected with epoxy resin to achieve sealed insulation, not easy to damage, and comfortable to operate. The probe has movable joints for users to work on specific workpieces. It is also possible to use a planar yoke, specifically the shape of the magnetized workpiece, to determine which shape of the probe to use.



It is suitable for detecting flaws on the surface of magnetic materials such as steel. In the magnetic particle flaw detection, the object to be tested receives a magnetic force, and the magnetic powder is scattered on the surface. Then, part of the surface of the defect leaks out and the magnetic force leaks the magnetic powder to form an indication pattern. The indication pattern is dozens of times larger than the actual defect, so it is easy to find the defect.



Technical Parameters





Model

parameters



RCDX-220

Magnetic Yoke Flaw Detector

RCDX-220AC/DC

Magnetic Yoke Flaw Detector



Power supply



/ 110/220V 50Hz 12V



Charging power supply



220V 50Hz 110/220V 50Hz



Using battery



/ MF12—7.2AH



Operating current



AC1.4A

AC1.4A

DC1.7A



Charging time



/ 8~15h



Battery life



/ More than 6 hours



Working interval



1 minute switch on 1 minute off 1 minute switch on 1 minute off



Magnetic electrode distance



0~200mm 0~200mm



Lifting power





A C



>5.5kg >5.5kg



D C



/ >26kg



Weight





Probe



3.1kg 3.1kg



Battery package



/ 2.9kg

Outline

dimension(㎜)



Probe



208×52×146 208×52×146



Battery package



/ 160×70×100



Charger



/ 75×50×40





TAG: Magnetic Yoke Flaw Detector      MT Yoke     Magnetic Particle Test Equipment
