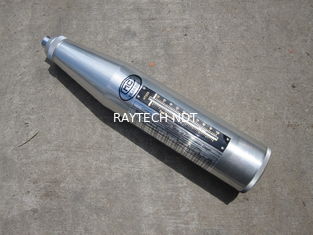

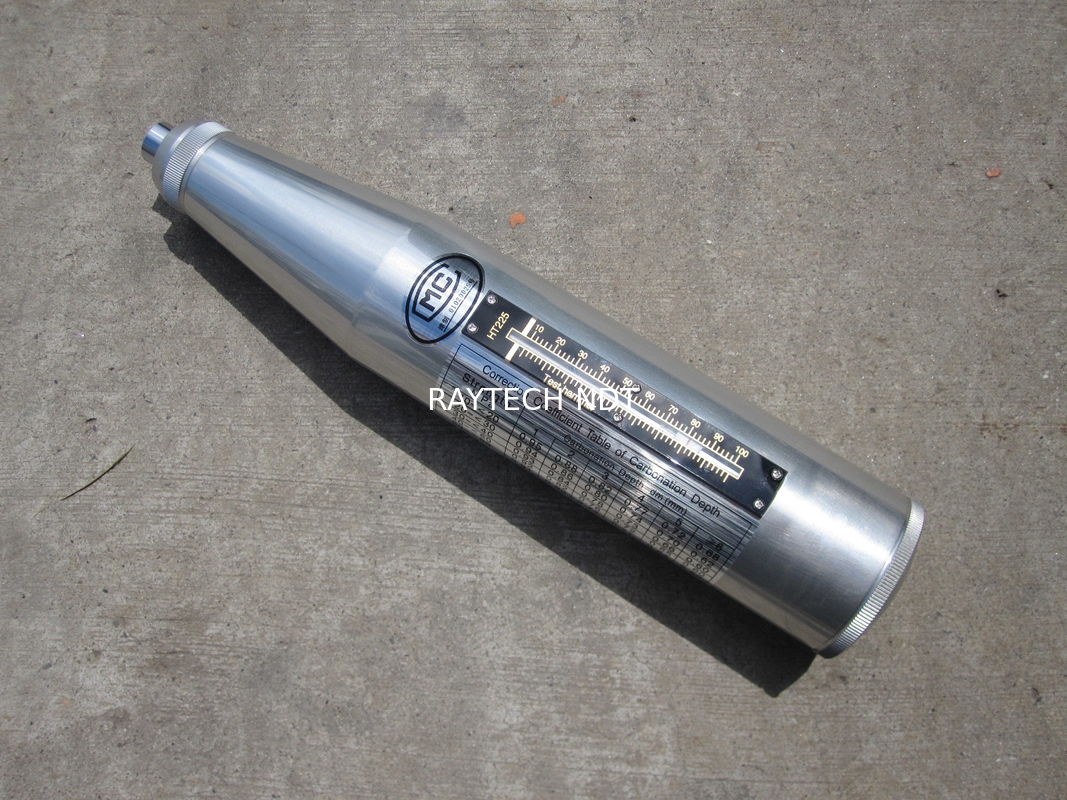

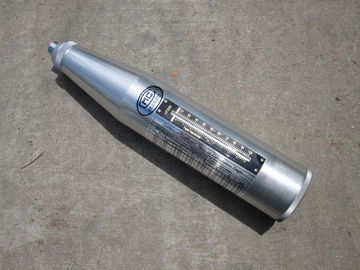

Concrete Test Hammer, Rebound Hammer, Concrete Testing Instrument HT-225A

Certification
Good quality Portable Hardness Tester for sales
Good quality Portable Hardness Tester for sales
Easy to talk with, very professional and fast service, the quality is super good.

—— Ali Sharif

I'm Online Chat Now

Concrete Test Hammer, Rebound Hammer, Concrete Testing Instrument HT-225A

China Concrete Test Hammer, Rebound Hammer, Concrete Testing Instrument HT-225A supplier
Concrete Test Hammer, Rebound Hammer, Concrete Testing Instrument HT-225A supplier Concrete Test Hammer, Rebound Hammer, Concrete Testing Instrument HT-225A supplier Concrete Test Hammer, Rebound Hammer, Concrete Testing Instrument HT-225A supplier

Large Image :  Concrete Test Hammer, Rebound Hammer, Concrete Testing Instrument HT-225A

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: HT-225A

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Concrete Test Hammer, Rebound Hammer, Concrete Testing Instrument HT-225A Test Range: 10~60Mpa
Standard Impact Energy: 2.207J(0.225Kgf.m) Stroke Of Rebound Hammer: 75mm
Friction Of Pointer Slider: 0.5N~0.8N Sphere Radius Of Rebound Pole SR: 25mm±1mm

Concrete Test Hammer, Rebound Hammer, Concrete Testing Instrument HT-225A



Concrete Test Hammer, Rebound Hammer, Concrete Testing Instrument HT-225A





Brief introduction:



The test hammer submit to standard of GB/T9138-1988 and JJG817-93



and JGJ/T23-2001. HT-225 concrete test hammer is applied to test the



compressive strength of building concrete components, bridge and so on.



Trait:



1)Center rod is made from imported material, high accuracy and durable



resistance.



2)The shell is made form high Aluminum or high polymer material in order



to perfect protect instrument from damage and extend use life.



3)Pointer slider is outside structure, its friction can be balance well and



easy to be adjusted so that we can make sure that the instrument is



accurate. Compared with other suppliers in the line of business, the product



is more accuracy, good quality, and best price and longer use life.



Parameter



Standard impact energy 0.735J
Stroke of rebound hammer 75mm
Friction of pointer slider 0.4N~0.6N
Sphere radius of rebound pole SR 25mm±1mm
verage rebound value on steel anvil 74±2
Size Φ54*268mm
Weight ≈1KG




HT-225 A same as HT-225, just added spare parts:



Strike tension spring and screw driver.



Concrete Test Hammer, Rebound Hammer, Concrete Testing Instrument HT-225A
