Rebar Scanner, Rebar Locator RL-50(+), Concrete Strength Test Hammer

China Rebar Scanner, Rebar Locator RL-50(+), Concrete Strength Test Hammer supplier
Rebar Scanner, Rebar Locator RL-50(+), Concrete Strength Test Hammer supplier Rebar Scanner, Rebar Locator RL-50(+), Concrete Strength Test Hammer supplier

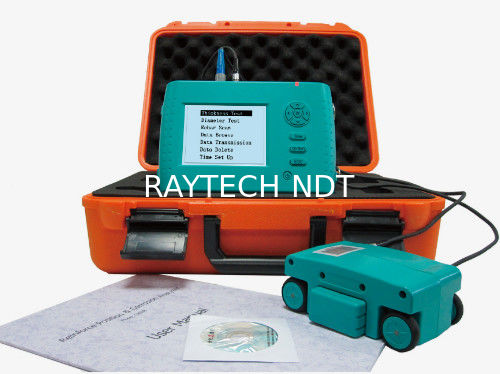

Large Image :  Rebar Scanner, Rebar Locator RL-50(+), Concrete Strength Test Hammer

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: RL-50(+)

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Rebar Scanner, Rebar Locator RL-50(+), Concrete Strength Test Hammer Bar Diameter Application Range(mm): Diameter 6~50
The First Measuring Range(mm): 6-90 The Second Measuring Range(mm): 7-180
Maximum Permissible Error Of Bar Diameter: ≤±1 Gross Weight: 4kgs



Rebar Scanner, Rebar Locator RL-50(+), Concrete Strength



Test Hammer



Rebar Scanner, Rebar Locator RL-50(+), Concrete Strength Test Hammer



Features:

  1. Investigation depth could reach 180mm.
  2. Single comprehensive probe. No need to replace during test.
  3. Backlight screen let instrument can be normal used under the condition of insufficient light.
  4. Machine software is complete. The report could be printed automatically connecting with computer.
  5. Grid scan of the rebar position.
  6. Profile scan of the rebar position.



Work Environment Condition:

  1. No strong alternating electromagnetic field.
  2. No corrosive gas in the air.
  3. Avoid larger vibration and impact.
  4. Avoid the LCD panel contact with sunlight directly.



Product Usage:

  1. Testing concrete cover thickness
  2. Test concrete member internal reinforcement position, rebar spacing, reinforcement position distribution.
  3. Estimation bar diameter
  4. Detection of cable and plumbing pipe



Technical specification:



Bar diameter application range(mm) Diameter 6~50
Maximum permissible error of Bar diameter ≤±1
Cover thickness measuring range
The first measuring range(mm) 6-90
The second measuring range(mm) 7-180



The maximum error of cover thickness:

The first measuring range (mm) The second measuring range (mm)
6-59 7-79 ≤±1
60-69 80-119 ≤±2
70-90 120-180 ≤±4



Standard Delivery

Main unit, software 1
USB connecting cable 1
Probe 1
Probe cable 1
Manual 1
Warranty card 1
Carry case 1



Optional accessory

Scan car 1
Car cable 1





Rebar Scanner, Rebar Locator RL-50(+), Concrete Strength Test Hammer





TAG: Concrete Test Hammer    Rebound Test Hammer   Schmidt Hammer



Rebar Locator     Rebar Detector      Rebar Scanner
