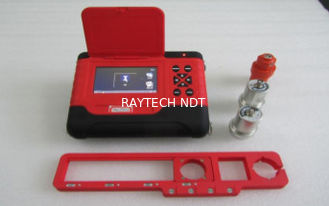

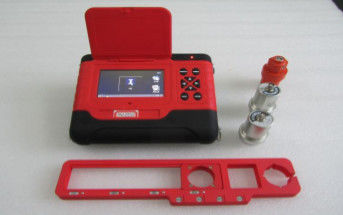

Concrete Crack Test Hammer, Crack Integrated Detector HT-800, Schmidt Hammer

China Concrete Crack Test Hammer, Crack Integrated Detector HT-800, Schmidt Hammer supplier
Concrete Crack Test Hammer, Crack Integrated Detector HT-800, Schmidt Hammer supplier Concrete Crack Test Hammer, Crack Integrated Detector HT-800, Schmidt Hammer supplier

Large Image :  Concrete Crack Test Hammer, Crack Integrated Detector HT-800, Schmidt Hammer

Product Details:

Place of Origin: China
Brand Name: RAYTECH
Certification: ISO CE
Model Number: HT-800

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 500units per month
Contact Now
Detailed Product Description
Product Name: Concrete Crack Test Hammer, Crack Integrated Detector HT-800, Schmidt Hammer Crack Width Test Range: 0.01mm~6.5mm
Crack Width Test Accuracy: ≤±0.02mm Crack Depth Test Range: 10mm~500mm
Crack Depth Accuracy: ≤±5% Image Storage Format: BMP Or JPEG



Concrete Crack Test Hammer, Crack Integrated Detector HT-



800, Schmidt Hammer





Concrete Crack Test Hammer, Crack Integrated Detector HT-800, Schmidt Hammer





Applications: Crack integrated detector is mainly used for crack width and crack



depth measurement of bridges, tunnels, buildings, roads and so on.



Concrete Test Hammer, Schmidt Hammer, Concrete Test Machine



Professional design



1. Standard probe and high grade probe;



2. Two detection methods: standard and simple depth measurement.



3. Standard ultrasonic transducer bracket, precise and adjustable;



4. free from scene marking-out, which can greatly improve the detection efficiency.



5. Image automatic recognition and width intelligent computing technology;



6. crack position without adjustment;



7.Crack automatic identification and calculation; real-time display;



Human-computer interaction



1. Friendly human-computer interactive interface



2. Various built-in various helpful files and demo videos facilitate the users to



conduct skilled instrument operation.



Mass storage



4GB large-capacity SD card can store more than 100,000 data;



Main technical parameters:



Hardware Platform Embedded ARM9 Hardware Platform,WinCe5.0 Operating System,True Color TFT Touch Screen
Crack Width Test Range Standard Probe: 0.01mm~6.5mm;
Crack Width Test Accuracy Standard Probe:≤±0.02mm
Crack Depth Test Range 10mm~500mm
Crack Depth Accuracy ≤±5%
Image Storage Format BMP or JPEG
Power Supply Rechargeable Lithium Battery
Working Time ≥28 Hours
Working Temperature -10℃~+50℃
Working Humidity ≤90%RH
Net Weight

1.8kg

Gross Weight 4.6kg
Package Size 42*33*12.5cm



Concrete Crack Test Hammer, Crack Integrated Detector HT-800, Schmidt Hammer





TAG: Concrete Test Hammer    Rebound Test Hammer   Schmidt Hammer
