Product Name: | Digital Bluetooth Memory Surface Roughness Tester, Roughness Gauge Gage SRT160 | Parameter: | Ra Rz Rq Rt |
---|---|---|---|
The Sampling Length: | 0.25mm,0.8mm,2.5mm, | Resolution: | 0.001μm, 0.01μm, 0.1μm |
External Input / Output Interface: | USB RS232 Bluetooth | Weight(host): | 0.4kg |

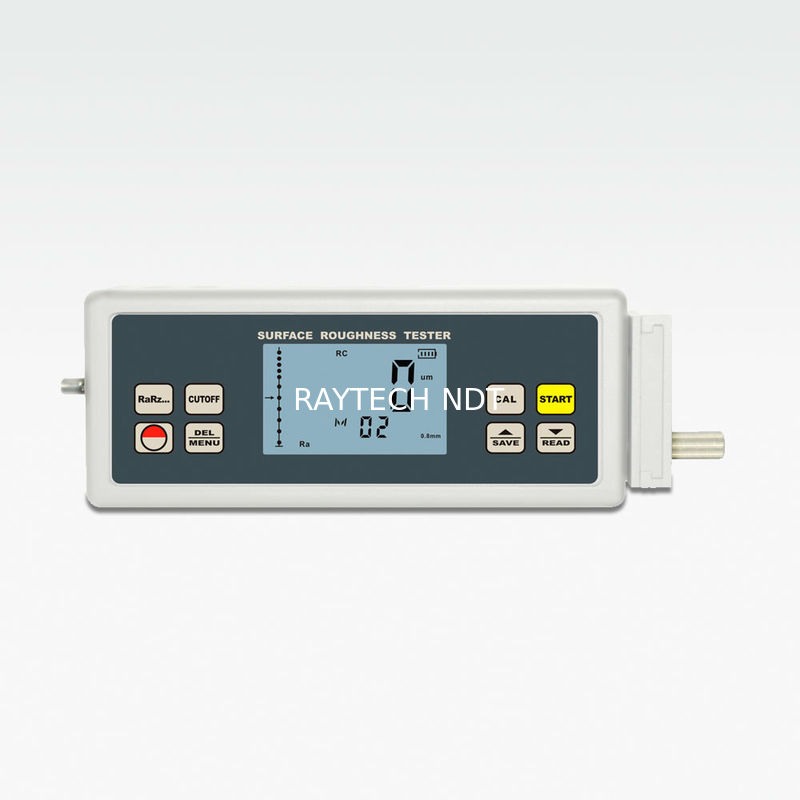

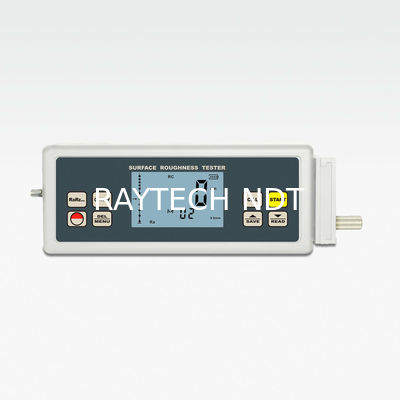

Digital Bluetooth Memory Surface Roughness Tester,
Roughness Gauge Gage SRT160
Digital Bluetooth Memory Surface Roughness Tester, Roughness Gauge Gage SRT160
Digital Bluetooth Memory Surface Roughness Tester, Roughness Gauge Gage SRT160
Digital Bluetooth Memory Surface Roughness Tester, Roughness Gauge Gage SRT160
Product Description
The Surface Roughness Tester is widely used in production site to measure surface roughness of
various machinery-processed parts, calculate corresponding parameters according to selected
measuring conditions and clearly display all measurement parameters.
Product Feature
* Be compatible with four standards of ISO, DIN, ANSI and JIS. When measuring the roughness
of a surface, the sensor is placed on the surface and then uniformly slides along the surface by
driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp
built-in probe. This roughness causes displacement of the probe which results in change of
inductive amount of induction coils so as to generate analogue signal, which is in proportion to
the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes
and calculates and thenoutputs the measurement results on LCD.
* Multiple parameter measurement: Ra, Rz, Rq, Rt.
* Highly sophisticated inductance sensor.
* Four wave filtering methods : RC, PC-RC, GAUSS and D-P.
* Built-in lithium ion rechargeable battery and control circuit with high capacity.
* Small in size, light in weight and easy to use.
*Manual or automatic shut down.
* Can memorize 7 groups of measurement results and measuring conditions for later use or
download to PC.
* Metric /Imperial Conversion.
* Use USB data output with connection PC.
* Provide Bluetooth data output choice.
Product Parameters
Measuring Range |
Ra,Rq:0.005~16.00 um / 0.020~629.9 uinch
|
|
Rz,Rt:0.020~160.0 um / 0.078~6299 uinch
|
||
Accuracy |
Not more than ±10%
|
|
Fluctuation of display value |
Not more than 6%
|
|
Resolution |
0.001μm, 0.01μm, 0.1μm
|
|
Probe | Radius |
5μm
|
Material |
Diamond
|
|
Measurement Force |
4mN(0.4gf)
|
|
Angle |
90°
|
|
Vertical Radius |
48mm |
|
Maximum Driving Stroke |
17.5mm/0.7inch |
|
Cutoff Length |
0.25mm, 0.8mm, 2.5mm
|
|
Driving Speed |
Measuring |
Sampling Length: 0.25mm Vt: 0.135mm/s
|
Sampling Length: 0.8mm Vt: 0.5mm/s
|
||
Sampling Length: 2.5mm Vt: 1mm/s
|
||
Returning |
Vt=1mm/s
|
|
Profile digital filter | Filtered Profile |
RC,PC-RC,GAUSS
|
Non-Filtered Profile |
D-P
|
|
Evaluation length |
1~5L optional
|
|
Data Memorize |
7 Groups
|
|
Power Supply |
Built-in rechargeable Li-ion battery
|
|
Size |
140x52x48 mm
|
|
Weight |
420 g (Not including batteries)
|
Product Accessories
Standard Accessories |
Main Unit
|
Small Screwdriver
|
|
Standard Boilerplate
|
|
Standard Sensors,
|
|
Carrying Case
|
|
Operation Manual
|
|
Optional Accessories |
USB data output
|
RS-232 data output
|
|
Bluetooth™ data output
|
