SRT120A Surface Profile Gauge Surface Roughness Tester surface roughness testers

SRT120A Surface Profile Gauge Surface Roughness tester  surface roughness testers

Specification of SRT120A Surface Profile Gauge Surface Roughness tester surface roughness testers  :

· Resolution: 0.001mm (0.00005")· Measuring Range: 0 - 6500μm m (0 - 0.25")

· Gauge face diameter: 42mm (1.65")

· Power: 1.55V silver oxide battery (SR44)

· Battery Life: 8 - 12 months

· Working Temperature: 0 to +40C (32 to 104F)

· Storage Temperature: -10 to +60C (14 to 140F)

· Relative Humidity: <80%

· Accuracy: ±2μm

· Unit: metric/imperial

Application of SRT120A Surface Profile Gauge Surface Roughness tester Surface Roughness Testers :

· Enables quick assessment of surface condition prior to coating

· It works on grit sand shot blasted and saw cut surfaces

· The small size (42 mm diameter) of this surface profile gauge makes it easy to use and

easy to balance on the surface

· Its design permits accuracies equivalent to an electronic surface trace

· Gives maximum peak to average valley height

· Available with metric and imperial units.

· This gauge can also measure the depth of pits, cracks, craters and scratches of the outer

(and in some cases the inside) surfaces of steel structures, pipes and concrete

· According to ASTM D4417B

Standard delivery of SRT120A Surface Profile Gauge Surface Roughness tester Surface Roughness Testers :

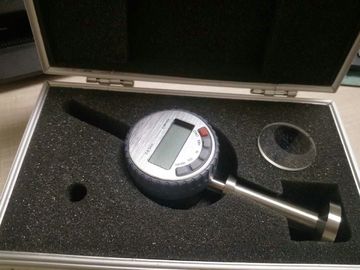

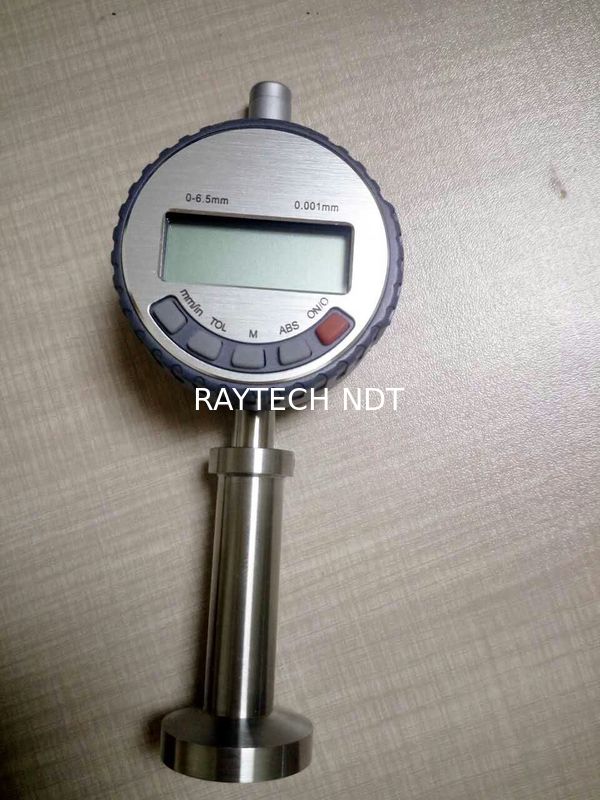

Picture of SRT120A Surface Profile Gauge Surface Roughness tester Surface Roughness Testers

TAG: Surface Roughness Tester       Surface Roughness Gauge

         Surface Profile Gauge
