Product Name: | Surface Roughness Tester Portable, Roughness Measuring Instrument, Ra Rz SRT150 | Parameter: | Ra Rz |
---|---|---|---|
The Sampling Length: | 0.25mm,0.8mm,2.5mm, | Resolution: | 0.001μm, 0.01μm, 0.1μm |
External Input / Output Interface: | USB RS232 Bluetooth | Weight(host): | 0.4kg |

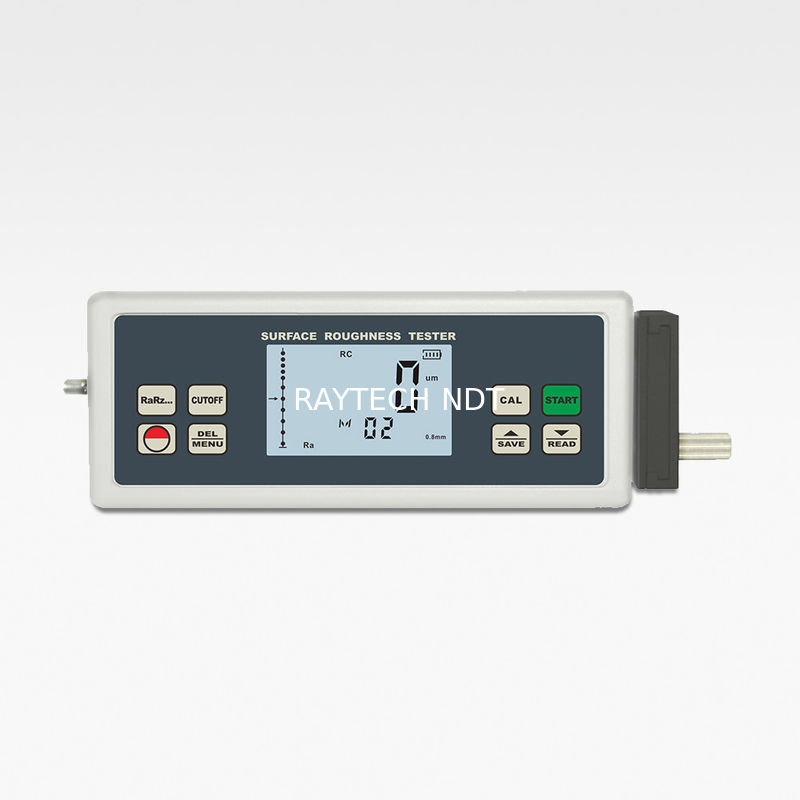

Surface Roughness Tester Portable, roughness measuring instrument, Ra Rz SRT150
Product Description
The Surface Roughness Tester is widely used in production site to measure surface roughness of
various machinery-processed parts, calculate corresponding parameters according to selected
measuring conditions and clearly display all measurement parameters.
Product Feature
* Be compatible with four standards of ISO, DIN, ANSI and JIS. When measuring the roughness
of a surface, the sensor is placed on the surface and then uniformly slides along the surface by
driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp
built-in probe. This roughness causes displacement of the probe which results in change of
inductive amount of induction coils so as to generate analogue signal, which is in proportion to
the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes
and calculates and then outputs the measurement results on LCD.
* Multiple parameter measurement: Ra, Rz, .
* Highly sophisticated inductance sensor.
* Built-in lithium ion rechargeable battery and control circuit with high capacity.
* Small in size, light in weight and easy to use.
*Manual or automatic shut down.
* Metric /Imperial Conversion.
* Use USB data output with connection PC.
* Provide Bluetooth data output choice.
Product Parameters
Measuring Range | Ra,:0.05~10.00 um / 1.000~400.0 uinch | |
Rz,:0.020~100.0 um / 0.780~4000 uinch | ||
Accuracy | Not more than ±10% | |
Fluctuation of display value | Not more than 6% | |
Resolution | 0.001μm, 0.01μm, 0.1μm | |
Probe | Radius | 10μm |
Material | Diamond | |
Measurement Force | 16mN(1.6gf) | |
Angle | 90° | |
Vertical Radius | 48mm | |
Maximum Driving Stroke | 17.5mm/0.7inch | |
Cutoff Length | 0.25mm, 0.8mm, 2.5mm | |
Driving Speed |
Measuring |
Sampling Length: 0.25mm Vt: 0.135mm/s |
Sampling Length: 0.8mm Vt: 0.5mm/s | ||
Sampling Length: 2.5mm Vt: 1mm/s | ||
Returning | Vt=1mm/s | |
Evaluation length | 1~5L optional | |
Power Supply | Built-in rechargeable Li-ion battery | |
Size | 140x52x48 mm | |
Weight | 420 g (Not including batteries) |
Product Accessories
Standard Accessories |
Main Unit |
Small Screwdriver | |
Standard Boilerplate | |
Standard Sensors, | |
Carrying Case | |
Operation Manual | |
Optional Accessories |
USB data output |
RS-232 data output | |
Bluetooth™ data output |
TAG: Surface roughness Tester Digital USB Blutooth Surface roughness Gauge
