X-ray pipeline crawlers, X ray flaw detector for long pipe, X ray pipeline crawler RXPC-100A

China X-ray pipeline crawlers, X ray flaw detector for long pipe, X ray pipeline crawler RXPC-100A supplier
X-ray pipeline crawlers, X ray flaw detector for long pipe, X ray pipeline crawler RXPC-100A supplier X-ray pipeline crawlers, X ray flaw detector for long pipe, X ray pipeline crawler RXPC-100A supplier X-ray pipeline crawlers, X ray flaw detector for long pipe, X ray pipeline crawler RXPC-100A supplier

Large Image :  X-ray pipeline crawlers, X ray flaw detector for long pipe, X ray pipeline crawler RXPC-100A

Product Details:

Place of Origin: China
Brand Name: Raytech
Certification: ISO CE
Model Number: RXPC-100A

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: Standard Export Carton
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 100units per month
Contact Now
Detailed Product Description
Product Name: X-ray Pipeline Crawlers, X Ray Flaw Detector For Long Pipe, X Ray Pipeline Crawler Pipe Diameter Detecting Range: Φ800—Φ1500mm
Crawler Length: 2200mm Creeping Speed: 15M/min
Creeping Distance: 2KM Exposure Time: 1s~1h Continues Adjustable
Exposure Voltage: 5 Selection Total Weight: 140kgs



X-ray pipeline crawlers, X ray flaw detector for long pipe,

X ray pipeline crawler RXPC-100A


X-ray pipeline crawlers, X ray flaw detector for long pipe, X ray pipeline crawler RXPC-100A

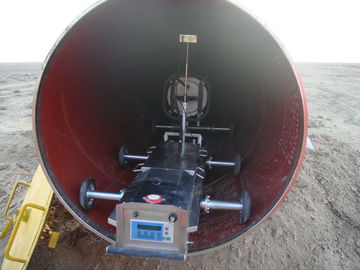

The X-ray pipeline crawlers include the special part that can detect the welding line of long

pipeline. The X-ray pipeline crawlers have the advantages of high radiographic quality, high

imaging sensitivity, low failure rate and high work efficiency. The X-ray pipeline crawlers have

differential driving and vibration absorbers. The chassis of the X-ray pipeline crawlers can be

moved in the pipeline steadily without off center running and overturning. The X-ray pipeline

crawlers can be moved in the pipeline with great efficiency because it is controlled by PLC with

protecting it from blocking and under voltage. The X-ray pipeline crawler is easy to be separated

into several parts and then to be put together, so it is easy to carry. You can change the exposure

parameter and make the X-ray pipeline crawler move, stop and have an exposure with the

exterior controlling source. The X-ray pipeline crawlers are easy to operate.


Specification of X Ray Pipeline Crawler



Model

Specification


RXPC-100ARXPC-100BRXPC-100C


Pipe diameter detecting range


Φ800—Φ1500mmΦ380—Φ1016mmΦ273—Φ700mm


Total weight


140KG125KG100KG


Crawler length


2200mm2000mm2000mm


Creeping speed


15M/min16-18M/min15M/min


Creeping distance


2KM2KM2KM


Locating error


±5mm±5mm±5mm


Max.output voltage


300Kv250Kv200Kv


Max.outout current


3mA3mA3mA


Climbing ability


40°40°25°


Radiation angle


360°*35°360°*35°360°*35°


Output power


1.5KW1.25KW1KW


Battery energy


22Ah/120V17Ah/120V12Ah/120V


Motor power


300W300W200W


Exposure time


1s~1h continues adjustable1s~1h continues adjustable1s~1h continues adjustable


Exposure voltage


5 selection5 selection5 selection


Operation temperature


-30°~ 70°-30°~ 70°-30°~ 70°


The crawler include below parts as standard accessories:

Main vehicle

Lead acid pile: 110V(22Ah)

X-ray machine: 250KV/5mA

Instruction source
