Detailed Product Description
Product Name: ASTM E747, IQI, Wire Penetrameter, Industrial X Ray Inspection Equipment,x Ray Weld Inspection Materical: 1-FE, 01-Ti, 02-Al, 03-Mg, 3-Ni, 4-Cu
Standard: Europe Standard Etc Type 1: EN 462-2 Stepwedge/Hole Type Penetrameters
Type 2: DIN 54 109 Wire Type Image Quality Indicators Type 3: ASTM E747 Wire Type Penetrameters

 ASTM E747, IQI, Wire Penetrameter, industrial x ray inspection equipment,x ray weld inspection

ASTM E747, IQI, Wire Penetrameter, industrial x ray inspection equipment,x ray weld inspection

DIN 54 109 Wire Type Image Quality Indicators are similar to the EN 462-1
 I.Q.I’s, the wire diameters are the same, and there are the same wire
numbers in each size of indicator. The only difference being that the lead
monogram reads DIN rather than EN.
Example:
Size 6Wire numbers 6 to 12) in Stainless Steel(SS) would be 6 DIN SS.
ASTM E747, IQI, Wire Penetrameter, industrial x ray inspection equipment,x ray weld inspection
EN 462-2 Stepwedge/Hole Type Penetrameters
Stepwedge in shape and available in four Model Numbers H5, H9 and H13 in Steel.

Model No. Stepwedge Range Material Thickness
H5 0.32 to 1mm 16 to 50mm
H9 0.8 to 2.5mm 40 to 125mm
H13 2 TO 6.3mm 100 to 315mm

ASTM E747, IQI, Wire Penetrameter, industrial x ray inspection equipment,x ray weld inspection     ASTM E747, IQI, Wire Penetrameter, industrial x ray inspection equipment,x ray weld inspection    ASTM E747, IQI, Wire Penetrameter, industrial x ray inspection equipment,x ray weld inspection        ASTM E747, IQI, Wire Penetrameter, industrial x ray inspection equipment,x ray weld inspection

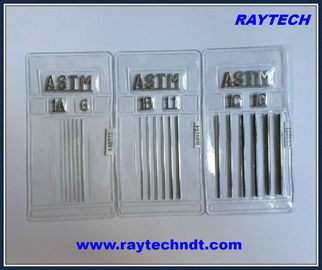

 ASTM E747 Wire Type Penetrameters consists of a series of six parallel wires of different
thicknesses,encapsulated between two thin sheets of transparent, flexible PVC. Lead characters
identify the thickness of the thickest wire, and the material group(1-FE, 01-Ti, 02-Al, 03-Mg, 3-Ni,
4-Cu). The letters ASTM are also included.
